TH Tangential Inlet/Right Angle
1 / 2 PagesView full catalog

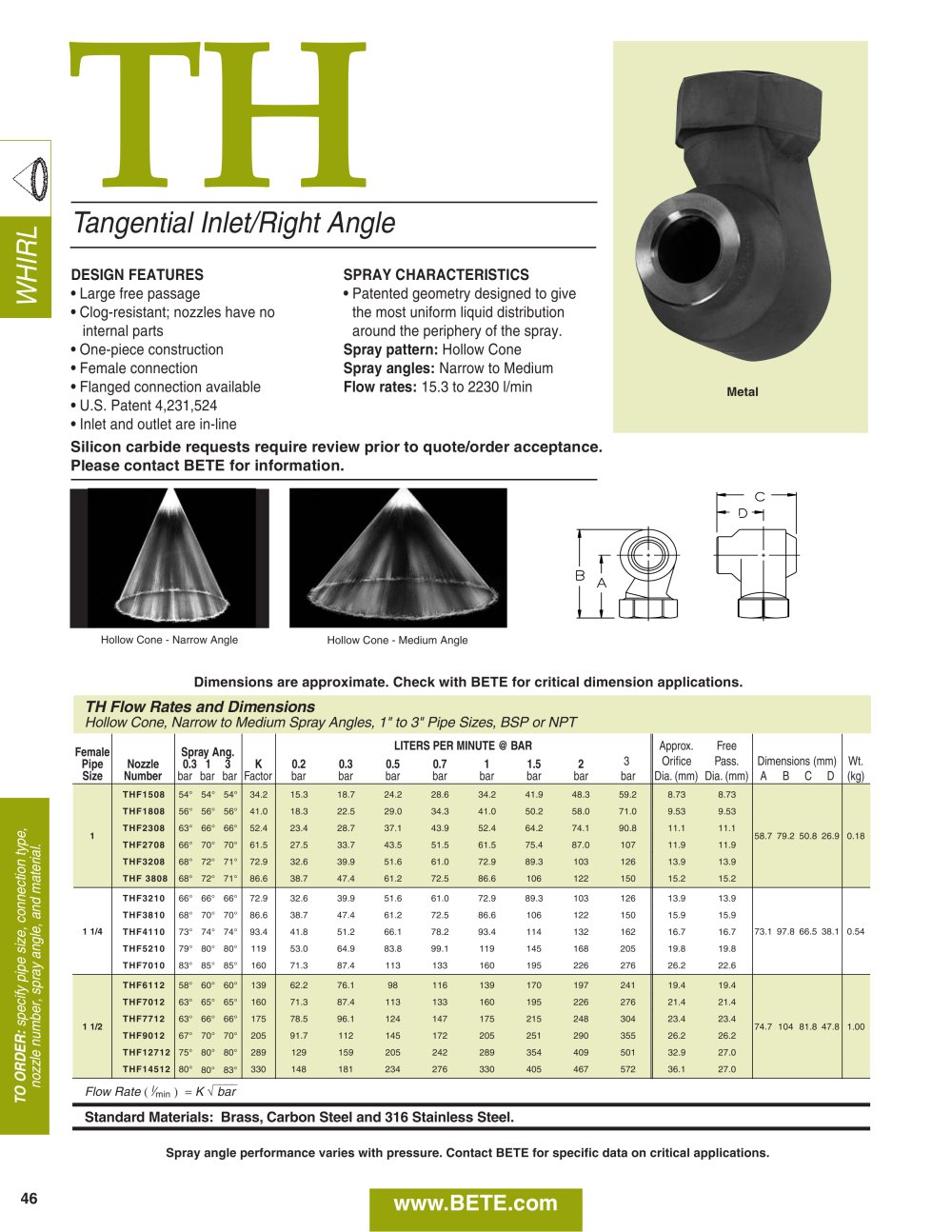

TH Tangential Inlet/Right Angle
Product catalog summary
Overview: This document provides technical specifications for WHIRL TH series nozzles, focusing on flow rates and dimensions for hollow cone spray patterns with narrow to medium spray angles. The nozzles are available in pipe sizes ranging from 1" to 3", with BSP or NPT female connections.
Specifications:
- Spray Angles: Vary from 54° to 95° depending on the nozzle model and pressure.
- Flow Rates: Range from 15.3 to 2230 liters per minute, influenced by the pressure (bar) and nozzle type.
- Materials: Standard materials include Brass, Carbon Steel, and 316 Stainless Steel. Silicon carbide is available upon review.
- Design Features: Nozzles feature a large free passage, are clog-resistant with no internal parts, and have a one-piece construction. They offer both female and flanged connections.
- Patented Design: The patented geometry ensures uniform liquid distribution around the spray's periphery.
Procedures and Recommendations:
- For effective distribution in multiple nozzle arrays, BETE junction boxes are recommended.
- Spray angle performance varies with pressure; specific data should be obtained from BETE for critical applications.
- Dimensions are approximate and should be verified with BETE for critical applications.
Key Data from Tables:
- Flow rates and spray angles are provided for various nozzle models, with specific dimensions and weights listed for each.
- The flow rate formula is given as: Flow Rate (l/min) = K √bar, where K is a factor specific to each nozzle model.
Contact Information: For further details or to place an order, contact BETE at 413-772-0846 or visit their website at www.BETE.com.
