TD/TD-K

TD/TD-K

Product catalog summary

Overview: The document provides detailed specifications and features of the Twist & Dry™ (TD-K) nozzle system, designed for the spray dryer industry. It highlights the system's ability to operate at high pressures, up to 689 bar, and its innovative patented locking mechanism for easy maintenance and component change-out.

Design Features: The TD-K nozzle system includes a patented locking mechanism for quick maintenance, interchangeable swirl and orifice discs for variable patterns and flow rates, and is available with female-threaded or butt weld pipe connections. It supports orifice sizes ranging from 0.864mm to 3.99mm and is constructed from materials like 316 Stainless Steel and Tungsten Carbide, with options for high-temperature applications.

Spray Characteristics: The system offers hollow cone spray patterns with angles ranging from 50° to 80° and flow rates between 35.3 to 5,970 liters per hour. The spray angle and flow rate are determined by the combination of swirl and orifice discs.

Performance and Materials: The TD-K series includes models rated up to 689 bar, with materials such as Viton® O-rings and PEEK backup rings for high-temperature resistance. The system is designed for easy assembly without special tools and features a robust design to minimize breakage.

Applications and Customization: The Twist & Dry™ system is customizable with nearly 1,000 combinations of swirl and orifice discs to meet specific flow rate and angle requirements. It is suitable for high-pressure applications, enhancing yield and cost-efficiency in spray drying processes.

Ordering Information: To order, specify the pipe size, connection type, nozzle number, and material. The document provides a detailed guide on selecting the appropriate components based on pressure and temperature requirements.

Catalog excerpts

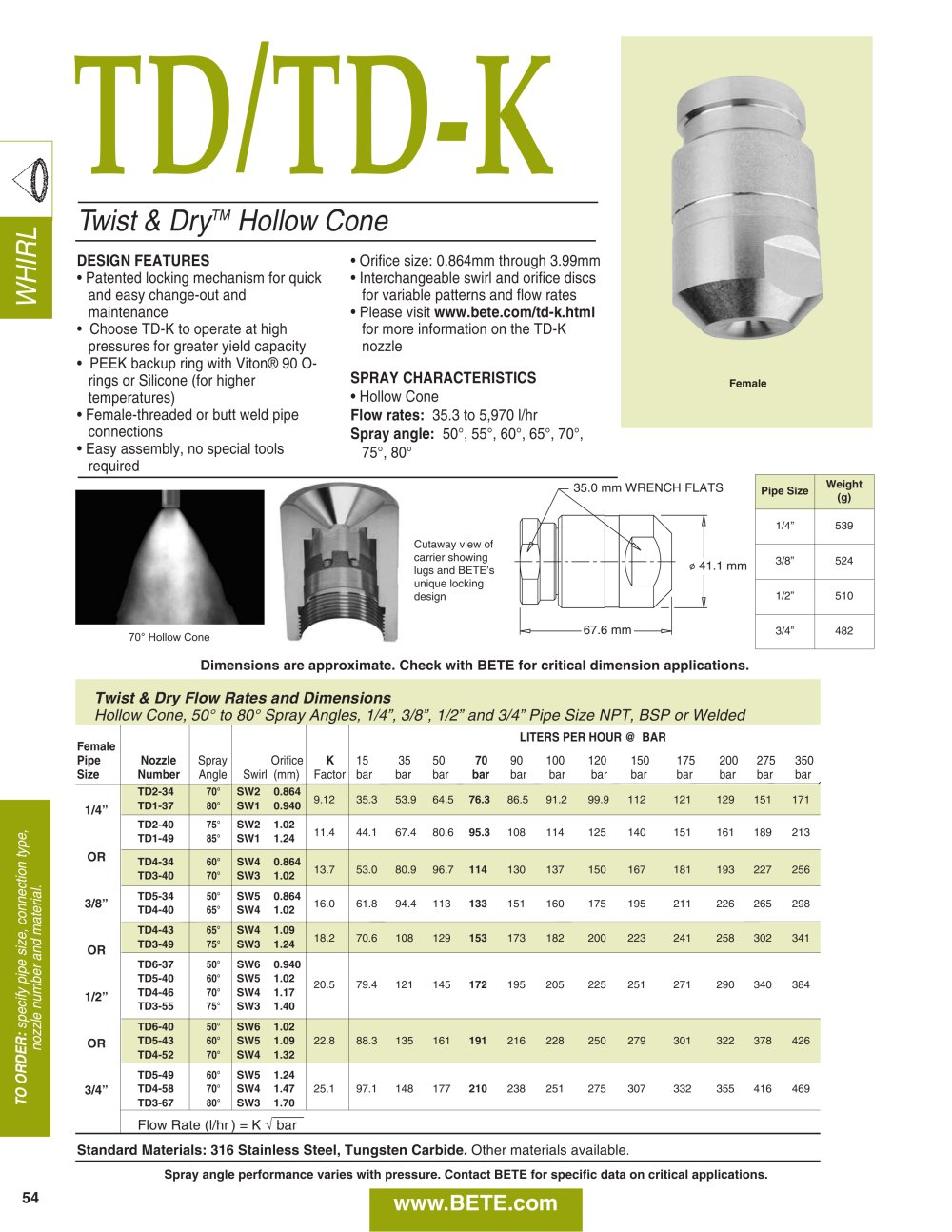

Pipe Size Weight(g) 1/4Д 539 Cutaway view of carrier showing lugs and BETEs unique locking design >

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:10.50pt "Arial", sans-serif; } .font5 { font:12.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Arial", sans-serif; } .font7 { font:16.00pt "Arial", sans-serif; } .font8 { font:9.00pt "Palatino Linotype", serif; } .font9 { font:10.00pt "Palatino Linotype", serif; } .font10 { font:55.00pt "Palatino Linotype", serif; } Iwist & UryiM Twist & DryTM Component...

Open the catalog to page 3

erusserP)C051( Fа203 ot puerutarepmeT isprabK01 DTK01 DTK01 DT000,01986 F004 ot pu )Cа402( F054 ot pu )Cа232( WHIRL 9 notiV5022 xelpuD ni reirraC5022 xelpuD ni reirraC5022 xelpuD ni reirraC gniR pukcaB KEEP /w gnir-O enociliS gniR pukcaB KEEP /w gnir-O 09 notiV gniR pukcaB KEEP /w gnir-O 0 ni elbaliava ylno K01 DT 11 dna 5 sreirraC ni elbaliava ylno K01 DT11 dna 5 sreirraC ni elbaliava ylno K01 DT11 dna 5 sreirraC K7 DTK7 DTK7 DT000,7384 otiV gniR pukcaB KEEP /w gnir-O enociliSgniR pukcaB KEEP /w gnir-O 09 notiVgniR pukcaB KEEP /w gnir-O 09 n DT670,5053 gnir-O 09 notiV DT005,3142 gnir-O 09 notiV...

Open the catalog to page 4
