X152T

Product catalog summary

Overview: The X-152T is an ultra-slim industrial panel PC with a thickness of 56mm, designed for fanless operation. It is equipped with an Intel Celeron M 1G processor and a Disk on Module (DOM) for storage. The system is compliant with CE, FCC, MIC certifications, and RoHS standards.

Specifications:

Model Name: X-152T
Display: 15” LG TFT LCD with a resolution of 1024 x 768
Processor: Intel mobile Celeron 1G
Memory: 512MB DDR (expandable to 1GB)
Storage: Flash disk options from 4G to 8G, with an optional 80G HDD
Networking: 10/100 Base-T Ethernet interface
Serial Ports: 2 x RS232 (one configurable to RS232/422/485)
Additional Ports: 4 x USB 2.0, 1 x VGA
Internal Ports: DIO (8 channels), Printer (1 x 16 pin)
Operating Temperature: -5°C to 55°C
Power Input: DC12V 5A, with an adapter for AC90~264V, 50~60Hz, 60W
Touch Screen: 5-wire analog resistive with RS232 interface
Weight: 5.5 kg
Dimensions: 359.4(W) x 268.4(H) x 56mm(D)

Features: The panel PC features a 5-wire resistive touch screen, making it suitable for industrial applications where durability and precision are required.

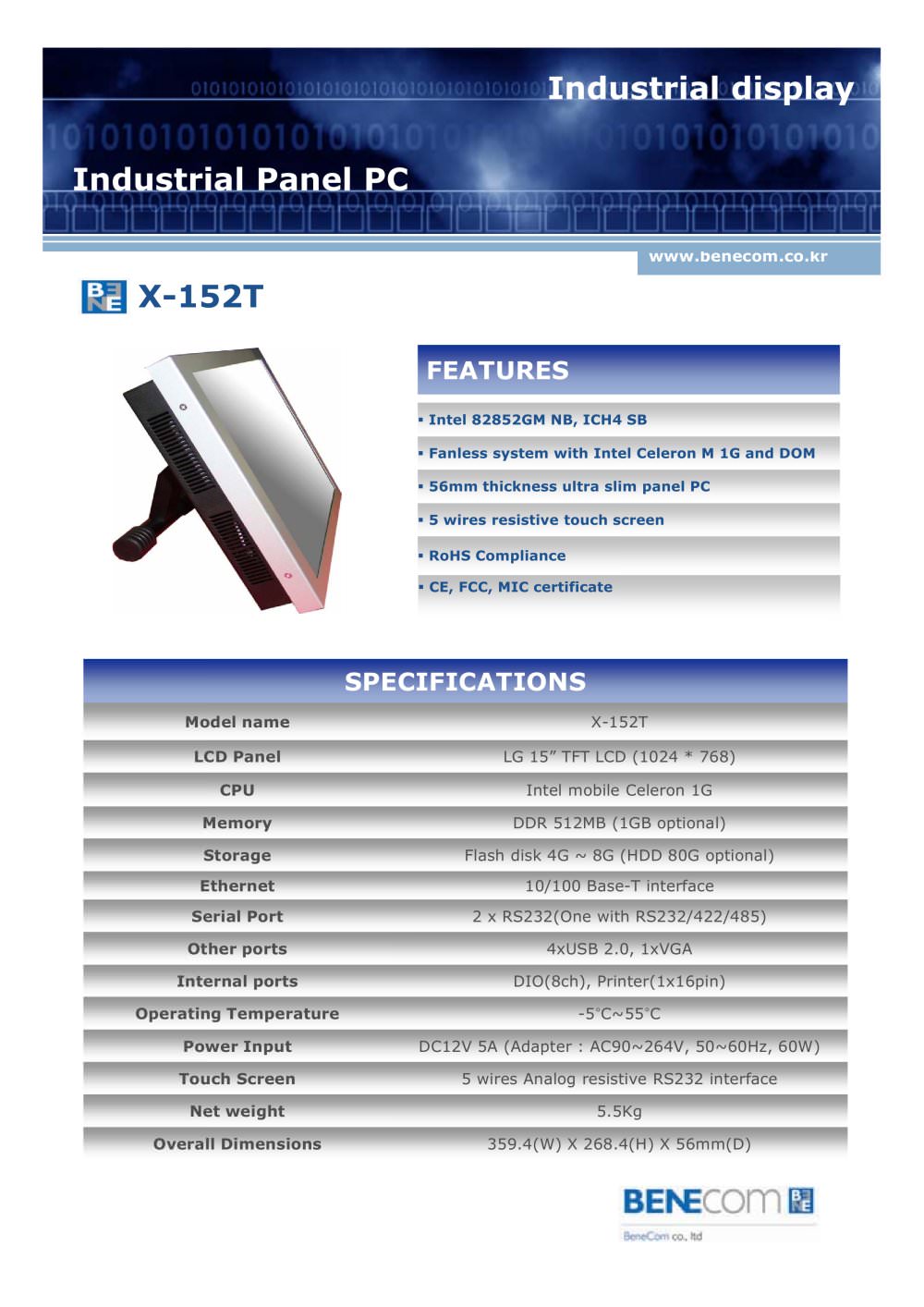

Catalog excerpts

Intel 82852GM NB, ICH4 SB Fanlesssystem with Intel Celeron M 1G and DOM 56mm thickness ultra slim panel PC 5 wires resistive touch screen RoHSCompliance CE, FCC, MIC certificate Model name X-152T LCD Panel LG 15 TFT LCD (1024 * 768) CPU Intel mobile Celeron 1G Memory DDR 512MB (1GB optional) Storage Flash disk 4G ~ 8G (HDD 80G optional) Ethernet 10/100 Base-T interface Serial Port 2 x RS232(One with RS232/422/485) Other p p orts 4xUSB 2.0 , , 1xVGA Internal ports DIO(8ch), Printer(1x16pin) Operating Temperature -5 Զ C~55 C Power Input DC12V 5A (Adapter : AC90~264V, 50~60Hz, 60W) Touch Screen 5 wires Analog resistive RS232 interface Nt iht N e t we i g ht 55K 5 . 5K g Overall Dimensions 359.4(W) X 268.4(H) X 56mm(D) >
