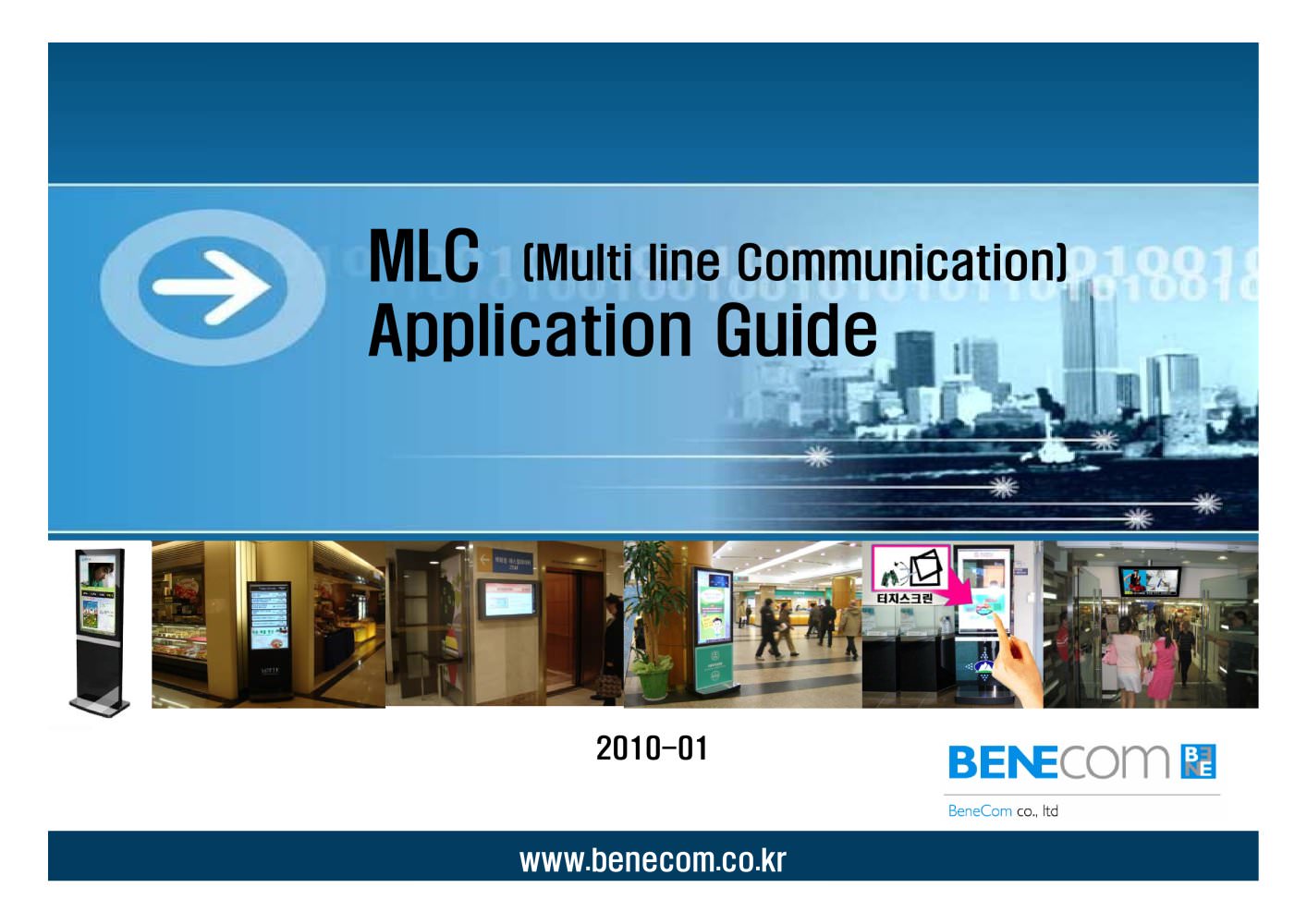

MLC (Multi line Communication) Application Guide 2010-01 www.benecom.co.kr

MLC is convenient and easy Net work solution for various applications using wires line like telephone, interphone line and so on. With MLC, it is very sure to save time and installation cost. Easy Installation MLC saves time and cost as it could link though 2Wires cable which is already installed such as telephone line, speaker line and on Flexible Network 1 to 1 and 1 to N Network so on. Copyright 2010 DMZero1 All right reserved. www.benecom.co.kr

1. Introduction 1 I d i f .. MLC can transmit Ethernet data and normal phone data together at the same 1. Introduction of MLC of phone line (0.8mm TIV cable, Interphone line, Normal telephone line, coaxial .. MLC can transmit maximum up to 1.6Km distance. .. MLC provides constant velocity without any confliction like wireless LAN nor power consumption like Power line Modem. General Use (Building / Home network) Industrial Use (Plant / vessel) • Max. Transmit : • Max Transmit : - 400M • Phone connector includes - Available to use High speed LAN and Telephone together at the same time - 1600M •...

Advantage of MLC (Multi Line Communication) 1 Longer transmit distance .. Previous Ethernet Cable and Wireless LAN could not support over 100M. But MLC with constant data transmit velocity. Easy install and save time and cost .. Using pre-installed phone line or interphone line, MLC link is very easy. .. telephone many 2 MLC has been proved in the field of Korean telephone, elevator companies and . 3 M o r e e f fi c i e n t a n d o v e r c ome Power line Modem and Wireless LAN .. MLC has no noise affection like wireless or no transmit speed down like power line modem. .. MLC provides stable...

A case of Net work install with MLC Using interphone line at home or building ETHERNET ETHERNET Manager PC TIV /Interphone Line Telephone line PABX • Copyright 2010 DMZero1 All right reserved. MLC can link via any cable like telephone, interphone, Coaxial cable regardless AC/DC power input. www.benecom.co.kr

2. Network solution Network solution using MLC to control LOCAL area MLC MLC MLC MLC MLC MLC SWITCH Manager PC • Copyright 2010 DMZero1 All right reserved. www.benecom.co.kr MLC check and manage IP • MLC is 100Mbps

3. Elevator installation Easy installation on elevator with MLC Control center ETHERNET Display MLC Manager PC Copyright 2010 DMZero1 All right reserved. www.benecom.co.kr

Case of MLC network for IP Camera and DID Security PC MLC MLC Switch TIV /Interphone line Manager PC ETHERNET Phone Copyright 2010 DMZero1 All right reserved. www.benecom.co.kr

1:1 MLC Setting Phone cable / interphone cable Phone cable / Interphone cable Operating • MLC can use pre-installed phone line and it dose not influenced by telephone. • If there is reserved line, MLC can use reserved line. Copyright 2010 DMZero1 All right reserved. www.benecom.co.kr

1 : N MLC Setting Phone cable / Interphone cable Phone cable / Interphone cable Elevator #1 Operating Elevator #N Copyright 2010 DMZero1 All right reserved. www.benecom.co.kr

Comparing of installation in case of elevator Previous installation MLC System Cable installing Cable tray installation Elevator inside Arrange the cables MLC • Long time for installation cable • Need much Cost • Link MLC on inside elevator • Link MLC on Machine room • No need to install cable • Save time, easy mainerance Copyright 2010 DMZero1 All right reserved. • Elevator hs to be stop longer time www.benecom.co.kr

4. Merit of MLC Comparing with other solutions ITEM MLC Wireless LAN Power line Modem Transmit meterial Any 2 Wire cable No wire Power Line Transmit speed Up to 100Mbps Up to 100 Mbps Up to 80 Mbps Distance of Transmit Up to 1600m Up to 200m (Depends on environment) Up to 200m Standard Domestic Standard IEEE802.11b/a/g/n Home Plug Voice data transmit Yes No No Copyright 2010 DMZero1 All right reserved.

Specification of MLC Ç× ¸ñ ³» ¿ë Interface LAN1, LAN2, LINE, PWR LED LAN1, LAN2, ACT, PWR Out figure Power KT standard adapter (5V/2A) Size 110mm x 90mm x 25mm Case material ABS(ate a S(Normal type) / steel (Industrial type) Transmit velocity TCP 25M (Normal type) , TCP 75M (Industrial C tibilit ADSL OK to Link Compatibility VDSL OK to Link ONT OK to Link Surge Protection Surge Protection include (+/- 2KV ) Temperature Operating 0 Ž ~ 40 Ž Humidity : 20% ~ 80% Storage -5 Ž ~ 45 Ž Humidity : 5% ~ 95% Frequency 4 ~ 22Mhz Copyright 2010 DMZero1 All right reserved. Out put power -40 ~ -65dBm
