Din Rail mount Embedded small Box PC BPC-201

Product catalog summary

Overview: The BPC-201 is a rugged, fanless industrial box PC designed for environments requiring vibration and shock protection. It operates within a wide temperature range of 0 to 55°C.

Features: The system supports both Din rail and VESA mounting options, and is compact with dimensions of 170 x 47 x 110 mm. It includes Gigabit Ethernet and a digital I/O port, weighing 1.2 kg.

Specifications:

CPU: Intel N270 1.6GHz with 512K Cache
Chipset: Intel 945GSE/ICH7-M
Memory: DDR2 533 SODIMM 1GB, expandable to 2GB
LAN: 1 x RJ45 Gigabit Ethernet
Audio: Line-out, Mic-in
Storage: 1 x 2.5” SATA HDD or Compact Flash Type II
I/O Ports: DVI-I, 2 x COM (RS232/422/485), DIO x 1, eSATA x 1, 2 x USB, Audio (Line-out, Mic-in)
Operating Temperature: 0°C to 55°C
Storage Temperature: -40°C to 80°C
Power Input: 100~240V 50/60Hz, Output: 30W, 12V DC, 2.5A

Mechanical Drawing: The document includes front and rear mechanical drawings for installation reference.

Catalog excerpts

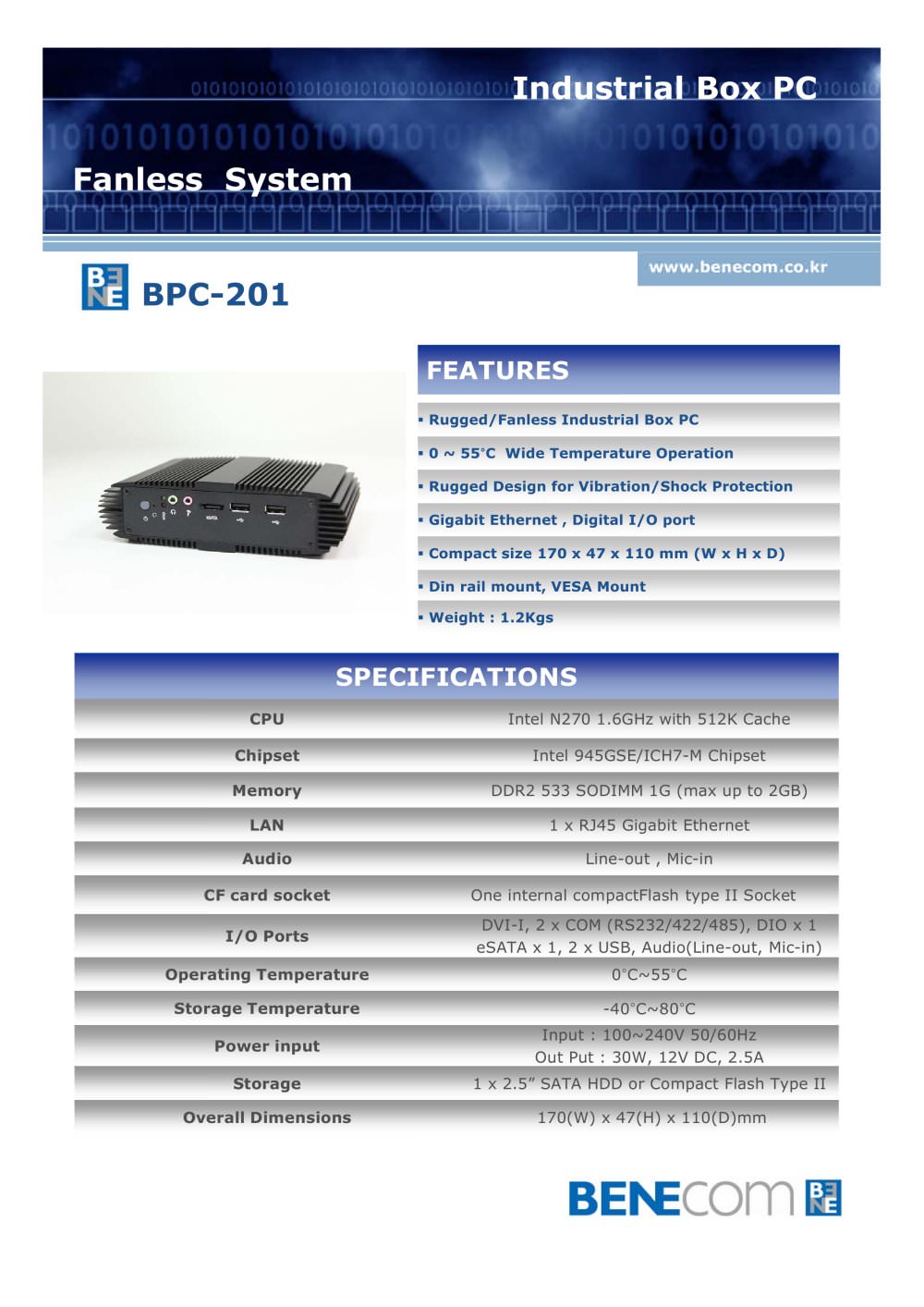

Din Rail mount Embedded small Box PC BPC-201-1

Fanless System Industrial Box PC www.benecom.co.kr BPC-201 .. Rugged Design for Vibration/Shock Protection .. 0 ~ 55°C Wide Temperature Operation .. Rugged/Fanless Industrial Box PC FEATURES .. Din rail mount, VESA Mount .. Compact size 170 x 47 x 110 mm (W x H x D) .. Gigabit Ethernet , Digital I/O port .. Weight : 1.2Kgs SPECIFICATIONS CPU Intel N270 1.6GHz with 512K Cache Chipset Intel 945GSE/ICH7-M Chipset Memory DDR2 533 SODIMM 1G (max up to 2GB) LAN 1 x RJ45 Gigabit Ethernet Audio Line-out , Mic-in CF card socket One internal compactFlash type II Socket I/O Ports DVI-I, 2 x COM (RS232/422/485), DIO x 1 eSATA x 1, 2 x USB, Audio(Line-out, Mic-in) Operating Temperature 0°C~55°C Storage Temperature -40°C~80°C Power input Input : 100~240V 50/60Hz Out Put : 30W, 12V DC, 2.5A Storage 1 x 2.5” SATA HDD or Compact Flash Type II Overall Dimensions 170(W) x 47(H) x 110(D)mm
