BPC-150RT

Product catalog summary

Overview
The BNC-150RT is a rugged, fanless industrial panel PC designed for harsh environments. It features a robust aluminum enclosure and supports dual display with IP65 rating for dust and waterproof protection on five sides.

Features

Rugged aluminum enclosure
Selectable mounting options: Stand, Panel (Cabinet), VESA
Wide temperature operating capability
CE and FCC compliance

Specifications

CPU: Intel Celeron M 423 1.0G/512K
Chipset: Intel 915GME/910GMLE+ICH6M
Memory: 1G DDR2 (expandable to 2GB)
LAN: 1 x RJ45 connector for 10/100 Base T Ethernet (1 Giga option)
Audio: AC97 codec with Amplifier
CF Card Socket: 1 (internal)
I/O Ports: VGA, IDE, 2 x COM (4 Pin header), 1 x E-SATA, 3 x USB 2.0 (Pin header 4)
Display: 15” TFT LCD, 1024x768, 250cd/m²
Touch Screen: Resistive touch
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Power Input: Wide range 12~24V DC/DC
Power Supply: VAC 100/240 Adaptor 60W
Dimensions: 376(W) x 292(H) x 60.6(D) mm

Mechanical Drawing
The document includes a mechanical drawing indicating the placement of E-SATA, LAN, VGA, COM, and USB 2.0 ports.

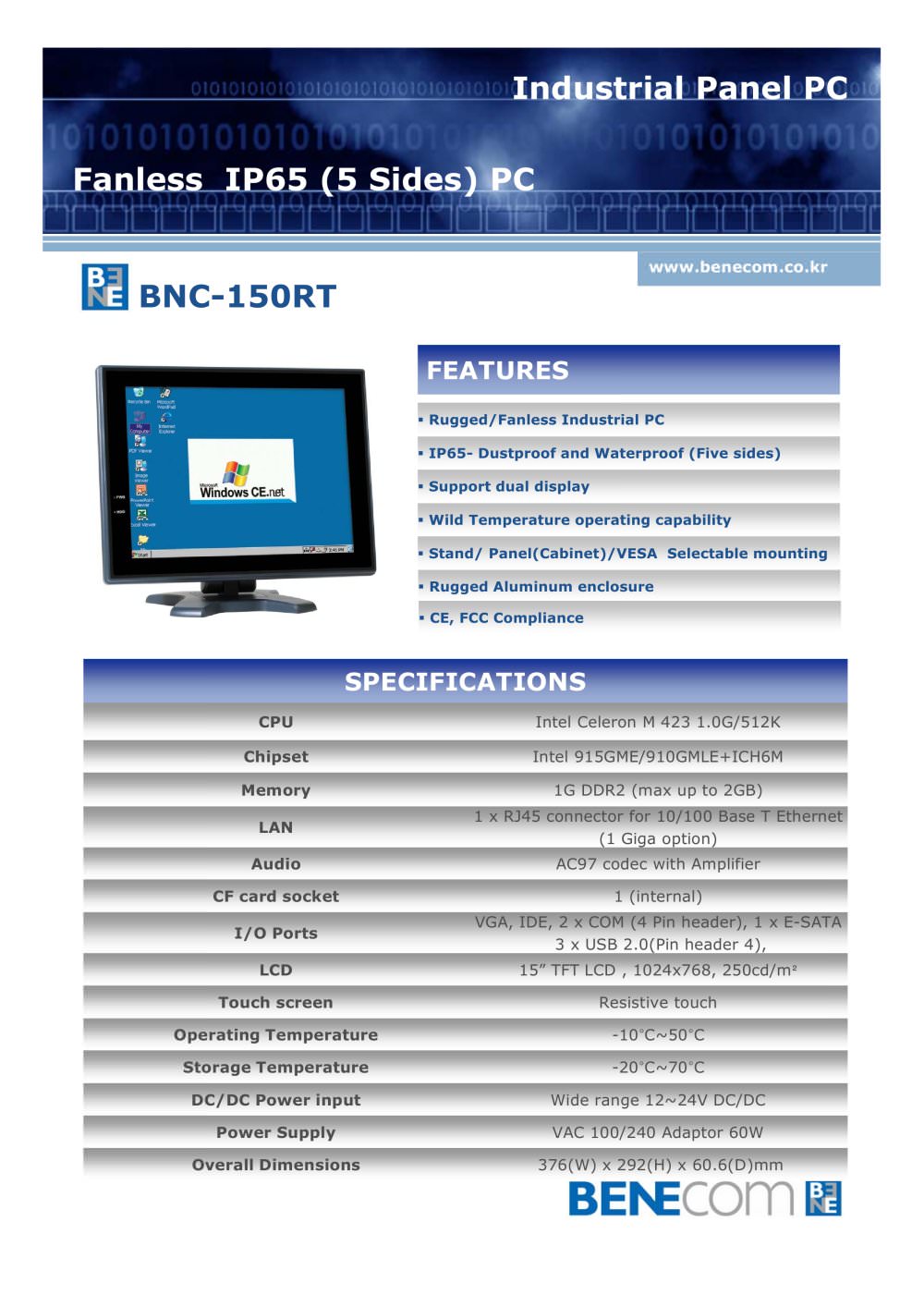

Catalog excerpts

Rugged/FanlessIndustrial PC IP65-Dustproof and Waterproof (Five sides) Support dual display Wild Temperature operating capability Stand/ Panel(Cabinet)/VESA Selectable mounting Rugged Aluminum enclosure CE, FCC Compliance CPU Intel Celeron M 423 1.0G/512K Chipset Intel 915GME/910GMLE+ICH6M Memory 1G DDR2 (max up to 2GB) LAN 1 x RJ45 connector for 10/100 Base T Ethernet(1 Giga option) Audio AC97 codec with Amplifier CF card socket 1 (internal) I/O Ports VGA, IDE, 2 x COM (4 Pin header), 1 x E-SATA3 x USB 2.0(Pin header 4), LCD 15 TFT LCD , 1024x768, 250cd/m Ը Touch screen Resistive touch Operating Temperature -10 C~50 ֶ C Storage Temperature -20 C~70 ֶ C DC / /p DC Power in p ut Wide ran g g/ e 12~24V DC / DC Power Supply VAC 100/240 Adaptor 60W Overall Dimensions 376(W) x 292(H) x 60.6(D)mm >
