BNC-A52T

Product catalog summary

Overview: The BNC-A52T is a slim 15” LCD panel PC designed for industrial applications. It features a 87mm thickness and is powered by an Intel Atom 1.6GHz processor.

Features: The device is RoHS compliant and includes a 5-wire resistive touch screen for user interaction.

Specifications:

Model Name: BNC-A52T
LCD Panel: 15” LG TFT LCD with a resolution of 1024 x 768
CPU: Intel Atom 1.6GHz
Memory: 1GB DDR2
Storage: 80GB SATA HDD
Ethernet: Two 10/100/1000 ports
Serial Ports: Three RS232 ports, with one supporting RS232/422/485
Other Ports: Four USB 2.0 ports and one VGA port
Operating Temperature: -5°C to 55°C
Power Input: 100~240V~/4~2A/50~60Hz
Touch Screen: 5-wire analog resistive with RS232 interface
Net Weight: 6.8Kg
Dimensions: 405mm (W) x 318mm (H) x 88mm (D)

Mechanical Drawing: The document includes a mechanical drawing of the I/O port layout, version 1.0.

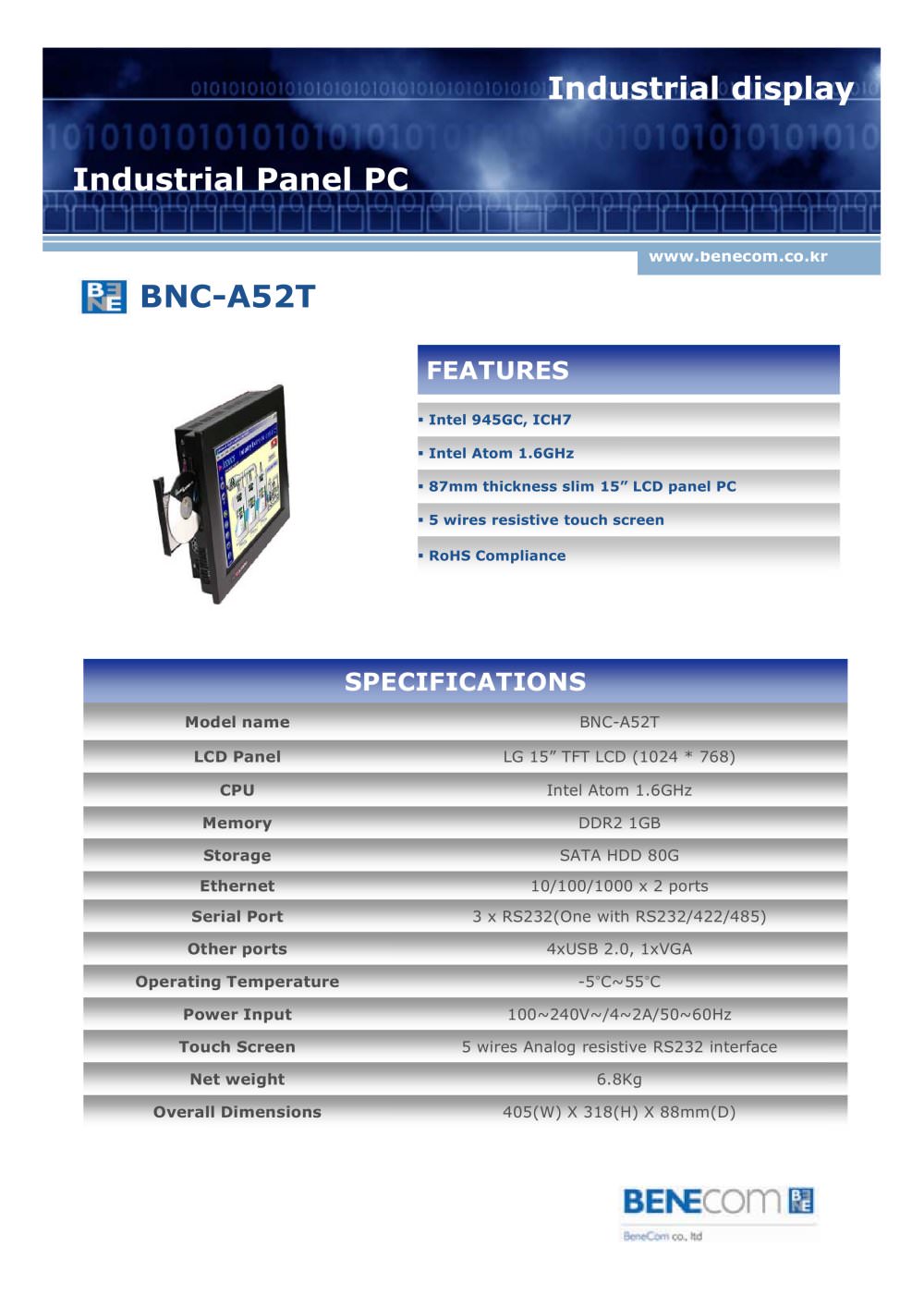

Catalog excerpts

Intel 945GC, ICH7 Intel Atom 1.6GHz 87mm thickness slim 15 LCD panel PC 5 wires resistive touch screen RoHSCompliance Model name BNC-A52T LCD Panel LG 15Ԕ TFT LCD (1024 * 768) CPU Intel Atom 1.6GHz Memory DDR2 1GB Storage SATA HDD 80G Ethernet 10/100/1000 x 2 ports Serial Port 3 x RS232(One with RS232/422/485) Other p p orts 4xUSB 2.0 , , 1xVGA Operating Temperature -5 C~55 ֶ C Power Input 100~240V~/4~2A/50~60Hz Touch Screen 5 wires Analog resistive RS232 interface Net weight 6.8Kg Oll Dii O vera ll Di mens i ons 405(W) X 318(H) X 88(D) 405(W) X 318(H) X 88 mm (D) >
