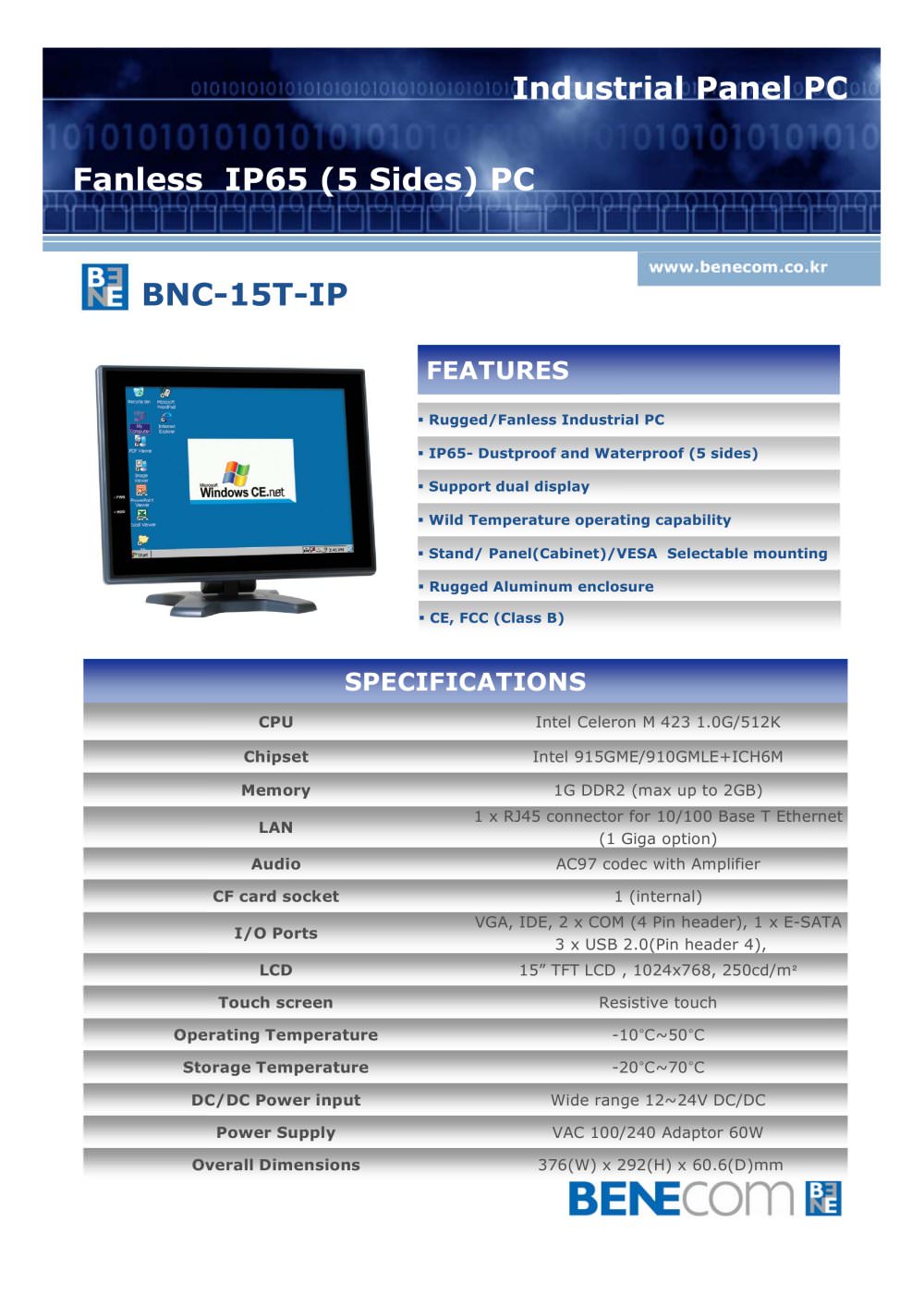

Fanless IP65 (5 Sides) PC Industrial Panel PC www.benecom.co.kr BNC-15T-IP .. Support dual display .. IP65- Dustproof and Waterproof (5 sides) .. Rugged/Fanless Industrial PC FEATURES .. Rugged Aluminum enclosure .. Stand/ Panel(Cabinet)/VESA Selectable mounting .. Wild Temperature operating capability .. CE, FCC (Class B) SPECIFICATIONS CPU Intel Celeron M 423 1.0G/512K Chipset Intel 915GME/910GMLE+ICH6M Memory 1G DDR2 (max up to 2GB) LAN 1 x RJ45 connector for 10/100 Base T Ethernet (1 Giga option) Audio AC97 codec with Amplifier CF card socket 1 (internal) I/O Ports VGA, IDE, 2 x COM (4 Pin header), 1 x E-SATA 3 x USB 2.0(Pin header 4), LCD 15” TFT LCD , 1024x768, 250cd/m² Touch screen Resistive touch Operating Temperature -10°C~50°C Storage Temperature -20°C~70°C DC/DC Power input Wide range 12~24V DC/DC Power Supply VAC 100/240 Adaptor 60W Overall Dimensions 376(W) x 292(H) x 60.6(D)mm

Fanless PLC PC Industrial Panel PC www.benecom.co.kr .. Mechanical Drawing E-SATA USB2.0 LAN VGA COM COM V1.0

Fanless IP65 (5 Sides) PC Industrial Panel PC www.benecom.co.kr Certificate and tests - EMI/EMS : CE, FCC (Class B) - RoHS compliant - Dust test : IEC/EN60529 IP5X (5sides) . Temperature 20~28°C . Humidity 35~75%RH - Splashing test : IEC/EN60529 IPx4 (5sides) . Time of complete oscillation 12sec. . Duration of test 10min. . Mean flow rate 0.07 liter/min . Total water flow : 1.8 liter/min . Tube radius 400mm - Free Drop test : IEC60068-2-32 . Equipment : Yoshida DT-100D . Drop Height : 76cm . Test on : 3 corners, 3 edges, 6 faces - Thermal test : Chamber 60°C , Duration 15h 20m - Vibration . 3...
