BNC-08T, Fanless 8" touch panel PC

Product catalog summary

Overview: The BNC-08T-C is an industrial panel PC featuring a slim design with a thickness of 55.8mm. It is equipped with an onboard Intel N270 1.6G CPU and utilizes the Intel 945GSE + ICH7-M chipset.

Features: The device includes an IP-65 compliant front panel and a 5-wire resistive touch screen with a USB interface, ensuring durability and ease of use in industrial environments.

Specifications:

Model Name: BNC-08T-C
Display: 8” TFT LCD with a resolution of 800 x 600 and a 4:3 aspect ratio
Memory: 1GB DDR
Storage: 8GB IDE Flash (DOM)
Networking: Dual Giga LAN compatible with 10/100/1000 Base-Tx
Serial Ports: 2 x RS232 (one configurable as RS232/422/485)
Other Ports: 4 x USB 2.0, 1 x VGA, Line-Out, 2 x RJ-45
Operating Temperature: 0°C to 45°C
Power Input: 100~240V/1.4A/50~60Hz via adapter
Touch Screen: 5-wire analog resistive USB interface
Net Weight: 2.5Kg
Dimensions: 254mm (W) x 167mm (H) x 55.8mm (D)

Mechanical Drawing: The document includes a mechanical drawing detailing the I/O ports, which consist of 1 x RS-232, 1 x RS-232/422/485, 2 x RJ-45 for LAN, 1 x VGA (DB 15), Line-out for audio, and 4 x USB 2.0 ports.

Catalog excerpts

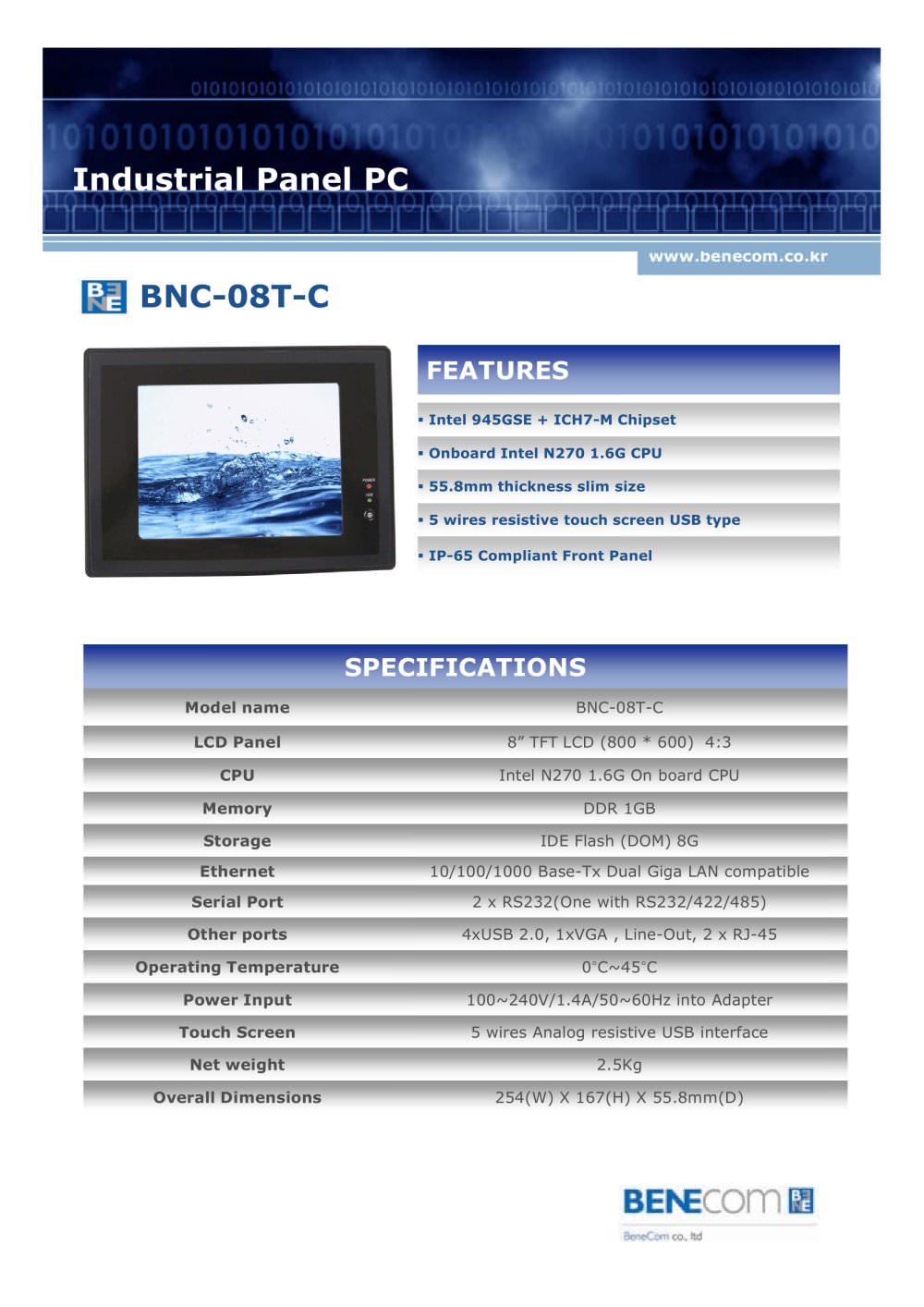

Industrial Panel PC www.benecom.co.kr BNC-08T-C .. 55.8mm thickness slim size .. Onboard Intel N270 1.6G CPU .. Intel 945GSE + ICH7-M Chipset FEATURES .. IP-65 Compliant Front Panel .. 5 wires resistive touch screen USB type SPECIFICATIONS Model name BNC-08T-C LCD Panel 8” TFT LCD (800 * 600) 4:3 CPU Intel N270 1.6G On board CPU Memory DDR 1GB Storage IDE Flash (DOM) 8G Ethernet 10/100/1000 Base-Tx Dual Giga LAN compatible Serial Port 2 x RS232(One with RS232/422/485) Other ports 4xUSB 2.0, 1xVGA , Line-Out, 2 x RJ-45 Operating Temperature 0°C~45°C Power Input 100~240V/1.4A/50~60Hz into Adapter Touch Screen 5 wires Analog resistive USB interface Net weight 2.5Kg Overall Dimensions 254(W) X 167(H) X 55.8mm(D)

Open the catalog to page 1

Industrial Panel PC www.benecom.co.kr .. Mechanical Drawing .. I/O Port .. COM : 1 x RS-232, 1 x RS-232/422/485 .. LAN : 2 x RJ-45 VGA 1 DB 15 V1.0 .. : x DB-.. Audio : Line-out .. USB : 4 x USB 2.0

Open the catalog to page 2
