19" Panel PC

Product catalog summary

Overview: The BNC-19T-700E is an industrial panel PC featuring a 19-inch TFT LCD display and is designed for robust industrial applications. It includes a PCI expansion slot and supports Intel Core2 Duo processors.

Features: The device is RoHS compliant and equipped with a 5-wire resistive touch screen, ensuring durability and precision in industrial environments.

Specifications:

Model Name: BNC-19T-700E
Display: 19” LG TFT LCD with a resolution of 1280 x 1024
CPU Options: Intel Core2 Duo E2160 (1.8GHz) or E4600 (2.4GHz)
Memory: DDR2, ranging from 1GB to 4GB
Storage: 80GB SATA HDD
Ethernet: 1 port 10/100/1000, with an option to expand with an additional 10/100 port
Serial Ports: 3 x RS232, with one port configurable as RS232/422/485
Other Ports: 2 x USB 2.0, 1 x VGA
Operating Temperature: -5°C to 55°C
Power Input: 100~240V~/4~2A/50~60Hz
Touch Screen: 5-wire analog resistive with RS232 interface
Net Weight: 8.2 kg
Dimensions: 434(W) x 376(H) x 126(D) mm

Mechanical Drawing: The document includes a mechanical drawing detailing the I/O port layout, ensuring easy integration into existing systems.

Catalog excerpts

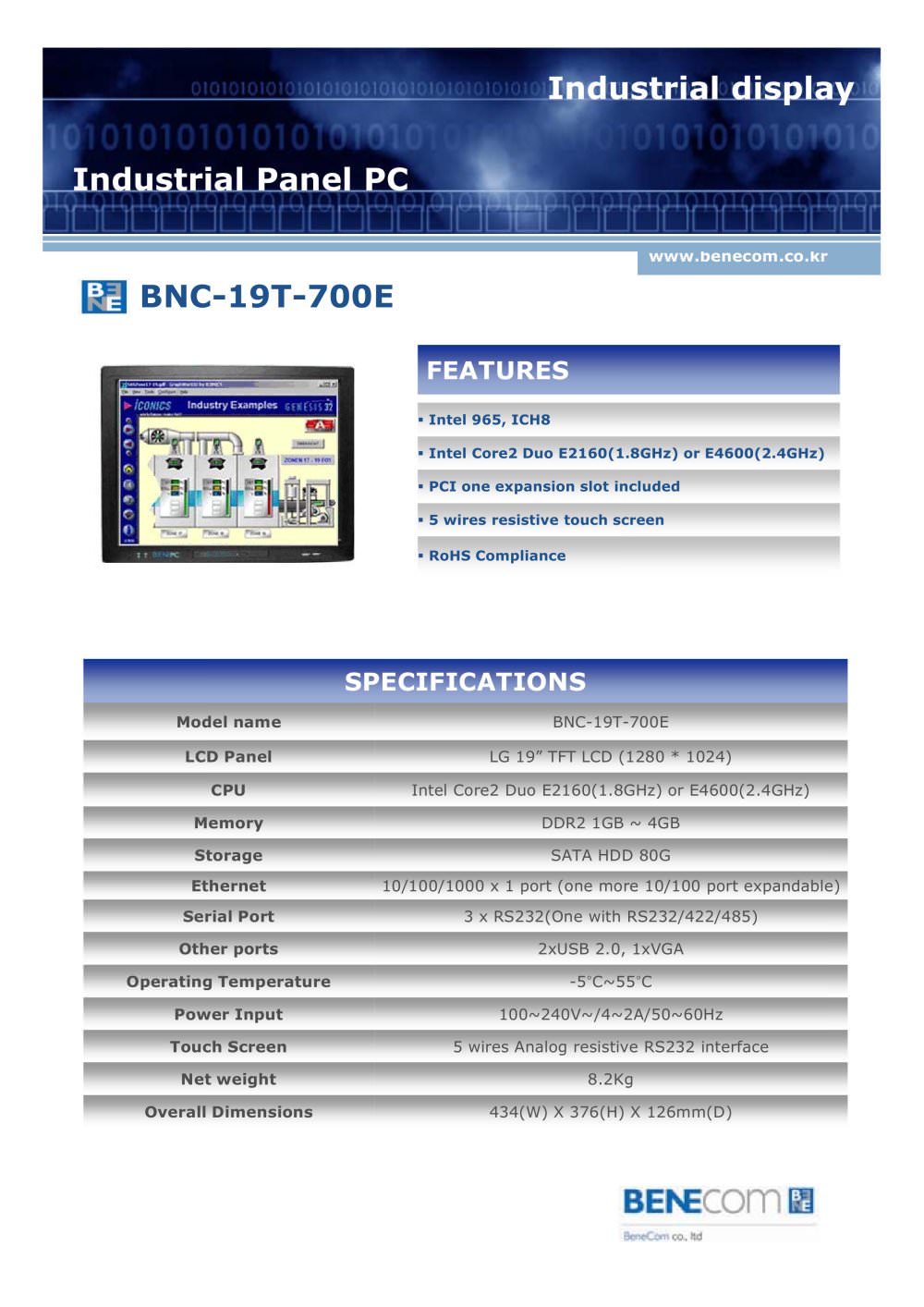

Intel 965, ICH8 Intel Core2 Duo E2160(1.8GHz) or E4600(2.4GHz) PCI one expansion slot included 5 wires resistive touch screen RoHSCompliance Model name BNC-19T-700E LCD Panel LG 19 TFT LCD (1280 * 1024) CPU Intel Core2 Duo E2160(1.8GHz) or E4600(2.4GHz) Memory DDR2 1GB ~ 4GB Storage SATA HDD 80G Ethernet 10/100/1000 x 1 port (one more 10/100 port expandable) Serial Port 3 x RS232(One with RS232/422/485) Other p p orts 2xUSB 2.0 , , 1xVGA Operating Temperature -5 Զ C~55 C Power Input 100~240V~/4~2A/50~60Hz Touch Screen 5 wires Analog resistive RS232 interface Net weight 8.2Kg Oll Dii O vera ll Di mens i ons 434(W) X 376(H) X 126(D) 434(W) X 376(H) X 126 mm (D) >
