17" Panel PC

Product catalog summary

Overview: The BNC-17T-700E is an industrial panel PC featuring a 17-inch LCD display with a thickness of 105mm. It is powered by an Intel Core2 Duo processor, available in two variants: E2160 (1.8GHz) or E4600 (2.4GHz). The device is designed for industrial applications, offering robust performance and compliance with RoHS standards.

Features: The panel PC includes a 5-wire resistive touch screen, providing reliable input options for industrial environments. It supports a range of operating temperatures from -5°C to 55°C, making it suitable for various industrial settings.

Specifications:

Model Name: BNC-17T-700E
Display: 17” LG TFT LCD with a resolution of 1280 x 1024
CPU: Intel Core2 Duo E2160 (1.8GHz) or E4600 (2.4GHz)
Memory: DDR2, ranging from 1GB to 4GB
Storage: 80GB SATA HDD
Ethernet: 10/100/1000 x 1 port, with an option to expand with an additional 10/100 port
Serial Ports: 3 x RS232 (one configurable as RS232/422/485)
Other Ports: 2 x USB 2.0, 1 x VGA
Power Input: 100~240V~/4~2A/50~60Hz
Touch Screen: 5-wire analog resistive with RS232 interface
Net Weight: 6.8Kg
Dimensions: 438mm (W) x 364mm (H) x 105mm (D)

Mechanical Drawing: The document includes a mechanical drawing of the I/O port layout, providing detailed information on the physical configuration of the device.

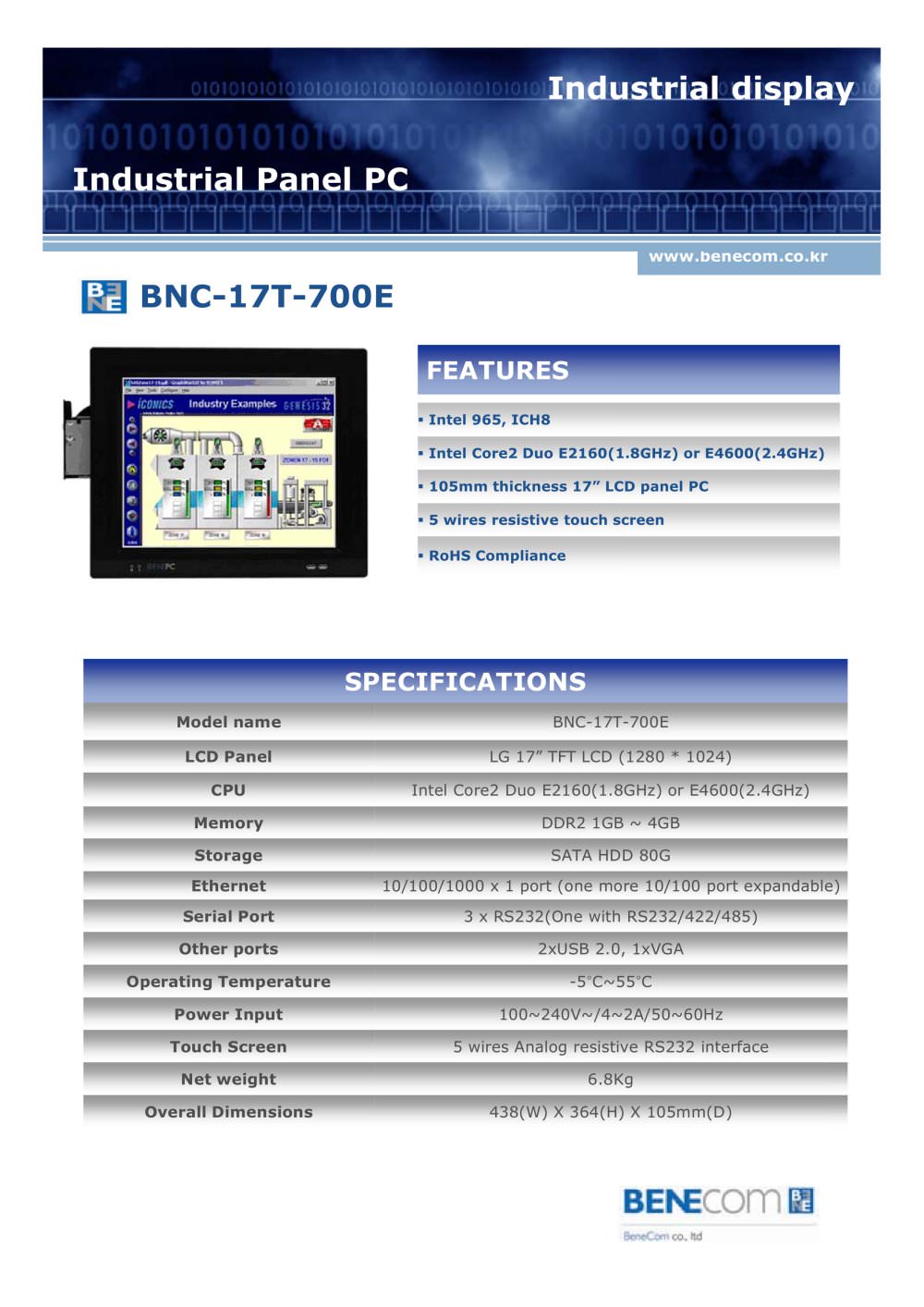

Catalog excerpts

Intel 965, ICH8 Intel Core2 Duo E2160(1.8GHz) or E4600(2.4GHz) 105mm thickness 17 LCD panel PC 5 wires resistive touch screen RoHSCompliance Model name BNC-17T-700E LCD Panel LG 17Ԕ TFT LCD (1280 * 1024) CPU Intel Core2 Duo E2160(1.8GHz) or E4600(2.4GHz) Memory DDR2 1GB ~ 4GB Storage SATA HDD 80G Ethernet 10/100/1000 x 1 port (one more 10/100 port expandable) Serial Port 3 x RS232(One with RS232/422/485) Other p p orts 2xUSB 2.0 , , 1xVGA Operating Temperature -5 C~55 ֶ C Power Input 100~240V~/4~2A/50~60Hz Touch Screen 5 wires Analog resistive RS232 interface Net weight 6.8Kg Oll Dii O vera ll Di mens i ons 438(W) X 364(H) X 105(D) 438(W) X 364(H) X 105 mm (D) >

Open the catalog to page 1
