15" Panel PC

Product catalog summary

Overview: The BNC-15T-700E is a slim 15” LCD panel PC designed for industrial applications. It features a thickness of 87mm and is equipped with an Intel Core2 Duo processor, offering options between E2160 (1.8GHz) and E4600 (2.4GHz).

Features: The panel PC complies with RoHS standards and includes a 5-wire resistive touch screen for user interaction.

Specifications:

Model Name: BNC-15T-700E
LCD Panel: 15” LG TFT LCD with a resolution of 1024 x 768
CPU: Intel Core2 Duo E2160 (1.8GHz) or E4600 (2.4GHz)
Memory: DDR2 ranging from 1GB to 4GB
Storage: 80GB SATA HDD
Ethernet: 1 port of 10/100/1000, with an option to expand with an additional 10/100 port
Serial Ports: 3 x RS232, with one port supporting RS232/422/485
Other Ports: 2 x USB 2.0, 1 x VGA
Operating Temperature: -5°C to 55°C
Power Input: 100~240V~/4~2A/50~60Hz
Touch Screen: 5-wire analog resistive with RS232 interface
Net Weight: 6.8Kg
Overall Dimensions: 405mm (W) x 318mm (H) x 87mm (D)

Mechanical Drawing: The document includes a mechanical drawing of the I/O port layout, version 1.0.

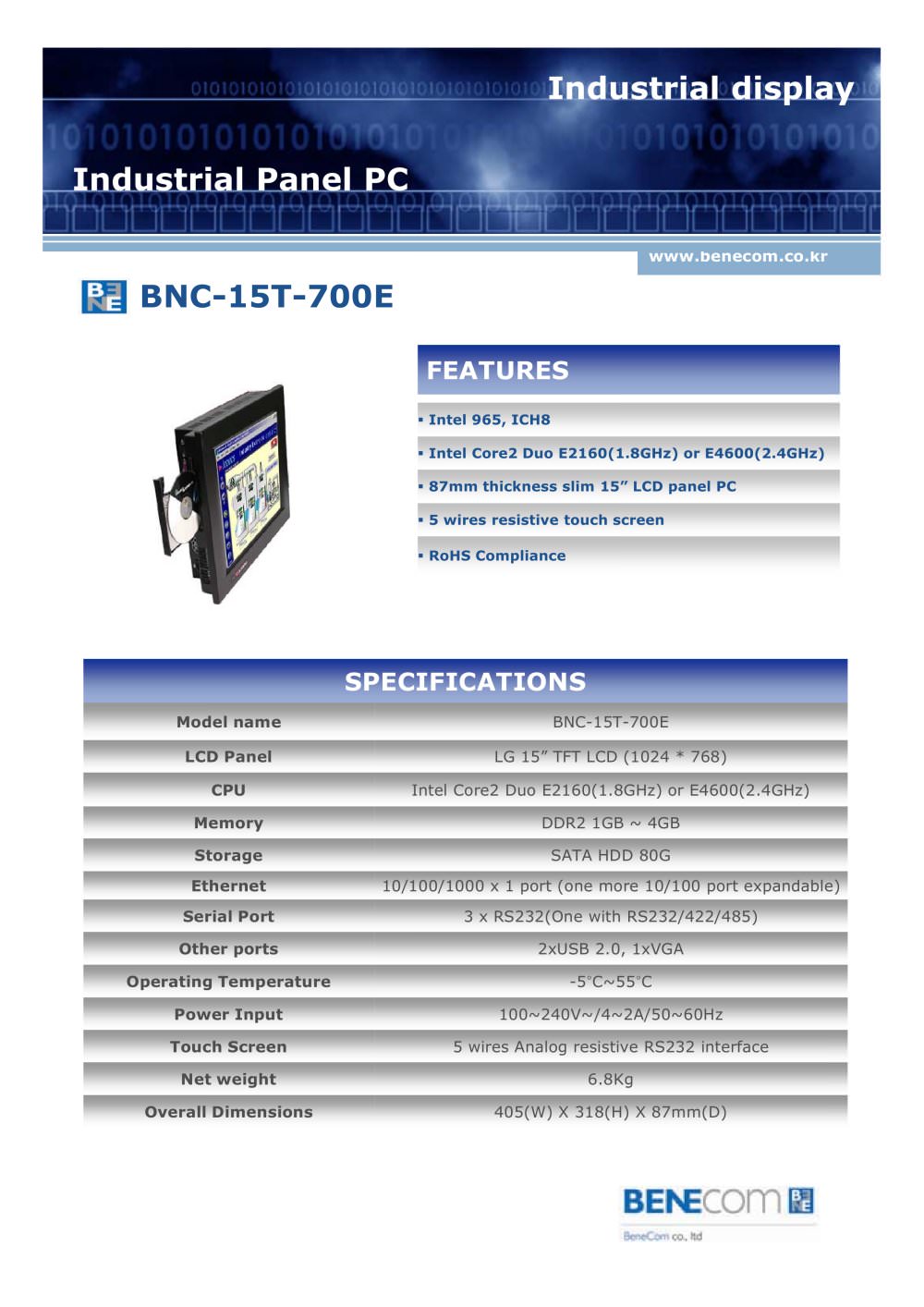

Catalog excerpts

Intel 965, ICH8 Intel Core2 Duo E2160(1.8GHz) or E4600(2.4GHz) 87mm thickness slim 15 LCD panel PC 5 wires resistive touch screen RoHSCompliance Model name BNC-15T-700E LCD Panel LG 15Ԕ TFT LCD (1024 * 768) CPU Intel Core2 Duo E2160(1.8GHz) or E4600(2.4GHz) Memory DDR2 1GB ~ 4GB Storage SATA HDD 80G Ethernet 10/100/1000 x 1 port (one more 10/100 port expandable) Serial Port 3 x RS232(One with RS232/422/485) Other p p orts 2xUSB 2.0 , , 1xVGA Operating Temperature -5 C~55 ֶ C Power Input 100~240V~/4~2A/50~60Hz Touch Screen 5 wires Analog resistive RS232 interface Net weight 6.8Kg Oll Dii O vera ll Di mens i ons 405(W) X 318(H) X 87(D) 405(W) X 318(H) X 87 mm (D) >

Open the catalog to page 1
