12" Panel PC

Product catalog summary

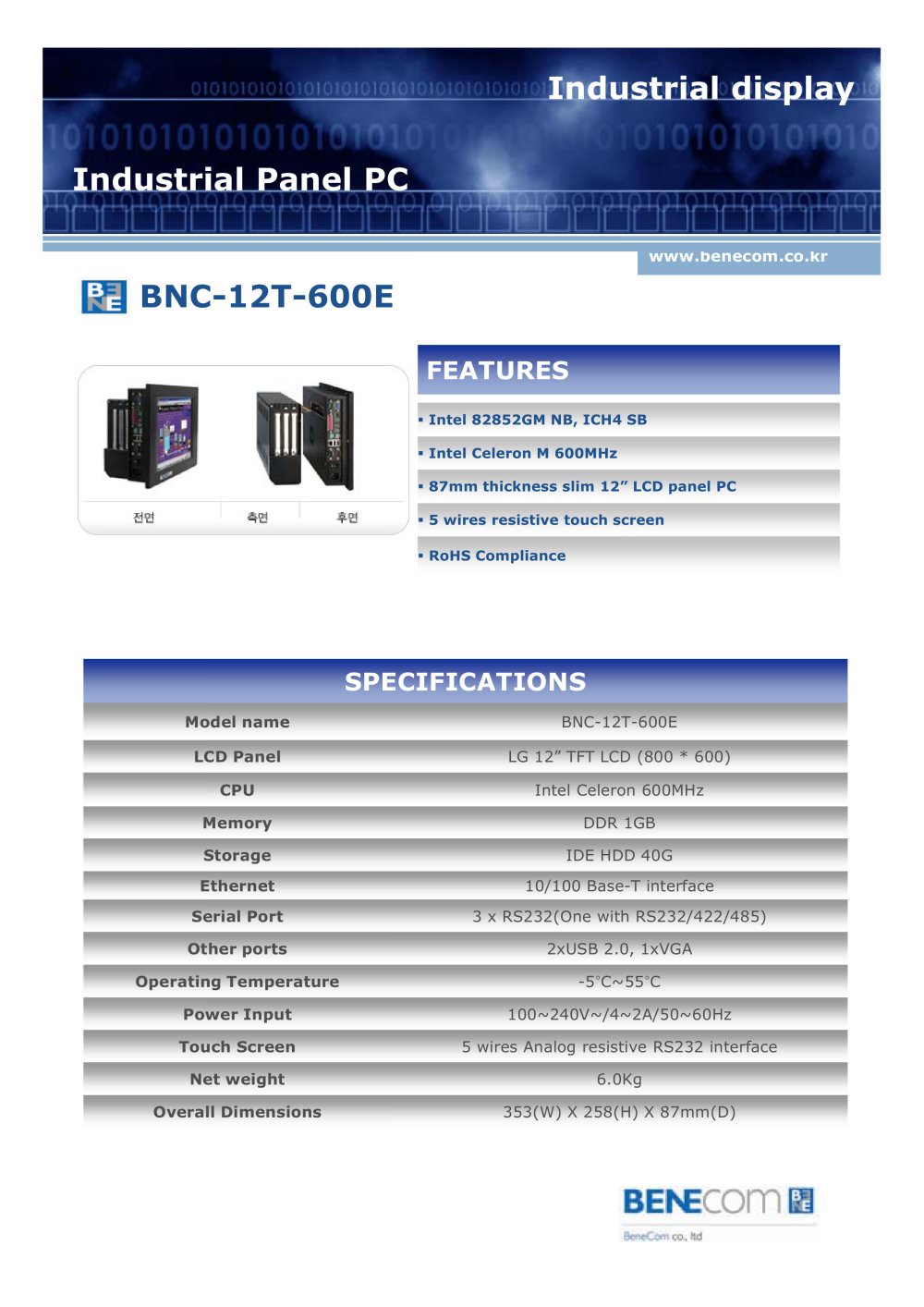

Overview: The document provides technical specifications and features of the BNC-12T-600E, a slim 12” LCD panel PC designed for industrial use. It highlights the device's compliance with RoHS standards and its resistive touch screen capabilities.

Specifications:

Model Name: BNC-12T-600E
LCD Panel: 12” TFT LCD with a resolution of 800 x 600
CPU: Intel Celeron 600MHz
Memory: DDR 1GB
Storage: IDE HDD 40GB
Ethernet: 10/100 Base-T interface
Serial Ports: 3 x RS232 (one configurable to RS232/422/485)
Other Ports: 2 x USB 2.0, 1 x VGA
Operating Temperature: -5°C to 55°C
Power Input: 100~240V~/4~2A/50~60Hz
Touch Screen: 5 wires analog resistive RS232 interface
Net Weight: 6.0Kg
Overall Dimensions: 353(W) x 258(H) x 87(D) mm

Features: The panel PC is noted for its slim design with a thickness of 87mm and its industrial-grade components suitable for various applications.

Catalog excerpts

Intel 82852GM NB, ICH4 SB Intel Celeron M 600MHz 87mm thickness slim 12 LCD panel PC 5 wires resistive touch screen RoHSCompliance Model name BNC-12T-600E LCD Panel LG 12Ԕ TFT LCD (800 * 600) CPU Intel Celeron 600MHz Memory DDR 1GB Storage IDE HDD 40G Ethernet 10/100 Base-T interface Serial Port 3 x RS232(One with RS232/422/485) Other p p orts 2xUSB 2.0 , , 1xVGA Operating Temperature -5 C~55 ֶ C Power Input 100~240V~/4~2A/50~60Hz Touch Screen 5 wires Analog resistive RS232 interface Net weight 6.0Kg Oll Dii O vera ll Di mens i ons 353(W) X 258(H) X 87(D) 353(W) X 258(H) X 87 mm (D) >
