Diesel Generators DCM5E
1 / 2 PagesView full catalog

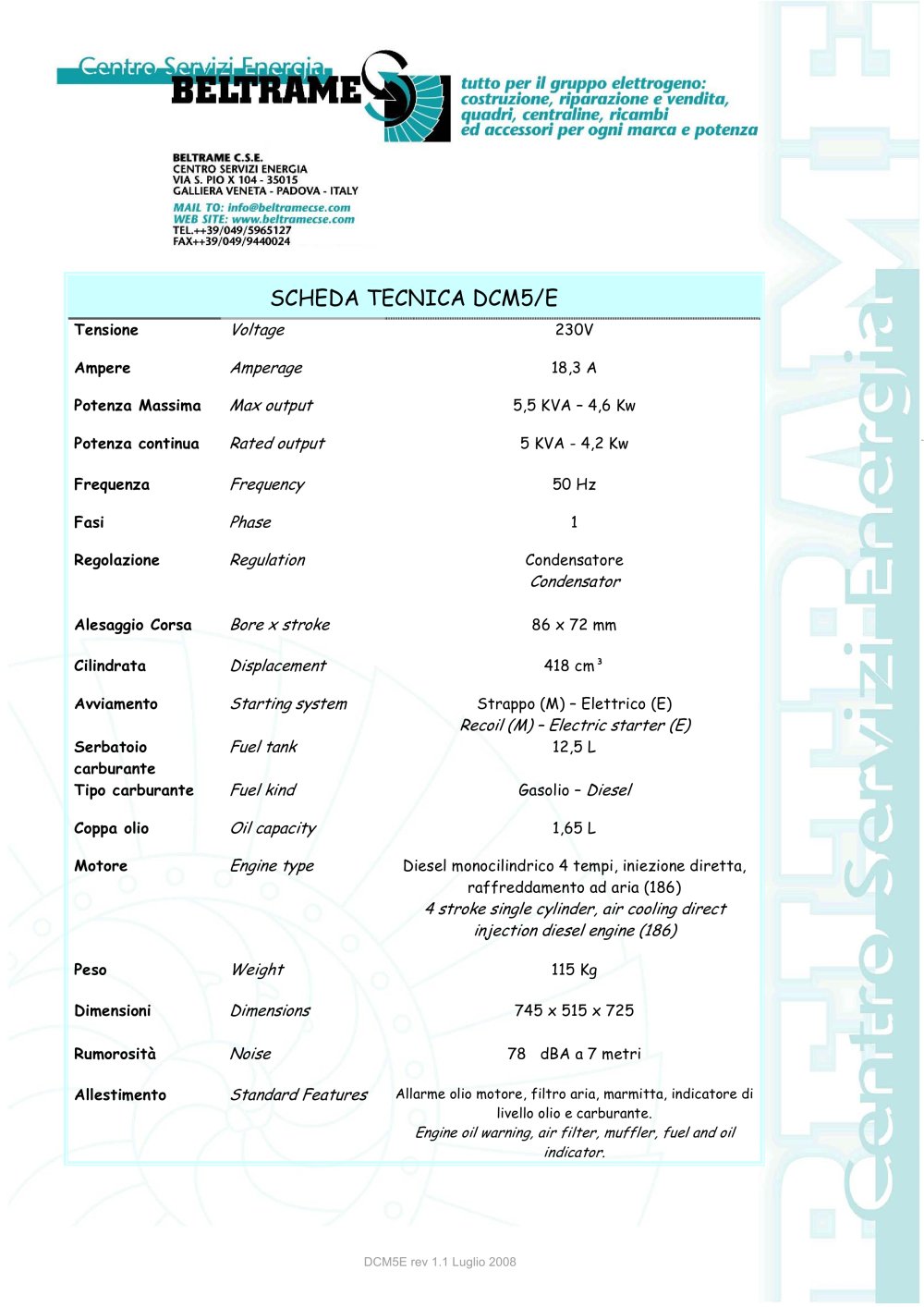

Diesel Generators DCM5E
Product catalog summary
Technical Specifications:
- Voltage: 230V
- Amperage: 18.3 A
- Max Output: 5.5 KVA – 4.6 Kw
- Rated Output: 5 KVA - 4.2 Kw
- Frequency: 50 Hz
- Phase: Single-phase
- Regulation: Condensator
Engine Specifications:
- Bore x Stroke: 86 x 72 mm
- Displacement: 418 cm³
- Starting System: Recoil (M) – Electric starter (E)
- Fuel Tank Capacity: 12.5 L
- Fuel Type: Diesel
- Oil Capacity: 1.65 L
- Engine Type: 4 stroke single cylinder, air cooling direct injection diesel engine (186)
Physical Characteristics:
- Weight: 115 Kg
- Dimensions: 745 x 515 x 725 mm
- Noise Level: 78 dBA at 7 meters
Standard Features:
- Engine oil warning
- Air filter
- Muffler
- Fuel and oil indicator
Product Description:
The DCM5/E is a diesel generator set, single-phase with a power output of 5 KVA, featuring an electric start and mounted on wheels for portability.
The DCM5/E is a diesel generator set, single-phase with a power output of 5 KVA, featuring an electric start and mounted on wheels for portability.
