HFP SERIES - Single-effect single stage manual hydraulic pump
1 / 1 PageView full catalog
HFP SERIES - Single-effect single stage manual hydraulic pump
Product catalog summary
Product Overview: The document describes the HFP2ST700SE, a hydraulic foot pump designed for single-acting cylinders. It features a double-stage operation for efficient performance.
Specifications:
- Dimensions: Approximately 200 mm x 580 mm x 450 mm.
- Oil Capacity: 1 liter.
- Connection Type: 3/8 NPTF.
- Pressure: First stage ~50 bar, second stage ~700 bar.
- Oil Flow per Pump Stroke: First stage ~12 cm³, second stage ~2 cm³.
- Maximum Handle Force: 43 Kg.
- Weight: 10 Kg.
Operation: The pump is operated via a foot pedal that controls the open/close valve mechanism.
See more
Catalog excerpts
HFP2ST700SE Pompa Idraulica a Pedale Doppio Stadio per cilindri a semplice effetto Hydraulic Foot Pump Double Speed for single acting cylinders Otturatore aperto/chiuso azionato a pedale Portata olio per pompata (cm³) 1°stadio 2°stadio Capacità utile olio (litri) via F. De Pisis, 5 - Z.I. Mancasale 42124 Reggio Emilia - Italy P. IVA 01171160359
Open the catalog to page 1All BELL S.R.L. catalogs and technical brochures

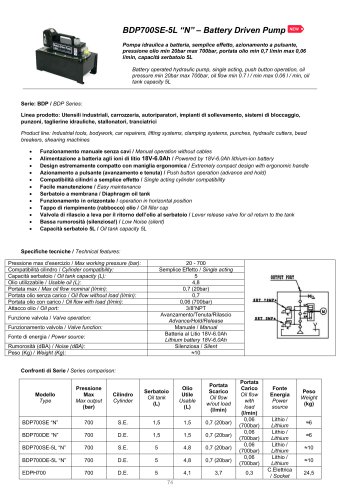

BDP700 SERIES - 5L BELL2 Pages

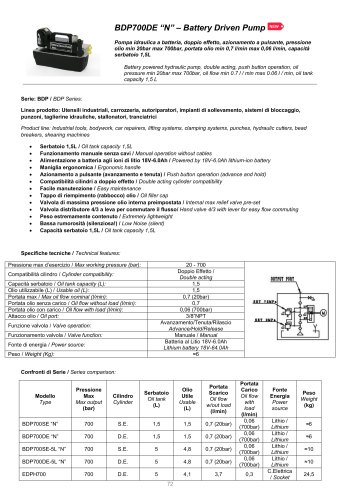

BDP700DE - 1,5L BELL2 Pages

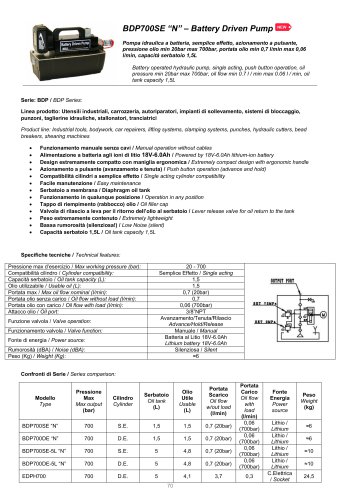

BDP700SE - 1,5L BELL2 Pages
