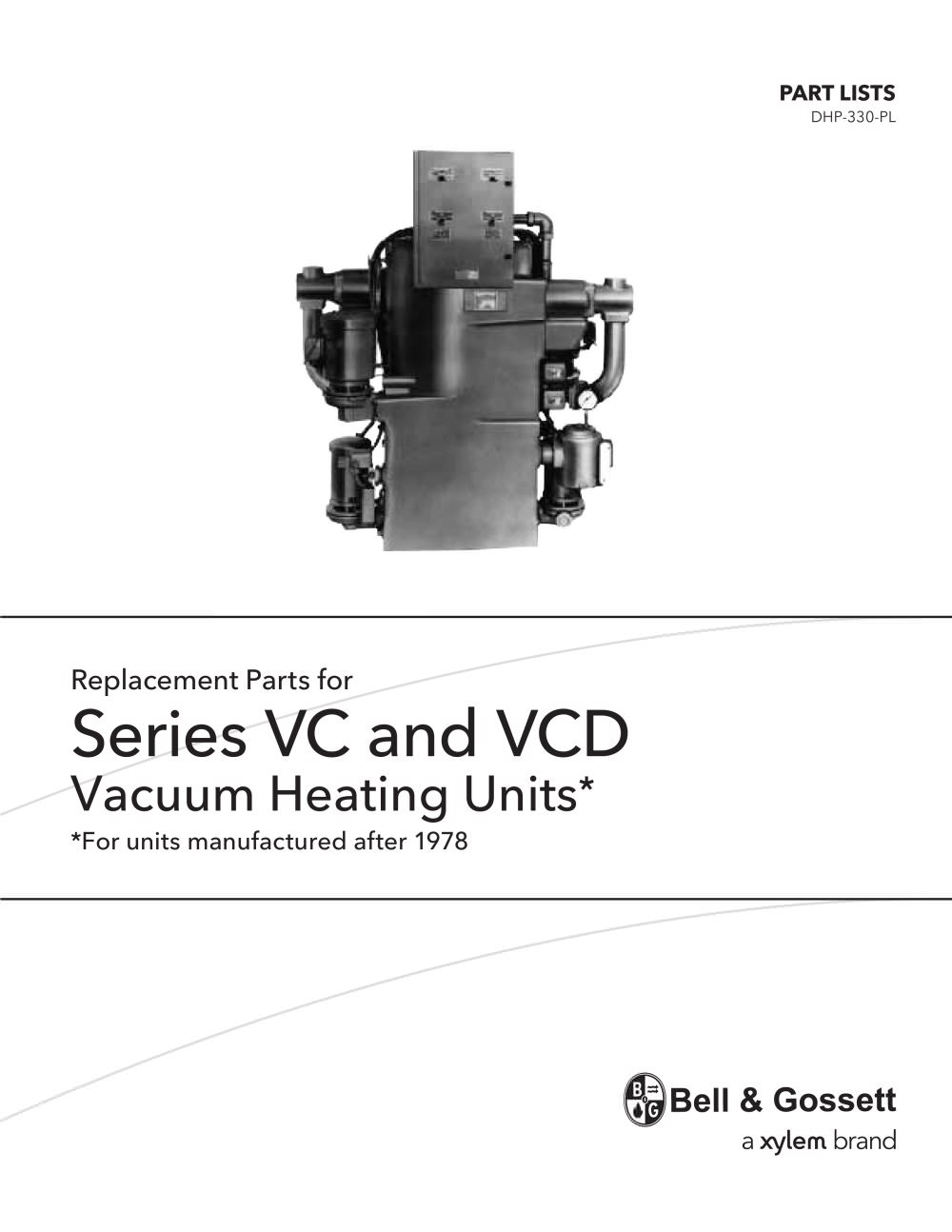

Replacement VC & VCD Vacuum Heating Units
42Pages

Series VC and VCD Vacuum Heating Units* *For units manufactured after 1978

How to Use this Parts List The unit nameplate shown on the cover identifies the unit by Model Number and Serial Number. Pump combinations are noted in the section of the nameplate labeled “Pump” and the number designation refers to either a Series C-35™ or Series C-17™ Centriflo® Condensate Pump. All pump designation numbers 609 through 627 refer to pumps operating at 3500 RPM. All pump designation numbers 650 through 673 refer to pumps operating at 1750 RPM. All model numbers identify the following information: • Maximum Square Feet of EDR (i.e. 25VC or 25VCD is rated for a maximum of...

3. The Vacuum Pump and Components for specified condition points are noted in the tables found on pages 7, 8, 9, & 10. These tables identify Bill of Material pages required to select parts and the vacuum producing components (i.e., nozzle and venturi) unique to specify duty points. 4. Refer to the drawings shown on pages 36 thru 41 to select items required. Pump parts are detailed in the current Centriflo® Pump Parts List (C-17™-1750 RPM or C-35™-3500 RPM Pumps or the current version of Bell Gossett’s ESP-Parts Program). 5. Refer to the appropriate parts selection page to identify items by...

STANDARD CONDENSATE PUMPS FOR 3500 RPM APPLICATIONS PARTS LIST DHP-330-PL SERIES VC & VCD

STANDARD CONDENSATE PUMPS FOR 1750 RPM APPLICATIONS PARTS LIST DHP-330-PL SERIES VC & VCD

PARTS LIST DHP-330-PL SERIES VC & VCD

PARTS LIST DHP-330-PL SERIES VC & VCD

PARTS LIST DHP-330-PL SERIES VC & VCD

PARTS LIST DHP-330-PL SERIES VC & VCD

PART NUMBER Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Check Valve Nozzle Body Nozzle Retaining Ring Nozzle Body Cover Check Valve Housing Nozzle Body Gasket Air Suction Flange Gasket Nozzle Body Cover Gasket Capscrew Lift Pipe Gasket Case to Receiver Gasket Dresser Elbow Pipe Pipe Make Up Assembly (115V) Alternate Choice Make Up Assembly (208V & 230V) Vacuum Switch Temperature Limit Switch Temperature Limit Switch Well Temperature Limit Switch Angle Thermometer Compression Fitting Compression Fitting Copper Tube Float...

Compression Fitting Compression Fitting Copper Tube Float Switch Mounting Flange Float Switch Flange Gasket Inlet Basket Strainer Pipe Nipple Float Switch Assembly Alternate Choice Mechanical Alternator Gauge Glass Assembly Compound Gauge Gage Cock Pipe Nipple Capscrew *Detail of accessories located on page 34. PART NUMBER Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Check Valve Nozzle Body Snap Ring Nozzle Body Cover Check Valve Housing Nozzle Body Gasket Air Suction Flange Gasket Nozzle Body Cover Gasket Capscrew Lift...

Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Check Valve Nozzle Body Snap Ring Nozzle Body Cover Check Valve Housing Nozzle Body Gasket Air Suction Flange Gasket Nozzle Body Cover Gasket Capscrew Lift Pipe Gasket Case to Receiver Gasket Manifold Elbow Make Up Assembly (115V) Alternate Choice Make Up Assembly (208V & 230V) Vacuum Switch Temperature Limit Switch Temperature LimitSwitch Well Temperature Limit Switch Angle Thermometer Compression Fitting Compression Fitting Copper Tube Float Switch Mounting Flange Float Switch...

Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Check Valve Nozzle Body Nozzle Retaining Ring Nozzle Body Cover Check Valve Housing Nozzle Body Gasket Air Suction Flange Gasket Nozzle Body Cover Gasket Capscrew Lift Pipe Gasket Case to Receiver Gasket Manifold Elbow Make Up Assembly (115V) Alternate Choice Make Up Assembly (208V & 230V) Vacuum Switch Temperature Limit Switch Temperature Limit Switch Well Temperature Limit Switch Angle Thermometer Compression Fitting Compression Fitting Copper Tube Float Switch Mounting Flange...

Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Discharge Manifold Body Cover Plate Discharge Manifold Gasket Cover Gasket Check Valve Assembly Manifold Insert Nozzle Body Nozzle Body Gasket Nozzle Retaining Ring Manifold Elbow Flange Gasket Manifold Elbow Gasket Case to Receiver Gasket Nozzle Body Cover Plate Blind Flange Water Make Up Assembly (115 V) Alternate Choice Water Make Up Assembly (208V & 230V) Elbow Connector Copper Tubing Vacuum Switch Angle Thermometer Temperature Limit Switch Temperature Limit Switch Well...

Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Discharge Manifold Body Cover Plate Discharge Manifold Gasket Cover Gasket Check Valve Assembly Manifold Insert Nozzle Body Nozzle Body Gasket Nozzle Retaining Ring Manifold Elbow Flange Gasket Manifold Elbow Gasket Case to Receiver Gasket Water Make Up Assembly (115 V) Alternate Choice Water Make Up Assembly (208V & 230V) Elbow Connector Copper Tubing Vacuum Switch Angle Thermometer Temperature Limit Switch Temperature Limit Switch Well Temperature Limit Switch Basket Strainer...

Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Discharge Manifold Body Cover Plate Discharge Manifold Gasket Cover Gasket Check Valve Assembly Manifold Insert Nozzle Body Nozzle Body Gasket Nozzle Retaining Ring Manifold Elbow Manifold Elbow Manifold Elbow Gasket Case to Receiver Gasket Blind Flange (Nozzle Body) Blind Flange (Pump) Water Make Up Assembly (115 V) Alternate Choice Water Make Up Assembly (208V & 230V) Elbow Connector Copper Tubing Vacuum Switch Angle Thermometer Temperature Limit Switch Temperature Limit...

Bill of Material Reference Receiver Float Switch Asm (for make-up) Air Vent Air Vent Gasket Water Gauge Glass Asm Discharge Manifold Body Cover Plate Discharge Manifold Gasket Cover Gasket Check Valve Assembly Manifold Insert Nozzle Body Nozzle Body Gasket Nozzle Retaining Ring Manifold Elbow Manifold Elbow Manifold Gasket Case to Receiver Gasket Water Make Up Assembly (115 V) Alternate Choice Water Make Up Assembly (208V & 230V) Elbow Connector Copper Tubing Vacuum Switch Angle Thermometer Temperature Limit Switch Temperature Limit Switch Well Temperature Limit Switch Basket Strainer...
