- UH500C high resolution inkjet printer
UH500C high resolution inkjet printer
UH500C high resolution inkjet printer
- Printhead and Ink System: The internal circulation system prevents ink particle precipitation, ensuring stability and accommodating various ink applications. The system includes ink storage, pump body, filtration, ink supply, and return flow.
- Throw Distance: Capable of printing at distances ranging from 5mm to 20mm.
- Resolution: Adjustable horizontal resolution between 300 - 600 DPI, supporting BMP bitmap printing for clearer images.
- Printing Content: Capable of printing barcodes, 2D codes, variable text, images, logos, dates, times, batch numbers, shift codes, and serial numbers.
- Printing Height: Up to 53.95 mm.
- Hardware: Features a 4-core processor with a 2GHz CPU frequency, 4G RAM, and 120G storage memory.
- Data Access: Supports USB3.0 and network port communication for diverse system integration needs.
- Curing Type: Utilizes LED-UV curing technology.
- Power Supply: Requires 220VAC ± 10%, properly wired and grounded.
- Environmental Requirements: Operates optimally between 10°C - 32°C with humidity levels of 15% - 75%.
- Console: 330mm x 300mm x 485mm.
- Printhead: 295mm x 115mm x 45mm.
- Umbilical Tube Length: 2.5m (Standard).
- Operating Interface: Multi-interface editing mode for convenient document editing in print mode.
- Software Program: Independently developed software system with the ability to add extended functions.
- Printhead Expansion: Automatically detects multiple printheads and adjusts page height for easier expansion.
Catalog excerpts

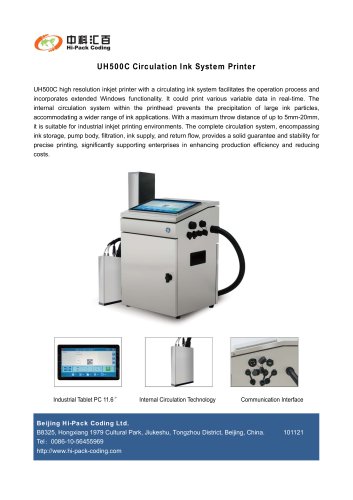

UH500C Circulation Ink System Printer UH500C high resolution inkjet printer with a circulating ink system facilitates the operation process and incorporates extended Windows functionality. It could print various variable data in real-time. The internal circulation system within the printhead prevents the precipitation of large ink particles, accommodating a wider range of ink applications. With a maximum throw distance of up to 5mm-20mm, it is suitable for industrial inkjet printing environments. The complete circulation system, encompassing ink storage, pump body, filtration, ink supply, and return flow, provides a solid guarantee and stability for precise printing, significantly supporting enterprises in enhancing production efficiency and reducing costs. Internal Circulation Technology Communication Interface Beijing Hi-Pack Coding Ltd. B8325, Hongxiang 1979 Cultural Park, Jiukeshu, Tongzhou District, Beijing, China. Tel：0086-10-56455969 http://www.hi-pack-coding.com
Open the catalog to page 1
UH500C High Resolution Printing System Operating Interface: Multi-interface editing mode, convenient for customer to edit multiple documents in print mode. Software Program: Software system completely independently developed, convenient for the program to add extended functions. Printhead Expansion: System could detect multiple printheads, and automatically generate the height of the page to be printed, making it more convenient to expand printheads. Internal Circulation Technology: Internal circulation directly removes bubbles and impurities from printhead, ensuring the stability of continuous...
