Wireless IOT Gateway LAN Indoor

Wireless IOT Gateway LAN Indoor

1 / 6 PagesView full catalog

Wireless IOT Gateway LAN Indoor

Product catalog summary

Main Features

Advanced UPS with integrated rechargeable Lithium battery.
Ethernet/LAN interface with server connectivity.
Auto-Reboot feature for periodic rebooting.
Wireless technology IEEE 802.15.4.

Applications

The BeanGateway® 2.4GHz Ethernet serves as a multi-protocol wireless IoT sensors coordinator, managing Beanair® wireless IoT sensors. It handles network queues and controls external access through secure authentication. It supports data conversion, compression, and IP connectivity, reducing platform intelligence and maintenance costs.

Technical Specifications

Product Reference: BGTW-2.4GHZ-ETH-IND
Raw data rate: 250 Kbits/s
WSN Topology: Peer-to-peer/Star
RF Characteristics: ISM 2.4GHz – 16 Channels
RF Transmit power: +18 dBm
Receiver sensitivity: -104 dBm
Maximum Radio Range: 1 km (Line of Sight), 70-150m (Non Line of Sight)
Wireless Technology: Ultra-Low Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
Network/Transport Protocol: Client TCP/IP, UDP, DNS, DHCP
IP Addressing: Dynamic (DHCP) or static
Physical Dimensions: 200 mm x 88 mm x 48 mm
Operating temperature: -40 °C to +60 °C
Power supply: 8-28 Volts

Power Supply

Power Consumption: 250 mA to 300 mA during wireless RX/TX and Ethernet activated
External power supply: 8-28 VDC
Integrated Lithium-Ion Battery: 950 mAh

Accessories

Ethernet Cable: RJ45 Male, 2 meters
2.4 GHz Antenna: High gain antenna 5.5 dBi
Wall plug-in power supply: 12V @ 1.25A

Contact Information

BeanAir Sensors, Buchholzer Straße 65, 13156 Berlin, Germany. Phone: +493066405051

Catalog excerpts

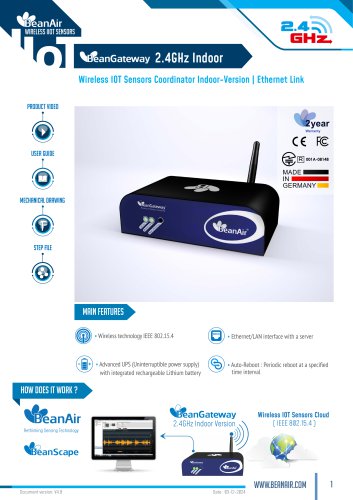

2.4GHz Indoor Wireless IOT Sensors Coordinator Indoor-Version | Ethernet Link Product Video user guide mechanical drawing step file Main Features • Wireless technology IEEE 802.15.4 • Ethernet/LAN interface with a server • Advanced UPS (Uninterruptible power supply) with integrated rechargeable Lithium battery • Auto-Reboot : Periodic reboot at a specified time interval Rethinking Sensing Technology Wireless IOT Sensors Cloud ( IEEE 802.15.4 )

Open the catalog to page 1

Indoor APPLICATIONS Condition Monitoring Test and Measurement A multi-protocol Wireless IOT Sensors coordinator The BeanGateway® 2.4GHz Ethernet is used to build and manage Beanair® wireless IOT sensors. It can manage queues for every network element ( BeanDevice® 2.4GHz ). As a gateway, it controls the external access to the network through a highly secured authentication procedure. It supports the conversion of data exchanged, compression and IP connectivity with the network thereby reducing the intelligence required in these platforms, maintenance and therefore the associated cost. The BeanGateway®...

Open the catalog to page 2

^E^anGateway INDOOR HDVHNCED UNINTERRUPTIBLE POWER SUPPLY [UPS] The BeanGateway® 2.4GHz Ethernet operates with an external power supply (DC 8-28V). An integrated rechargeable battery with a capacity of 950mAh is used as an UPS battery (uninterruptible power supply). The internal battery provides instantaneous protection from external power supply interruptions, the Wireless IIOT Sensors activity & Ethernet LAN activity are maintained during this time (3h00 to 3h30 approximately). An internal buzzer emits a beep sound every 2 seconds in case the external power supply is disconnected. External...

Open the catalog to page 3

TECHNICAL SPECIFICATIONS power supply Wireless IOT Sensors coordinator Ethernet Link | Indoor Version Power supply 8-28 Volts

Open the catalog to page 5

Indoor Accessories Omnidirectional antenna Omnidirectional antenna Ref:HG_OMNI_5_5_DBI - Freq Range 2400 - 2485 MHz - Ver Beamwidth : 90° Deg - VSWR : 1.5:1 - Input Power: 10 W - Connector: SMA Male - Weight: 26 gr . Gain @ 2400 MHz 5.5 dBi . Hor Beamwidth : 360° Deg . Impedance : 50 Ohm . Operating Temp: -10 +60 Deg C . Dimensions: 210 x 10D mm Ref: HG_OMNI_9_DBI - Freq Range 2400 - 2485 MHz - Ver Beamwidth : 90° Deg - VSWR : 1.5:1 - Input Power: 10 W - Connector: RP-SMA Plug - Weight: 60 gr . Gain @ 2400 MHz 9 dBi . Hor Beamwidth : 360° Deg . Impedance : 50 Ohm . Operating Temp: -10 +60 Deg...

Open the catalog to page 6
