White Paper- Calibrating Temperature Instruments

White Paper- Calibrating Temperature Instruments

Product catalog summary

Introduction
Temperature is a critical variable in industrial processes, influencing quality, energy consumption, and emissions. Accurate temperature measurement requires calibration to determine the extent of measurement errors inherent in all meters and sensors.

Temperature Sensors
Common temperature sensors include Resistance Temperature Detectors (RTDs) and Thermocouples (T/Cs). RTDs, like the Pt100, change resistance with temperature, while T/Cs measure temperature differences through voltage differences between two metal wires.

Temperature Transmitters
Transmitters convert sensor signals into formats suitable for long-distance transmission, typically 4-20 mA or digital signals. Regular calibration of transmitters is necessary to maintain accuracy.

Calibrating Temperature Instruments
Calibration involves comparing a sensor to a reference at a known temperature, using dry blocks or liquid baths. Key factors affecting calibration uncertainty include axial and radial homogeneity, loading effect, stability, and immersion depth. Calibration should be periodic and documented as per ISO Quality Control standards.

Integrated Calibration Solution (ICS)
Beamex offers an Integrated Calibration Solution (ICS) combining calibrators, software, and PCs for efficient calibration management. The system automates calibration processes, reduces errors, and provides comprehensive documentation, including traceable calibration certificates.

Catalog excerpts

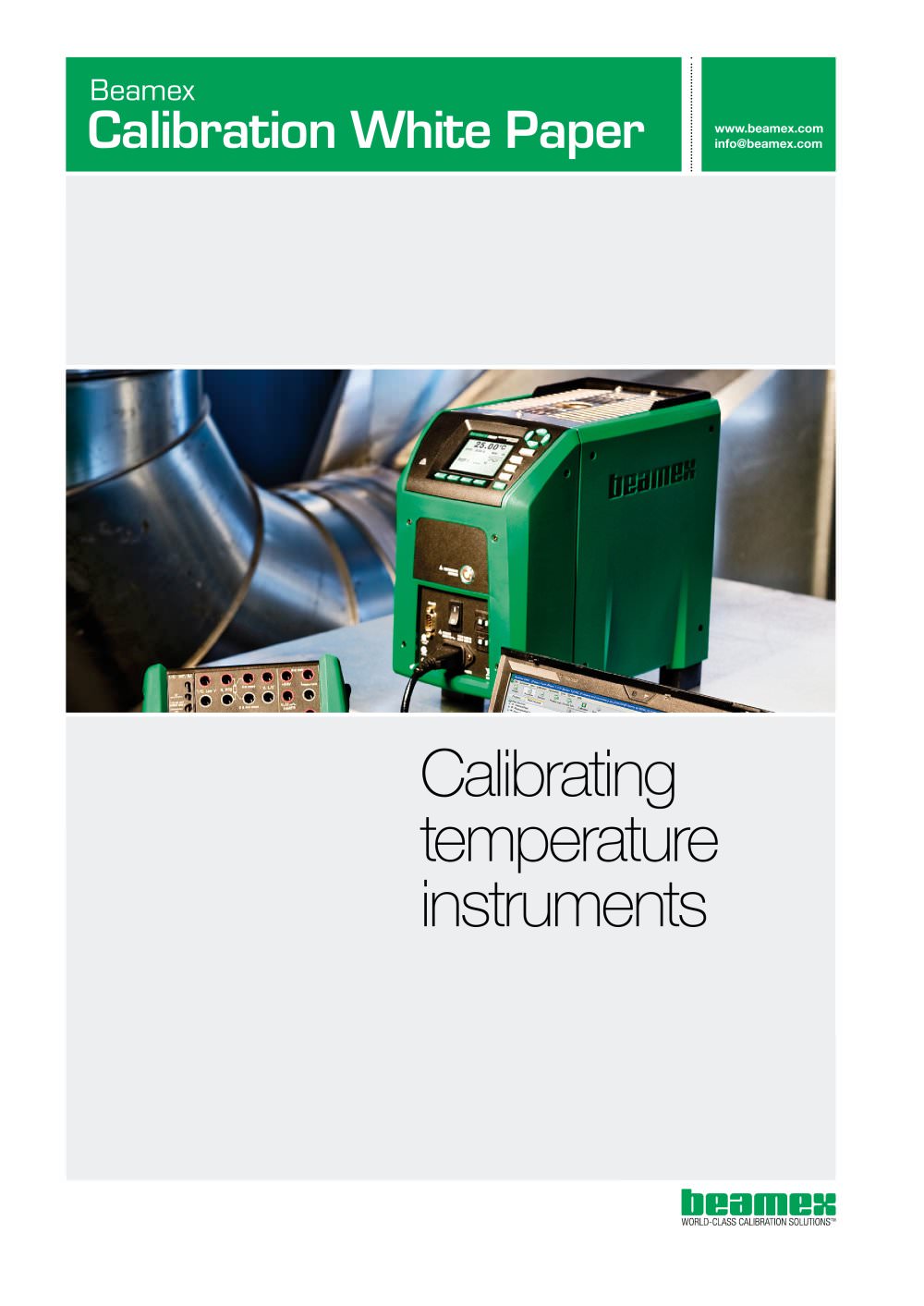

White Paper- Calibrating Temperature Instruments-1

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:27.00pt "Arial", sans-serif; } .font4 { font:32.00pt "Arial", sans-serif; } .font5 { font:35.00pt "Arial", sans-serif; } Beamex Calibration White Pape [email protected] Calibrating temprature instruments beamex WORLD-CLASS CALIBRATION SOLUTIONS

Open the catalog to page 1

White Paper- Calibrating Temperature Instruments-2

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:28.00pt "Arial", sans-serif; } .font6 { font:9.00pt "Times New Roman", serif; } BEAMEX Calibration White Paper Calibrating temprature instruments All meters, including sensors, show incorrectly - calibration will prove by how much. The most commonly and most frequently measurable variable...

Open the catalog to page 2

White Paper- Calibrating Temperature Instruments-3

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Times New Roman", serif; } .font6 { font:10.00pt "Times New Roman", serif; } BEAMEX Calibration White Paper The uncertainty of calibration is not the same as the accuracy of the device. Many factors influence the total uncertainty, and performing calibration is not the least influencing...

Open the catalog to page 3

White Paper- Calibrating Temperature Instruments-4

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Times New Roman", serif; } BEAMEX Calibration White Paper The Beamex® Integrated Calibration Solution (ICS) concept is the combination of calibrator, calibration software and PC for online calibration. MC5 Multifunction Calibrators enabling fully automated temprature calibration and documentation. The calibration results can...

Open the catalog to page 4
