Siphon Valve with Discharge Valve

This document provides specifications for a siphon valve with a discharge valve, including various models and their dimensions.

Stem Gate Specifications

The stem gate is available with a flange and is described in multiple languages. The specifications include dimensions and weight for different models:

Model 309/B: Ø 45, A 282, B 285, C 442, S 80, Weight 3 kg
Model 309/C: Ø 60, A 288, B 285, C 442, S 80, Weight 3.3 kg
Model 309/M: Ø 75, A 296, B 285, C 442, S 80, Weight 3.6 kg
Model 309/D: Ø 80, A 312, B 285, C 442, S 80, Weight 4 kg

Discharge Valve Specifications

The discharge valve is specified with a Ø ¾” GAS and a weight of 0.3 kg.

Additional Valve Specifications

Further specifications are provided for larger valves with different dimensions and weights:

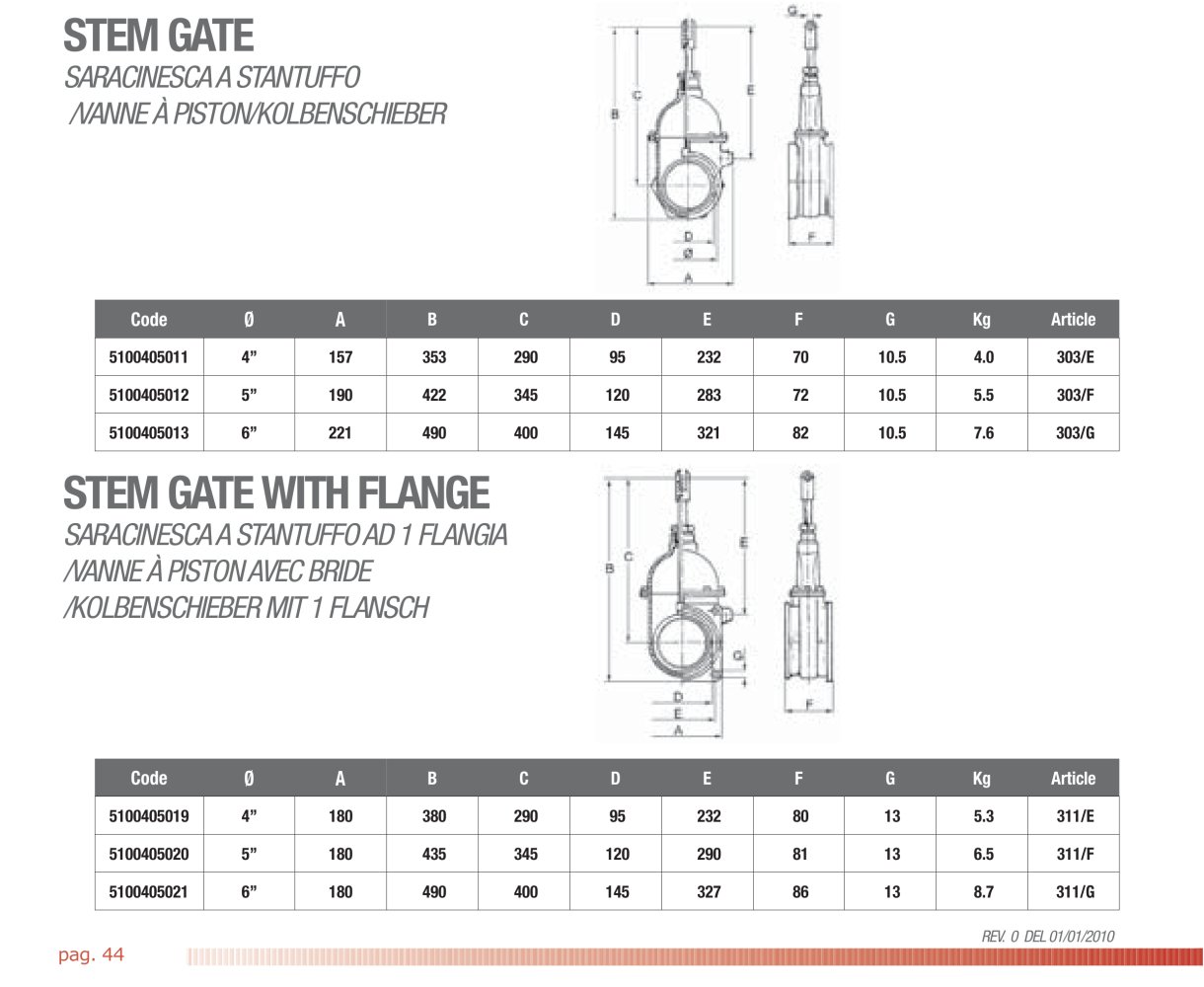

Model 303/E: Ø 4”, A 157, B 353, C 290, D 95, E 232, F 70, G 10.5, Weight 4.0 kg
Model 303/F: Ø 5”, A 190, B 422, C 345, D 120, E 283, F 72, G 10.5, Weight 5.5 kg
Model 303/G: Ø 6”, A 221, B 490, C 400, D 145, E 321, F 82, G 10.5, Weight 7.6 kg

Additional Valve Specifications (Continued)

Model 311/E: Ø 4”, A 180, B 380, C 290, D 95, E 232, F 80, G 13, Weight 5.3 kg
Model 311/F: Ø 5”, A 180, B 435, C 345, D 120, E 290, F 81, G 13, Weight 6.5 kg
Model 311/G: Ø 6”, A 180, B 490, C 400, D 145, E 327, F 86, G 13, Weight 8.7 kg
