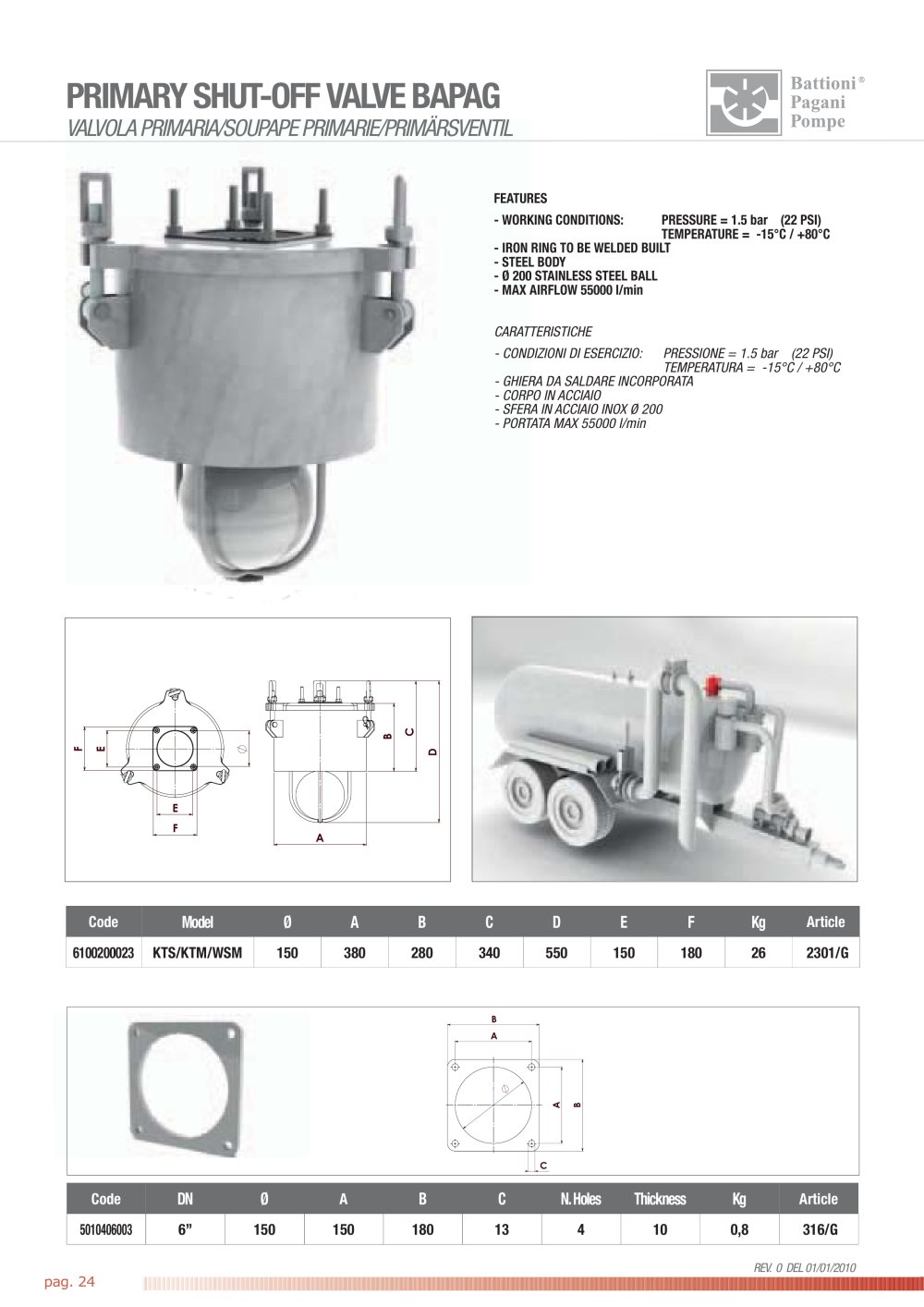

PRIMARY SHUT-OFF VALVE BAPAG
1 / 1 PageView full catalog
PRIMARY SHUT-OFF VALVE BAPAG
Product catalog summary
Features:
- Working Conditions: Pressure is set at 1.5 bar (22 PSI) with a temperature range from -15°C to +80°C.
- Construction: Includes an iron ring to be welded and a steel body.
- Components: Features a Ø 200 stainless steel ball.
- Performance: Maximum airflow capacity is 55000 l/min.
Specifications:
- Code Model: 6100200023
- Dimensions: Ø 150, A 380, B 280, C 340, D 550, E 150, F 180
- Weight: 26 Kg
- Article Number: 2301/G
Additional Specifications:
- Code: 5010406003
- DN: 6”
- Dimensions: Ø 150, A 150, B 180
- Number of Holes: 4
- Thickness: 10
- Weight: 0.8 Kg
- Article Number: 316/G
Component:
- Primary Shut-off Valve BAPAG
