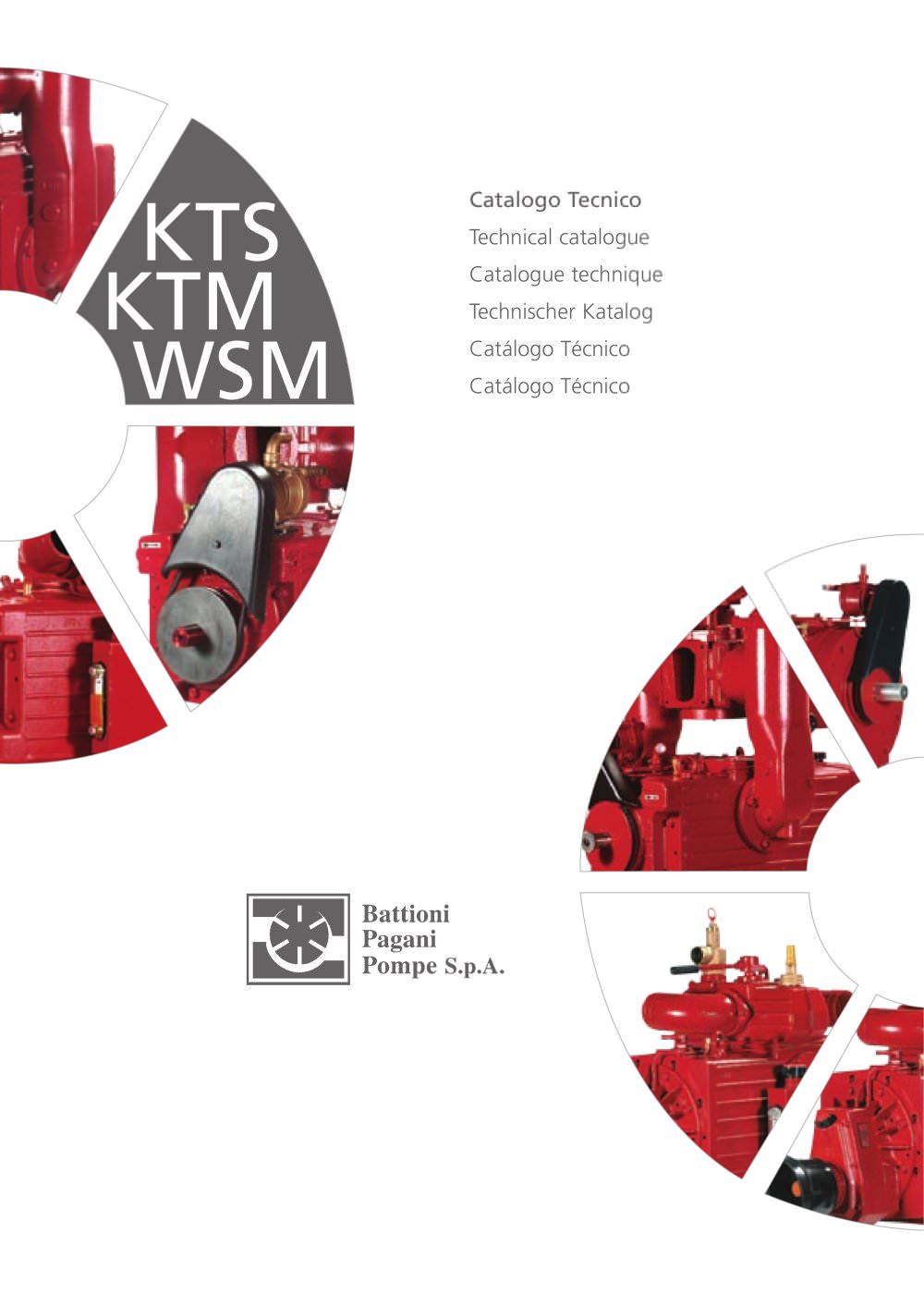

DEPLIANT KTM

Product catalog summary

KTS Series Overview
The KTS series includes three models: KTS 840, KTS 960, and KTS 1080, available in versions MFR, KFR, PFR, DFR, and HFR. Capacities range from 14,100 to 18,000 liters per minute. Configurations include side manifolds with a four-way cock (KTS-S) or a manifold directly on the pump body (KTS-C). Standard features are automatic lubrication and water-cooling systems. These pumps are suitable for continuous use on trucks or large agricultural tanks.

Key Features of KTS Series

Automatic lubrication pump.
High wear resistance with high-hardness cast iron.
Heat-resistant, asbestos-free blades.
Rotor with steel pins for maintenance ease.
Integrated check valve with rubber ball.
Water cooling on body and flanges.
Flange sliding to prevent breakages.

KTM/WSM Series Overview
The KTM/WSM series features advanced technical solutions and high-tech materials, with models KTM 1200, KTM 1500, KTM 1800, KTM 2300, WSM 2700, and WSM 3300. Capacities range from 21,500 to 56,000 liters per minute. Available in DFR, HFR, and PFR versions, these units include automatic lubrication and water-cooling systems, suitable for continuous use with various accessories.

Key Features of KTM/WSM Series

Automatic lubrication pump.
Water cooling on body and flanges.
High wear resistance with high-hardness cast iron.
Heat-resistant, asbestos-free blades.
Rotor with steel pins for maintenance ease.
Integrated check valve with rubber ball.
Pneumatic housing and aluminum side manifolds.
Incorporated oil tank.
Flange sliding to prevent breakages.

Specifications

MFR-C Version: Driven by a cardan shaft at 540 rpm, max speed 600 rpm, pressure 2.5 bar, capacity 14,100-18,000 l/min.
PFR-C/S Version: Operates via pulleys and belts, max speed 1200 rpm, similar pressure and capacity as MFR-C.
DFR-C/S Version: Driven by a cardan shaft at 1000 rpm, max speed 1200 rpm, same pressure and capacity as previous versions.
HFR-C/S Version: Powered by a hydraulic motor, max speed 1200 rpm, same pressure and capacity.

Technical Data

Max vacuum: -0.95 bar, continuous duty at -0.8 bar, intermittent at -0.9 bar.
Power absorption: MFR-C up to 51 kW, HFR-C/S up to 47 kW.
Oil consumption: 180-200 g/h, sound levels 85-90 dB(A).
Net weights: MFR-C 406-459 kg, HFR-C/S 351-443 kg.

Design and Dimensions
Includes detailed dimensional data for each version, specifying measurements for components and configurations.

Hydraulic System
The HFR version includes a hydraulic system schematic detailing components like the hydraulic motor, radiator, overpressure valve, oil filter, tank, distributor, and hydraulic pump.

Additional Notes
The hydraulic pump is not supplied with the KFR version. Detailed dimensional data is provided for each version, specifying measurements in millimeters for various components.
