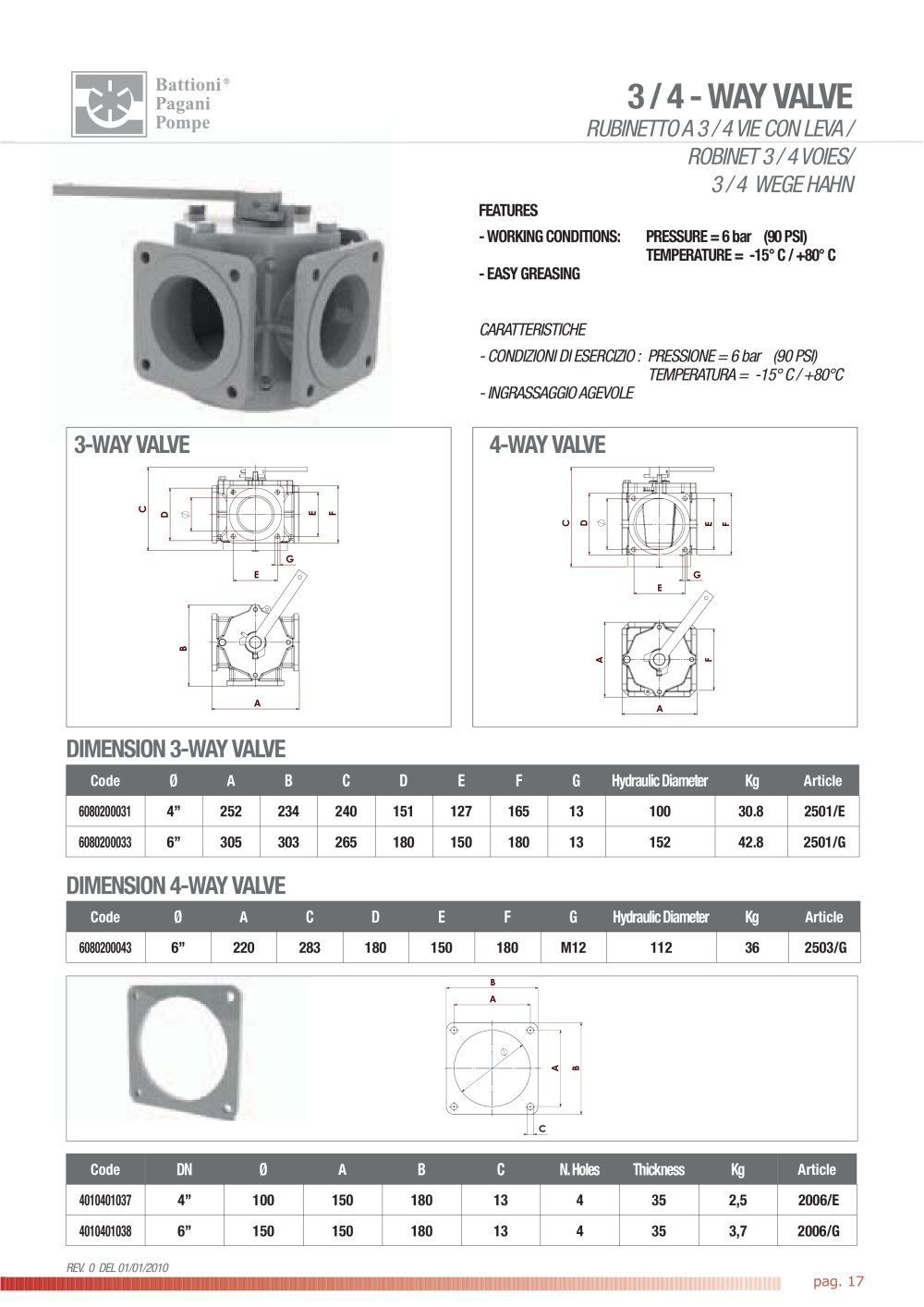

3 / 4 - WAY VALVE

1 / 1 PageView full catalog

3 / 4 - WAY VALVE

Product catalog summary

Features

Working Conditions: Pressure = 6 bar (90 PSI), Temperature = -15°C to +80°C
Easy Greasing

Valve Types

3/4-Way Valve

Specifications

3-Way Valve Dimensions:
- Code 6080200031: 4” diameter, dimensions A=252, B=234, C=240, D=151, E=127, F=165, G=13, Hydraulic Diameter=100, Weight=30.8 kg, Article=2501/E
- Code 6080200033: 6” diameter, dimensions A=305, B=303, C=265, D=180, E=150, F=180, G=13, Hydraulic Diameter=152, Weight=42.8 kg, Article=2501/G
4-Way Valve Dimensions:
- Code 6080200043: 6” diameter, dimensions A=220, C=283, D=180, E=150, F=180, G=M12, Hydraulic Diameter=112, Weight=36 kg, Article=2503/G

Additional Dimensions

3-Way Valve:
- Code 4010401037: 4” diameter, DN=100, A=150, B=180, C=13, Number of Holes=4, Thickness=35, Weight=2.5 kg, Article=2006/E
- Code 4010401038: 6” diameter, DN=150, A=150, B=180, C=13, Number of Holes=4, Thickness=35, Weight=3.7 kg, Article=2006/G
