PROFIBUS-Interface 16 x digital out
1Pages

{{requestButtons}}

Catalog excerpts

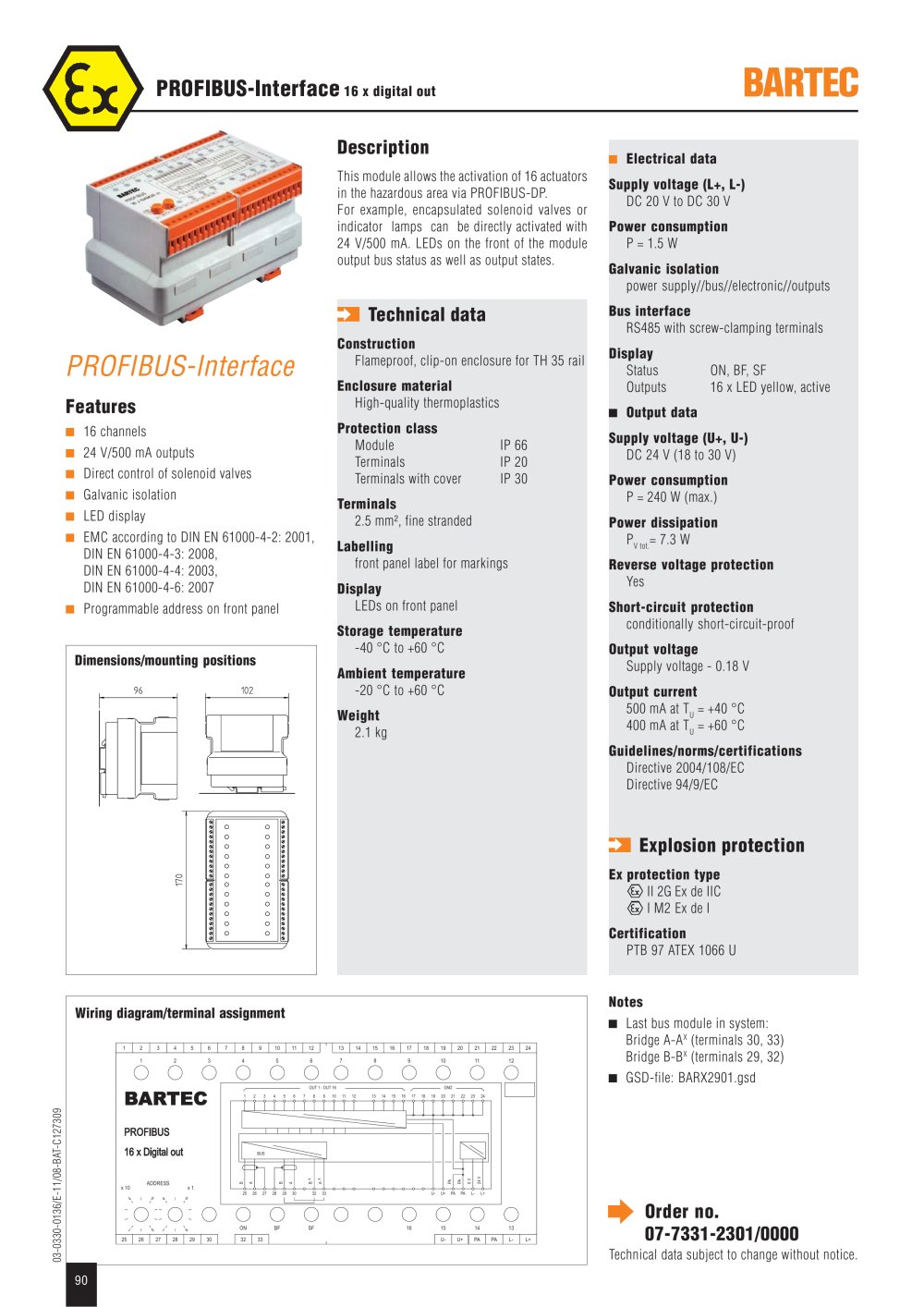

PROFIBUS-Interface 16 x digital out - 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.60pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:7.00pt "Impact", sans-serif; } .font7 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:13.00pt "Lucida Sans Unicode", sans-serif; } PROFIBUS-interfaceia x digital out ■ Electrical data Supply voltage (L+, L-) DC 20 V to DC 30 V Power consumption P = 1.5 W Galvanic isolation power supply//bus//electronic//outputs Bus interface RS485 with screw-clamping terminals Display Description This module allows the activation of 16 actuators in the hazardous area via PROFIBUS-DP. For example, encapsulated solenoid valves or indicator lamps can be directly activated with 24 V/500 mA. LEDs on the front of the module output bus status as well as output states. ZM Technical data Construction Flameproof, clip-on enclosure for TH 35 rail Enclosure material High-quality thermoplastics Protection class Module IP 66 Terminals IP 20 Terminals with cover IP 30 Terminals 2.5 mm2, fine stranded Labelling front panel label for markings Display LEDs on front panel Storage temperature -40 °C to +60 °C Ambient temperature -20 °C to +60 °C rnUriDUO-illLci Iduc Features ■ 16 channels ■ 24 V/500 mA outputs ■ Direct control of solenoid valves ■ Galvanic isolation ■ LED display ■ EMC according to DIN EN 61000-4-2: 2001, DIN EN 61000-4-3: 2008, DIN EN 61000-4-4: 2003, DIN EN 61000-4-6: 2007 ■ Programmable address on front panel Status Outputs ON, BF, SF 16 x LED yellow, active ■ Output data Supply voltage (U+, U-) DC 24 V (18 to 30 V) Power consumption P = 240 W (max.) Power dissipation P = 7 3 W Reverse voltage protection Yes Short-circuit protection conditionally short-circuit-proof Output voltage Supply voltage - 0.18 V Output current 500 mA at Ty = +40 °C 400 mA at Ty = +60 °C Guidelines/norms/certifications Directive 2004/108/EC Directive 94/9/EC Weight 2.1 kg ZM Explosion protection Ex protection type <g> II 2G Ex de IIC <g> I M2 Ex de I Certification PTB 97 ATEX 1066 U Wiring diagram/terminal assignment 13 14 15 16 17 18 19 20 21 22 23 24 Notes ■ Last bus module in system: Bridge A-AX (terminals 30, 33) Bridge B-BX (terminals 29, 32) ■ GSD-file: BARX2901.gsd 16 x Digital out ADDRESS ON BF SF 16 15 14 13 ^ Order no. 07-7331-2301/0000 Technical data subject to change without notice. 25 26 27 28 29 30 32 33 U- U+ PA PA L- L+ 90

Open the catalog to page 1
