• Ethernet interface for network connectivity.
• Easy front panel fitting for installation.
• Intrinsically safe USB interface for secure connections.
• Graphics-capable TFT color display with optional touch screen and WLAN.
• Siemens PROFIBUS-DP/MPI-Interface for enhanced communication.

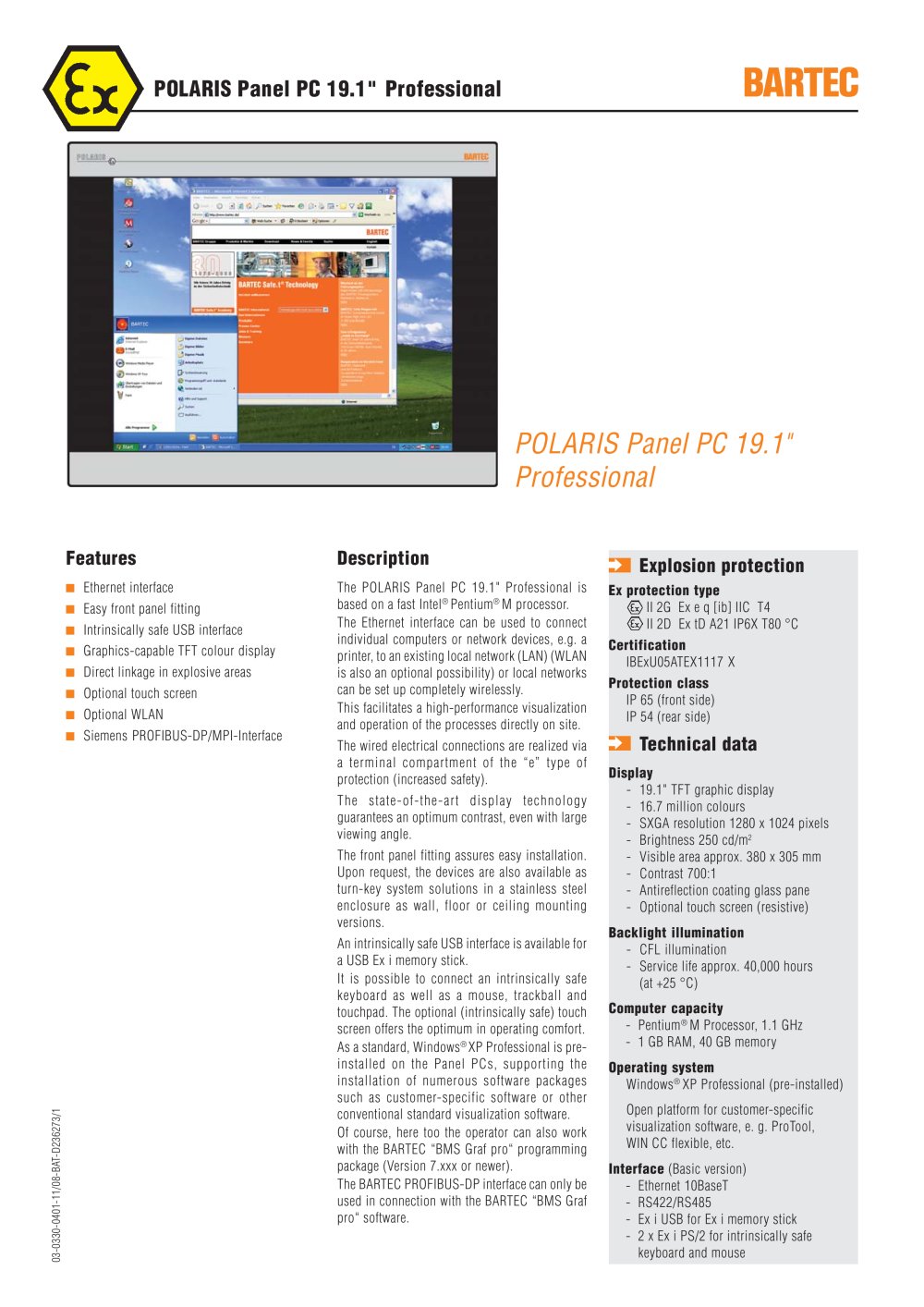

The POLARIS Panel PC 19.1" Professional is equipped with a fast Intel® Pentium® M processor, designed for high-performance visualization and operation in explosive areas. It supports both wired and wireless network setups, with an optional WLAN feature. The device is available in various mounting options and can be customized with a stainless steel enclosure.

It includes an intrinsically safe USB interface for memory sticks and supports additional peripherals like keyboards and mice. The standard operating system is Windows® XP Professional, allowing for the installation of various software packages, including BARTEC's “BMS Graf pro“.

• Ex protection type: II 2G Ex e q [ib] IIC T4, II 2D Ex tD A21 IP6X T80 °C.
• Certification: IBExU05ATEX1117 X.
• Protection class: IP 65 (front), IP 54 (rear).

• Display: 19.1" TFT, 16.7 million colors, SXGA resolution, brightness 250 cd/m2, contrast 700:1.
• Computer Capacity: Pentium® M Processor, 1.1 GHz, 1 GB RAM, 40 GB memory.
• Interfaces: Ethernet 10BaseT, RS422/RS485, Ex i USB, 2 x Ex i PS/2.
• Dimensions: 498 mm x 400 mm x approx. 135 mm, weight approx. 33 kg.
• Power Supply: AC 230 V ± 10 %, 50 to 60 Hz, max. power consumption < 70 W.
• Environmental Conditions: Storage -20 °C to +50 °C, operation 0 °C to +50 °C, humidity 5 to 95 % non-condensing.

• Supply module for hand-held scanner.
• USB direct connection via Ex d socket.
• Various RS422/RS485 and PROFIBUS-DP configurations available.

Technical data is subject to change without notice, and further interface combinations are available upon request.
