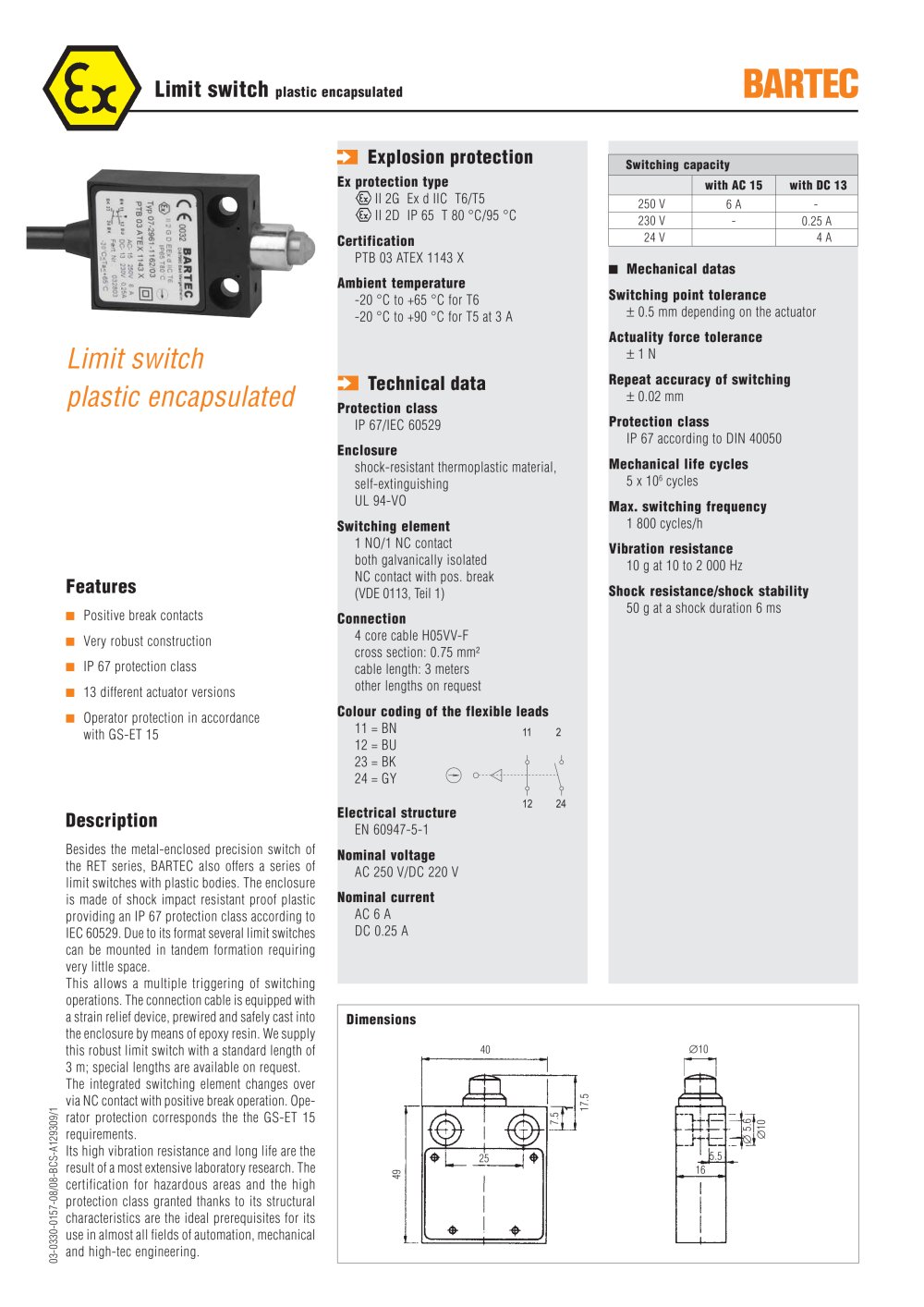

Specifications:
The limit switch is plastic encapsulated with a switching point tolerance of ±0.5 mm and an actuality force tolerance of ±1 N. It has a repeat accuracy of ±0.02 mm and is rated IP 67 according to DIN 40050. The mechanical life cycle is 5 million cycles with a maximum switching frequency of 1,800 cycles per hour. It can withstand vibrations of 10 g at 10 to 2,000 Hz and shock resistance of 50 g at a shock duration of 6 ms.

Description:
The limit switch features a plastic body that is shock impact resistant and provides IP 67 protection. It can be mounted in tandem formation for multiple triggering of switching operations. The connection cable is prewired with a strain relief device and cast into the enclosure with epoxy resin. The switch is available with a standard cable length of 3 meters, with special lengths available upon request. It includes a switching element with NC contact and positive break operation, meeting GS-ET 15 requirements for operator protection.

Features:
- Positive break contacts
- Robust construction
- IP 67 protection class
- 13 different actuator versions
- Operator protection according to GS-ET 15

Technical Data:
The enclosure is made of shock-resistant thermoplastic material, self-extinguishing UL 94-VO. It includes a 1 NO/1 NC contact, both galvanically isolated, with a 4-core cable H05VV-F. The nominal voltage is AC 250 V/DC 220 V, and the nominal current is AC 6 A/DC 0.25 A.

Explosion Protection:
The switch is certified with Ex protection type II 2G Ex d IIC T6/T5 and II 2D IP 65 T 80 °C/95 °C, with certification PTB 03 ATEX 1143 X. The ambient temperature ranges from -20 °C to +65 °C for T6 and -20 °C to +90 °C for T5 at 3 A.

Actuator Options:
Various actuator options are available, including membrane plunger, spherical plunger, roller plunger, and more, each with specific order numbers.
