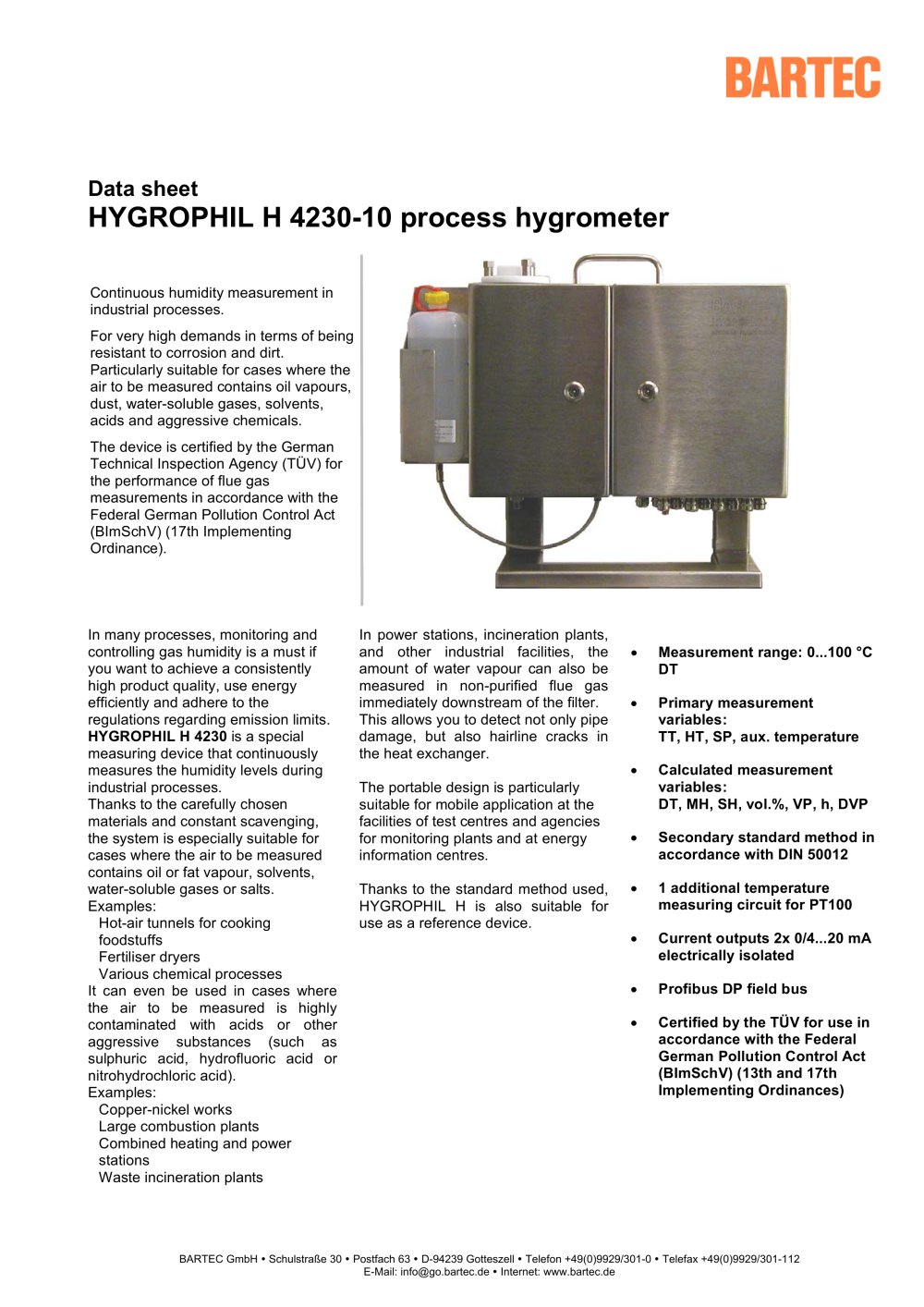

HYGROPHIL H - Process hygrometer - 4230-10 - 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } Data sheet HYGROPHIL H 4230-10 process hygrometer Continuous humidity measurement in industrial processes. For very high demands in terms of being resistant to corrosion and dirt. Particularly suitable for cases where the air to be measured contains oil vapours, dust, water-soluble gases, solvents, acids and aggressive chemicals. The device is certified by the German Technical Inspection Agency (TUV) for the performance of flue gas measurements in accordance with the Federal German Pollution Control Act (BImSchV) (17th Implementing Ordinance). In many processes, monitoring and controlling gas humidity is a must if you want to achieve a consistently high product quality, use energy efficiently and adhere to the regulations regarding emission limits. HYGROPHIL H 4230 is a special measuring device that continuously measures the humidity levels during industrial processes. Thanks to the carefully chosen materials and constant scavenging, the system is especially suitable for cases where the air to be measured contains oil or fat vapour, solvents, water-soluble gases or salts. Examples: Hot-air tunnels for cooking foodstuffs Fertiliser dryers Various chemical processes It can even be used in cases where the air to be measured is highly contaminated with acids or other aggressive substances (such as sulphuric acid, hydrofluoric acid or nitrohydrochloric acid). Examples: Copper-nickel works Large combustion plants Combined heating and power stations Waste incineration plants In power stations, incineration plants, and other industrial facilities, the amount of water vapour can also be measured in non-purified flue gas immediately downstream of the filter. This allows you to detect not only pipe damage, but also hairline cracks in the heat exchanger. The portable design is particularly suitable for mobile application at the facilities of test centres and agencies for monitoring plants and at energy information centres. Thanks to the standard method used, HYGROPHIL H is also suitable for use as a reference device. Measurement range: 0...100 °C DT Օ Primary measurement variables: TT, HT, SP, aux. temperature Calculated measurement variables: DT, MH, SH, vol.%, VP, h, DVP Օ Secondary standard method in accordance with DIN 50012 1 additional temperature measuring circuit for PT100 Օ Current outputs 2x 0/4...20 mA electrically isolated Profibus DP field bus Օ Certified by the TV for use in accordance with the Federal German Pollution Control Act (BImSchV) (13th and 17th Implementing Ordinances) BARTEC GmbH ٕ Schulstrafte 30 Postfach 63 Օ D-94239 Gotteszell Telefon +49(0)9929/301-0 Օ Telefax +49(0)9929/301-112 E-Mail: info@go.bartec.de Internet: www.bartec.de

Open the catalog to page 1
HYGROPHIL H - Process hygrometer - 4230-10 - 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } Technical data Humidity measurement Measurement principle Psychrometric gas humidity measurement in line with the impact jet method Transducer PT 100/ 4-conductor in accordance with DIN IEC 751 Computational accuracy < 0.01% Computing time Approx. 2s Settling time tgo = 90s (for sudden change in SH from 10 to 190 g/kg) Air/gas throughput Max. 17,5 Nl/min Water intake...

Open the catalog to page 2
HYGROPHIL H - Process hygrometer - 4230-10 - 3

Dimensions Assembly drill holes > HYGROPHIL H Type 4230-10DB 030329 (13.04.2006)Page 3 size="-1">

Open the catalog to page 3
HYGROPHIL H - Process hygrometer - 4230-10 - 4

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:27.00pt "Arial", sans-serif; } Assignment of terminais External External water PT 100 Warn- Error- Power PROFIBUS detector 5 0LJT 1 OUT 2 relay relay Heating supply +5V A B 0V + |N _ ^^+- + -Tl/1rnL N PEL N PE The Profibus cable is connected to terminais 2 (Profibus A) and 3 (Profibus B). HYGROPHIL H Type 4230-10 DB 030329 (13.04.2006) Page 4

Open the catalog to page 4
HYGROPHIL H - Process hygrometer - 4230-10 - 5

HYGROPHIL H 4230-10 Corrosion-proof, 115/230 V a.c.Scope of delivery:Hygrophil-H in accordance with order number,compressed air maintenance unit, Type 4220-30 and 1 litre of surfactant Order number: 202728 > Measurement gas tube, Type 4230-100 Flexible,water-resistant heating tube for feeding measurement gas without condensate (max. input temperature 200 C) Including 1 mount per metre Operating voltage: 230 V a.c. or 115 V a.c.Connectiontype:Universal conical nipple G3/8Д DKR DIN3863 Order numbers: Length 1m 202729Order numbers for 115 V version on request (230 V) Length 2m 216375...

Open the catalog to page 5
HYGROPHIL H - Process hygrometer - 4230-10 - 6

Adapter for gas sampling hose, Type 4230-00-044 (DKR-3/8 to NPT-1/4ӓ) Order number: 214017 Adapter for gas sampling hose, Type 4230-00-046 (DKR-3/8 to 8 mm Swagelok) Order number: 215084 Standard filter, Type 4220-100 Including filter cartridge 150-ӵm CrNi Steel 1.4404 Order number: 208686 Gas sampling sensor Type SP 2000 GF 150 Order number: 214334 Sampling pipe for Gas sampling sensor TypeSP 2000/SS Order number: 214333 > HYGROPHIL H Type 4230-10DB 030329 (13.04.2006)Page 6 size="-1">

Open the catalog to page 6
HYGROPHIL H - Process hygrometer - 4230-10 - 7

Adapter for gas sampling hose 4220 to 4230, Type 4230-101 Order number: 216421 Wall holder, Type 4220-36 Order number: U 3401422036 Stand holder, Type 4220-35 Order number: U 3401422035 > HYGROPHIL H Type 4230-10DB 030329 (13.04.2006)Page 7 size="-1">

Open the catalog to page 7
HYGROPHIL H - Process hygrometer - 4230-10 - 8

Compressedair maintenance unit, Type 4220-30 With compressed air regulator and filter Order number: U 3401422030 > Tube pump cartridge, Type 4230-104 Order number: 216422 Measuring chamber with ejector, Type 4230-301 Without probes Order number: 202383 Water sensor, Type 4230-302 For monitoring the fill level in the measuring cell Order number: 202823 > HYGROPHIL H Type 4230-10DB 030329 (13.04.2006)Page 8 size="-1">
