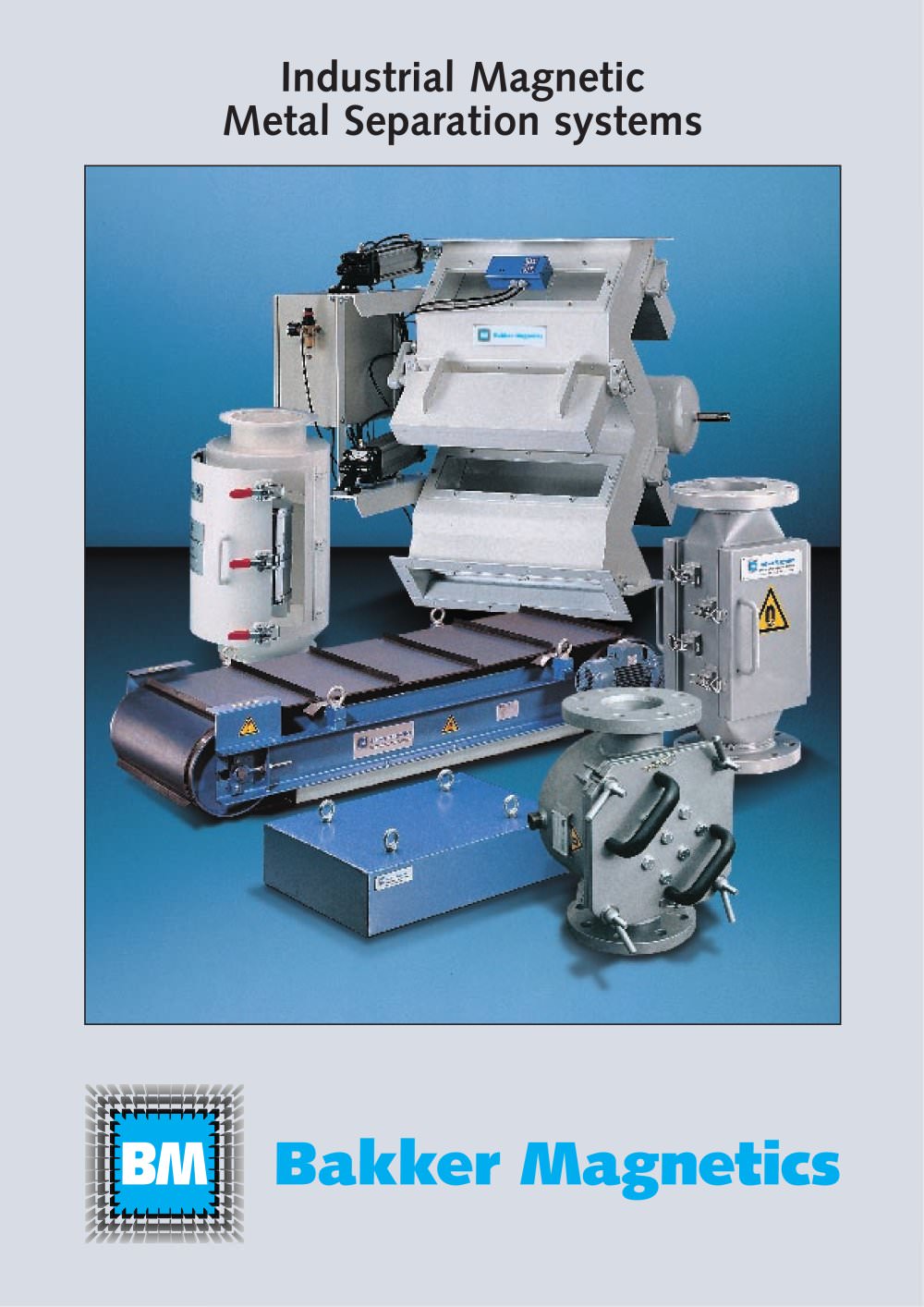

Industrial Magnetic Metal Separation systems
40Pages

Industrial Magnetic Metal Separation systems >

Integrated quality control has a very high priority in theBakker Magnetics' organisation. This is evident from its products and systems. It also includes the services - from development to after-sales - and Bakker Magnetics was the first company in its field to be awarded the ISO 9001 certificate. From a very early stage, people were convinced that it was of strategic importance that the whole range of products and systems meet the most stringent quality standards. For our ferrous separation systems, this not only means that the various systems very accurately match the specifications but...

Bakker Magneticsmagnetic filter in the chocolate industry (double walled version) Bakker Magnetics external chute magnet in the transportsystem for bulk goods Bakker Magnetics Magbox ferrous separation system inthe feed industry Various Bakker Magnetics ferrous separation systems canbe supplied in sanitary models which are especially suit- able for the food industry and other applications where stringent hygiene standards are demanded. The sanitary systems are manufactured entirely from AISI 304 stainless steel, or they can be supplied in AISI 316 stainless steel if required. Particular...

Drum magnet in use for mineral extraction Overband magnet system in a cryogenic installationPipe magnet in the flour industry Removal of iron from rubber granulate in the recycling ofcar tyres 6 >

Bakker Magnetics Plate magnets, type FDA Depth of effective magnetic field - plate magnets > Plate magnets are used for removing ferrous materialsfrom material flows on conveyor belts, during free-fall, in vertical or sloping pipelines, under chutes and slides, etc. This type of plate magnet is fitted with powerful ceramicmagnets mounted in such a way that an extra strong, deep magnetic field is generated (see table). The sur- faces of the magnet that can come in contact with the material flow are made of stainless steel (AISI 304). This type of plate magnet is fitted with a steel plate on...

Various Bakker Magnetics ferrous separation systems areavailable in so-called sanitary models. These models are particularly suitable for the food industry and other appli- cations in which high standards of hygiene are required. The sanitary systems are fabricated entirely from AISI 304 stainless steel. If required, they can also be made in AISI 316 stainless steel. Particular attention has been paid to the surface treatment (stellated inside and outside). All sanitary models are fitted with flanges meeting the stan- dard DIN 2576 ND 10. Both in the design and in the manufacture, great...

Automatic version of a cascade magnet system > Cascade magnet systems are used in situations whereferrous particles have to be removed thoroughly from large quantities of raw materials. Cascade systems are available in manual and automatic models and are strongly built with a 4 mm thick stainless steel or steel housing. Bakker Magnetics cascade systems have a wide range of uses and are easy to incorporate in existing sys- tems. A valve box is built in to the cascade systems to remove the ferrous particles that have been collected. Once the valve box has been opened, the magnets can be...

for ferrous separation from liquids These magnet filters are used to filter ferrous particlesfrom liquids and they are frequently used in hydraulic circuits and cooling systems. The magnet system is con- structed from ceramic magnets and the unit is built into a stainless steel (AISI 304) casing. For cleaning, the magnet system is simple to remove by undoing several quick-release fasteners. A special double-walled version is available for use in heated pipeline systems (for exam- ple, separating ferrous particles from molten chocolate and cheese). Bakker Magnetics magnet filters are avail-...

GDLEBFCADBHGEF DIN2576 ND10 NW80 BM 20.100...BM 20.250... Equipped with ceramic magnets as standard. For versions with Neodymium magnet systems, add "/01" to the article number. Magnet filters in standard versions Magnet filters in sanitary model with Din 2576 ND10 flanges* Heavy-duty magnet filters in version with Din 2576 ND10 flanges* Art.no.press. > cap. number > ABCDEFG weight > (Bar)(l/min) bars > (kg)BM 20.100**32509160206751103029224023BM 20.101**332514195256801453034229031BM 20.102**340019190306801403039234044BM 20.2003300916020675--292-21BM 20.20133751419525680--342-30BM...

Bakker Magnetics ceramic magnet grid - circular version > Permanent magnet grids are placed in pipeline systems,hoppers, chutes, etc., to separate ferrous particles from materials flowing past the grid.To ensure durability against corrosion and wear and tosupply good mechanical strength, all parts of the casing that come in contact with the material to be decontami- nated are made from stainless steel (AISI 304). By care- fully calculating the dimensions of the entire system, the resistance to the material flowing through is small and the chance of bridges forming is minimal. Bakker...

Bakker Magnetics overband systems in the waste disposal and recycling industries > for the waste disposal and recycling industries The waste disposal and recycling industries use differentmetal separation systems to those already described in this brochure. This branch of industry tries to isolate raw materials from other waste in an environmentally-friend- ly way so that metals can be economically recycled. Conventional systems such as overbelt systems, separa- tion drums and head rollers have been improved over the past few years and more functionality has been added. Also, more types can...

Overbelt magnet system mounted transversely over theconveyor belt. Overbelt magnet system mounted longitudinally overthe end roller of the conveyor belt. Bakker Magnetics permanent overbelt magnet system. This type of ferrous separation system from BakkerMagnetics is equipped with a powerful permanent mag- net. The standard drive for the overbelt magnet system (up to and including the 320 series) is a drum motor. On the 400 and 500 series, the standard drive is by means of a shaft-mounted reduction motor. If required, the belt on the 220 series can also be equipped with the same sort of...
