BM magnetic sheeting

Product catalog summary

Product Overview
BM magnetic sheeting is a high-quality product composed of ferrite powders and thermoplastics, meeting the European Standards for Toys, EN71-3.

Magnetic Properties

Maximum Energy Product: 0.65 to 0.75 MGOe
Remanence: 1600-1900 G
Coercivity: 1200-1500 Oe
Intrinsic Coercivity: 2200-2500 Oe
Magnetic Pole Width: 2.0 mm
Magnetic Pull varies with thickness: 0.4 mm (12 g/cm²), 0.5 mm (29 g/cm²), 0.75 mm (45 g/cm²), 2.00 mm (59 g/cm²)

Physical Properties

Flexibility: Can be wrapped around a rod with a 12 mm radius at 20°C without cracking.
Specific Density: 3.7 to 3.8 g/cm³.
Cutting: Suitable for scissor cutting, knife-cutting, die-cutting, and slitting.

Temperature Resistance

End-use temperature range: -20°C to +50°C
Short term resistance: 70°C

Backcoating
The magnetic sheeting features a UV hardened coating on the magnetic side.

Magnetisation
Magnetised with equally spaced magnetic poles parallel to the roll-length with a pole width of 2.0 mm.

Standard Dimensions

Natural: Widths of 615/1000 mm, thicknesses from 0.4 to 2.0 mm, lengths from 2 to 60 meters.
White/Coloured/Adhesive: Widths of 615/1000 mm, thicknesses from 0.5 to 1.6 mm, lengths from 10 to 60 meters.
Customized widths or lengths and/or sheets available on request.

Catalog excerpts

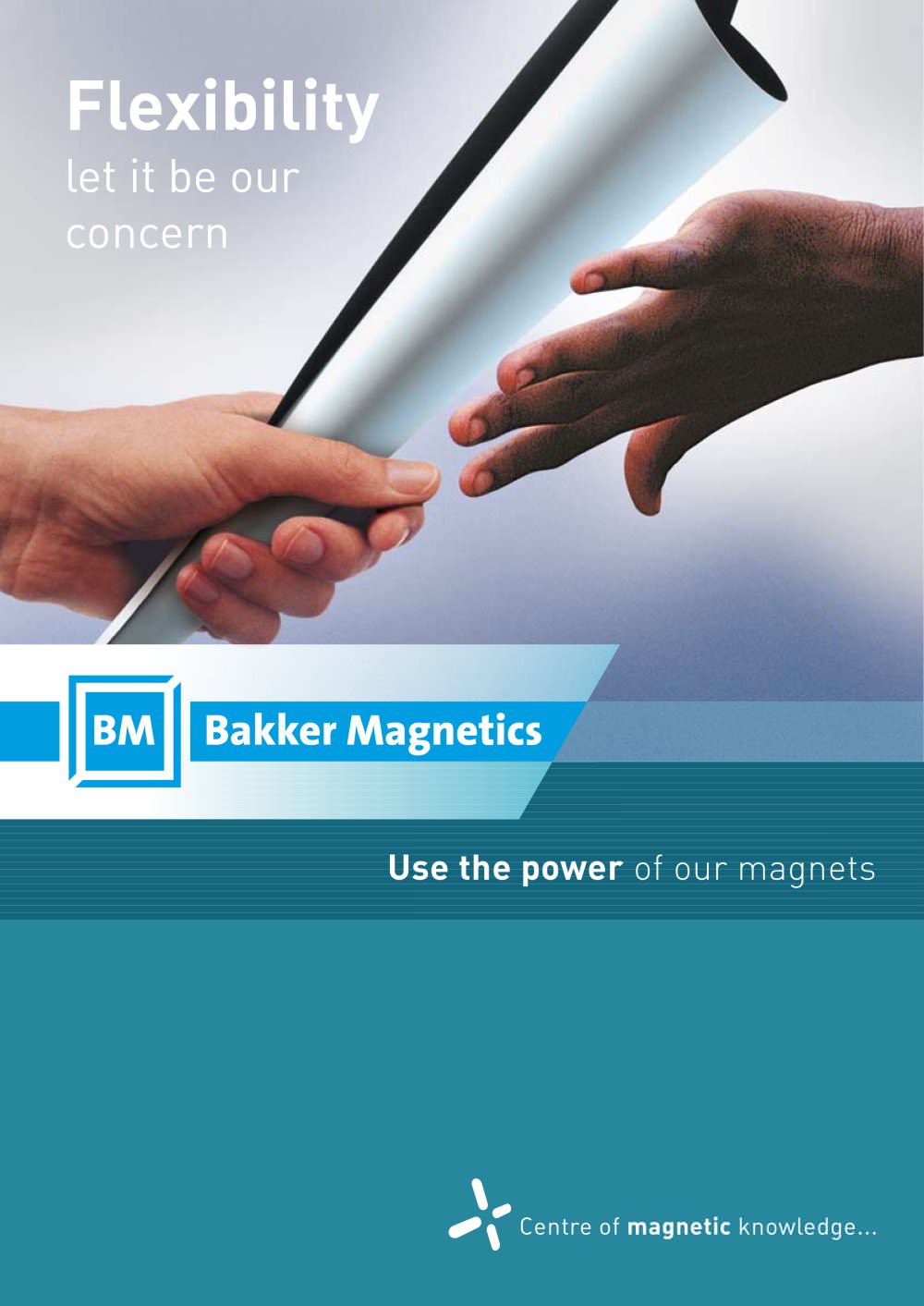

Flexibility let it be our concern Use the power of our magnets Centre of magnetic knowledge...

Open the catalog to page 1

Bakker Magnetics b.v. Sciencepark Eindhoven 5502 5692 EL Son - The Netherlands E-mail: [email protected] Phone: +31 40 2 678 678 Fax: +31 40 2 678 899 www.bakkermagnetics.com Centre of magnetic knowledge... BM magnetic sheeting meets all requirements of the European Standards for Toys Product Description BM magnetic sheeting is a high quality product made of ferrite powders and thermoplastics. BM magnetic sheeting meets all requirements of the European Standards for Toys, EN71-3. Magnetic Properties Maximum Energy Product: 0.65 to 0.75 MGOe Remanence: 1600-1900 G Coercivity: 1200-1500...

Open the catalog to page 2
