BDT12 - All stainless steel diaphragm pressure gauge

BDT12 - All stainless steel diaphragm pressure gauge
2Pages

Catalog excerpts

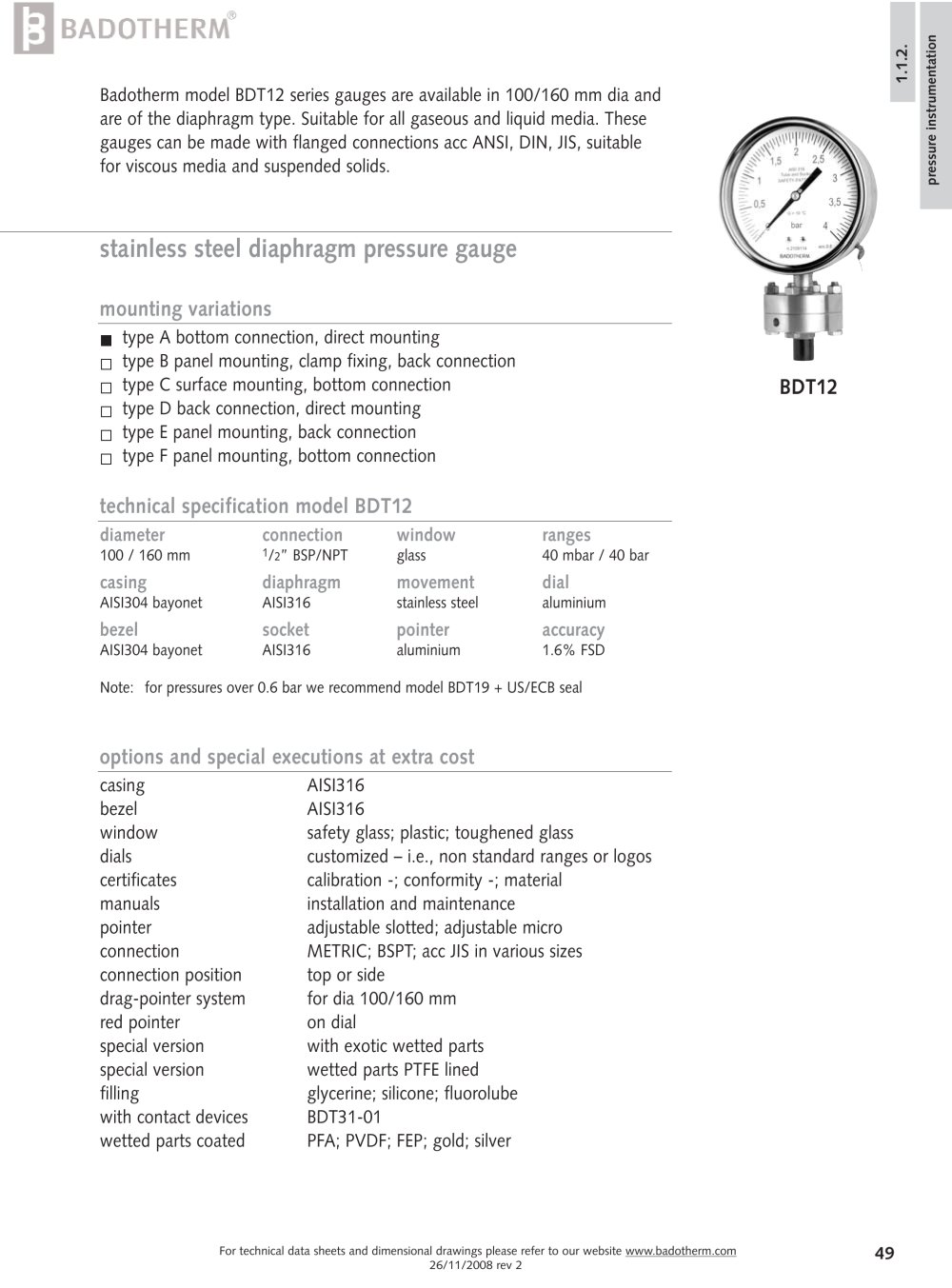

BDT12 - All stainless steel diaphragm pressure gauge - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 26/11/2008 rev 2 1.1.2. 49 pressure instrumentation BDT12 stainless steel diaphragm pressure gauge Badotherm model BDT12 series gauges are available in 100/160 mm dia and are of the diaphragm type. Suitable for all gaseous and liquid media. These gauges can be made with flanged connections acc ANSI, DIN, JIS, suitable for viscous media and suspended solids. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT12 diameter connection window ranges 100 / 160 mm 1/2” BSP/NPT glass 40 mbar / 40 bar casing diaphragm movement dial AISI304 bayonet AISI316 stainless steel aluminium bezel socket pointer accuracy AISI304 bayonet AISI316 aluminium 1.6% FSD Note: for pressures over 0.6 bar we recommend model BDT19 + US/ECB seal options and special executions at extra cost casing AISI316 bezel AISI316 window safety glass; plastic; toughened glass dials customized – i.e., non standard ranges or logos certificates calibration -; conformity -; material manuals installation and maintenance pointer adjustable slotted; adjustable micro connection METRIC; BSPT; acc JIS in various sizes connection position top or side drag-pointer system for dia 100/160 mm red pointer on dial special version with exotic wetted parts special version wetted parts PTFE lined filling glycerine; silicone; fluorolube with contact devices BDT31-01 wetted parts coated PFA; PVDF; FEP; gold; silver

Open the catalog to page 1

BDT12 - All stainless steel diaphragm pressure gauge - 2

pressure details working pressure pressure element over-pressure temperature details temperature limitations The variation of indication caused by the effects of temperature shall not exceed : ±0,08 x (ambient temperature-reference temperature)% of the span design information ingress protection design IP 65 per EN 60 529 / IEC 529 EN 837-3 drawings BDT12 - technical data sheet process 200 ºC 60 ºC 90 ºC ambient -40 ºC to 60 ºC -25 ºC to 60 ºC -40 ºC to 60 ºC without filling glycerine filling silicone filling type A type A dimensions ns d d1 L H G weight 100 LP 110 100 50 200 160 1,76 kg 160...
