APC - Aseptic flush diaphragm chemical seal

APC - Aseptic flush diaphragm chemical seal
2Pages

Catalog excerpts

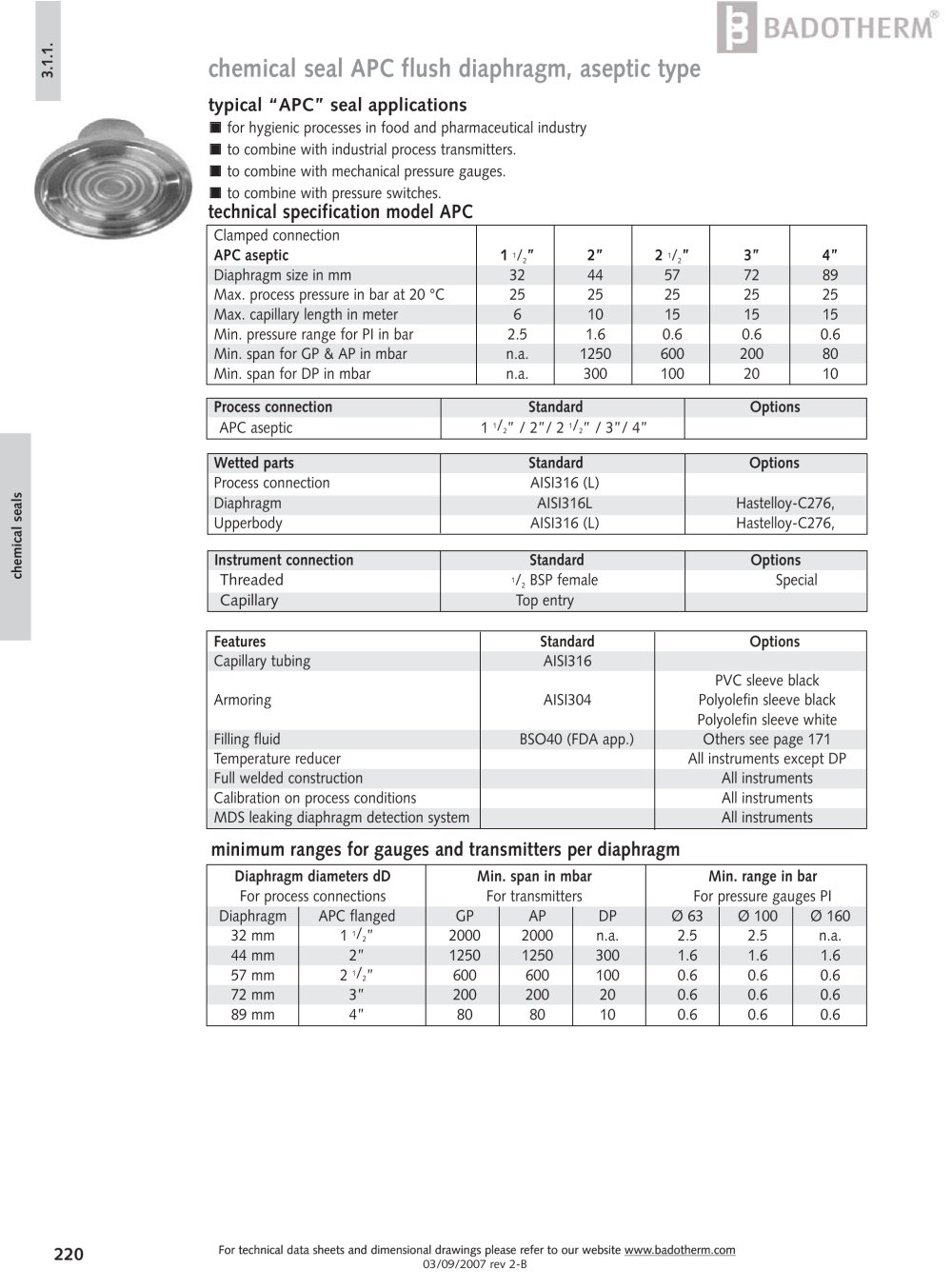

APC - Aseptic flush diaphragm chemical seal - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 03/09/2007 rev 2-B 220 chemical seals 3.1.1. chemical seal APC flush diaphragm, aseptic type typical “APC” seal applications for hygienic processes in food and pharmaceutical industry to combine with industrial process transmitters. to combine with mechanical pressure gauges. to combine with pressure switches. technical specification model APC Clamped connection APC aseptic 1 1/2” 2” 2 1/2” 3” 4” Diaphragm size in mm 32 44 57 72 89 Max. process pressure in bar at 20 °C 25 25 25 25 25 Max. capillary length in meter 6 10 15 15 15 Min. pressure range for PI in bar 2.5 1.6 0.6 0.6 0.6 Min. span for GP & AP in mbar n.a. 1250 600 200 80 Min. span for DP in mbar n.a. 300 100 20 10 Process connection Standard Options APC aseptic 1 1/2” / 2”/ 2 1/2” / 3”/ 4” Features Standard Options Capillary tubing AISI316 PVC sleeve black Armoring AISI304 Polyolefin sleeve black Polyolefin sleeve white Filling fluid BSO40 (FDA app.) Others see page 171 Temperature reducer All instruments except DP Full welded construction All instruments Calibration on process conditions All instruments MDS leaking diaphragm detection system All instruments minimum ranges for gauges and transmitters per diaphragm Diaphragm diameters dD Min. span in mbar Min. range in bar For process connections For transmitters For pressure gauges PI Diaphragm APC flanged GP AP DP Ø 63 Ø 100 Ø 160 32 mm 1 1/2” 2000 2000 n.a. 2.5 2.5 n.a. 44 mm 2” 1250 1250 300 1.6 1.6 1.6 57 mm 2 1/2” 600 600 100 0.6 0.6 0.6 72 mm 3” 200 200 20 0.6 0.6 0.6 89 mm 4” 80 80 10 0.6 0.6 0.6 Wetted parts Standard Options Process connection AISI316 (L) Diaphragm AISI316L Hastelloy-C276, Upperbody AISI316 (L) Hastelloy-C276, Instrument connection Standard Options Threaded 1/2 BSP female Special Capillary Top entry

Open the catalog to page 1

APC - Aseptic flush diaphragm chemical seal - 2

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 01/01/2006 rev 2 221 3.1.1. chemical seals APC aseptic connection seal temperature effect on transmitter, capillary and seal Diaphragm diameters dD Temp. effect in mbar Temp. effect in mbar For process connections For DP transmitters For GP /AP transmitters Diaphragm APC flanged DP Seal Cap /mtr GP/AP Seal Cap / mtr 32 mm 1 1/2” n.a. n.a. n.a. n.a. n.a. n.a. 44 mm 2” 0.20 1.24 2.28 1.90 4.90 10.3 57 mm 2 1/2” 0.15 0.66 0.63 1.70 2.65 3.9 72 mm 3” 0.10 0.24 0.20 0.55 0.95 1.2 89 mm 4” 0.04 0.09...

Open the catalog to page 2
