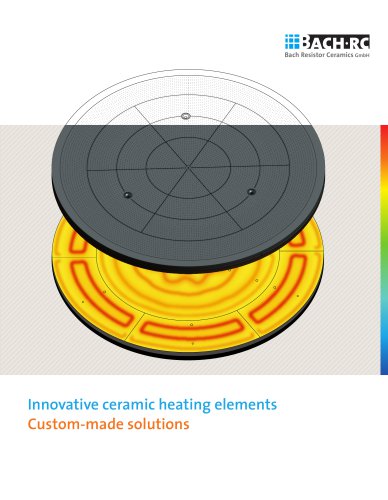

Bach Resistor Ceramics GmbH Bach Resistor Ceramics GmbH Innovative ceramic heating elements Custom-made solutions

Market segments of our products 6% Other 5% Heaters for Tools 13% Radiation Heaters for PVD/CVD 4% Heaters for Plastic Packaging 23% Heated Bars

Worldwide export of BACH RC products Europe Austria Belgium Czech Republic Denmark Estonia Finland France Hungary Italy Liechtenstein Lithuania Norway Poland Slovakia Slovania Spain Sweden Switzerland The Netherlands United Kingdom Asia China India Israel Japan Singapore South Korea Taiwan Australia South America Chile Brazil

Bach RC is a dynamic family business with tradition. Thanks to our own patented technology, our innovative ceramic heating elements are outstanding in their high power density and durability. Our team of highly skilled, specialized staff all work together with the same objective: “Generating the heat where it is needed.” We are focused on the development of innovative solutions for every requirement. More than 1,000 customers around the world trust in the quality of our ceramic heating elements. Bach RC supplies manufacturers of semiconductor processing systems, machine building industries, automobile...

more than 1,000 satisfied customers worldwide from research lab (until 1997) to our own production site (2006) family business with generation change in 2006 customers: small companies to globally operating corporations 1,000 different heating elements and equipment extension of the production area in 2010 and 2013 up to 3,000 square meters custom-made solutions 2 heated areas from 1mm to O 480mm

Our 100% ceramic heating elements are made of silicon nitride or aluminum nitride with an integrated ceramic heating conductor. Due to its low density, the ceramic material has a number of advantages over against conventional metallic heating elements. Temperatures up to 1,000°C can be handled with low energy consumption. This extraordinary technology enables manufacturing of high-performance ceramic heating elements in various shapes and sizes. Silicon nitride and aluminum nitride ceramics are highly resistant to wear and oxidation as well as to corrosive gases and chemicals, thus enabling outstanding...

Basic material thermal shock resistance (AT) K flexural strength (oBB;min) MPa coefficient of thermal expansion (a) 10-6 K-1 specific heat (cp) J/(kgK) critical stress intensity factor (Kk) MPa m1/2 Surface load in resting air in moving air (40m/s) in water maximum pressed pressed volume resistivity of the insulator (at RT) Q-cm 1015 1013 dielectric strength (at RT) kV/mm 17 25 Bach RC's ceramic heating elements can be operated at DC or AC. The thermal shock resistance depends on the geometric shape of the heater. Emission spectrum Fully ceramic heating elements are long-wave infrared radiators...

Surface power of silicon nitride heaters 20.0 Surface power in W/cm2 Resistance change in dependence on temperature Emission spectrum of silicon nitride heaters at 1,000°C > High-precision ceramic processing

Flat heating elements made of high-performance ceramics Our flat heating elements made of silicon nitride ceramics can be operated in air up to 500°C and optionally up to 1,000°C. The adjustment of the heater to the respective application is achieved through compensation of heat loss or integration of several zones for separate temperature control. Temperature sensors can easily be integrated for exact temperature measurement in the required exact location. Our flat heating elements are available in different standard sizes as well as in custom-made designs. The design of the heaters can be customized...

< 2kW hotplate for the operation in air up to 1,000°C with a sectional view of the design of the heating conductor Hot plates for industrial applications Our hot plates are usually rectangular or round but can be adjusted to the dimensional requirements of your system. Features such as holes and slots for rotational alignment and shallow holes for thermosensors can be integrated. Using 3D design and FEA, the ceramic heating conductor can be designed exactly to the heat dissipation requirements of the application. Multi-zone heaters can be manufactured to achieve superior temperature uniformity....

< Ring-shaped tool heater with 1kW power at 40mm outer diameter Heating rings made of high-performance ceramics Our heating rings can be operated at temperatures up to 500°C and optionally up to 1,000°C. Various standard sizes are available as well as custom-made designs. Features such as holes, slots, grooves, and edge cutouts can be machined for fixation in the machine and for integration of thermosensors. The surface can be machined to flatness values down to < 1μm. Your advantages • Reduction of cycle times of your machines and processes. • Elimination of preheating time or reduction of heating...

Heating elements for packaging machines Heated comb for welding of foils > Our ceramic heating elements made of silicon nitride are available in various shapes and sizes, thus allowing the exact adjustment of the heating element to the dimensions of the goods to be packed. In general, our heaters are ring-shaped, rectangular or designed as heated rails. However, more specific shapes – such as ground cutting edges with directly heated blades or comb and cone structures – can be produced. Ramping curve of a heating element for packaging machines (45 x 25mm) 500 T in °C The good thermal conductivity...

We provide miniature heating elements with a surface power of up to 150W/CIT12 and heated areas as small as 1mm2. These heaters can be operated at up to i,ooo°C in air and are characterized by very fast heating and short cycle times. In contrast to metals, the low dilation of the ceramic material allows the heater surface to remain exceptionally flat even with fastchanging temperature. Due to the mechanical strength of hot-pressed silicon nitride it withstands high load and shows excellent wear resistance. The inert and chemically resistant ceramic material prevents any contamination of your...
