Babcock Wanson
Thermal Fluid Heater TPC

Thermal Fluid Heater TPC

Product catalog summary

Overview: The TPC series thermal fluid heaters are designed for industrial applications, providing low-pressure heat transfer at high temperatures. These heaters utilize a forced, controlled circulation of thermal fluid within a multi-tubular coil, ensuring balanced heat transfer and minimizing fluid degradation risks.

Specifications: The TPC series offers models with outputs ranging from 232 kW to 5820 kW. The heaters are available with optional equipment such as a motor-driven circulation pump unit, a deaerator expansion vessel, and a complete skid for pre-assembled boiler plants.

Dimensions and Capacities: The document provides detailed dimensions and capacities for various models, including total fluid volume and net weight. For example, the model with a 200 kW output has dimensions of 1067 mm x 665 mm x 1680 mm and a total fluid volume of 50 liters.

Optional Equipment: The optional equipment enhances the functionality and efficiency of the heaters, allowing for customized solutions based on specific industrial needs.

Manufacturer Information: Babcock Wanson reserves the right to modify specifications without notice. The company is located at 106/110 rue du Lt Petit-le-Roy, 94550 Chevilly-Larue, with contact details provided for further inquiries.

Catalog excerpts

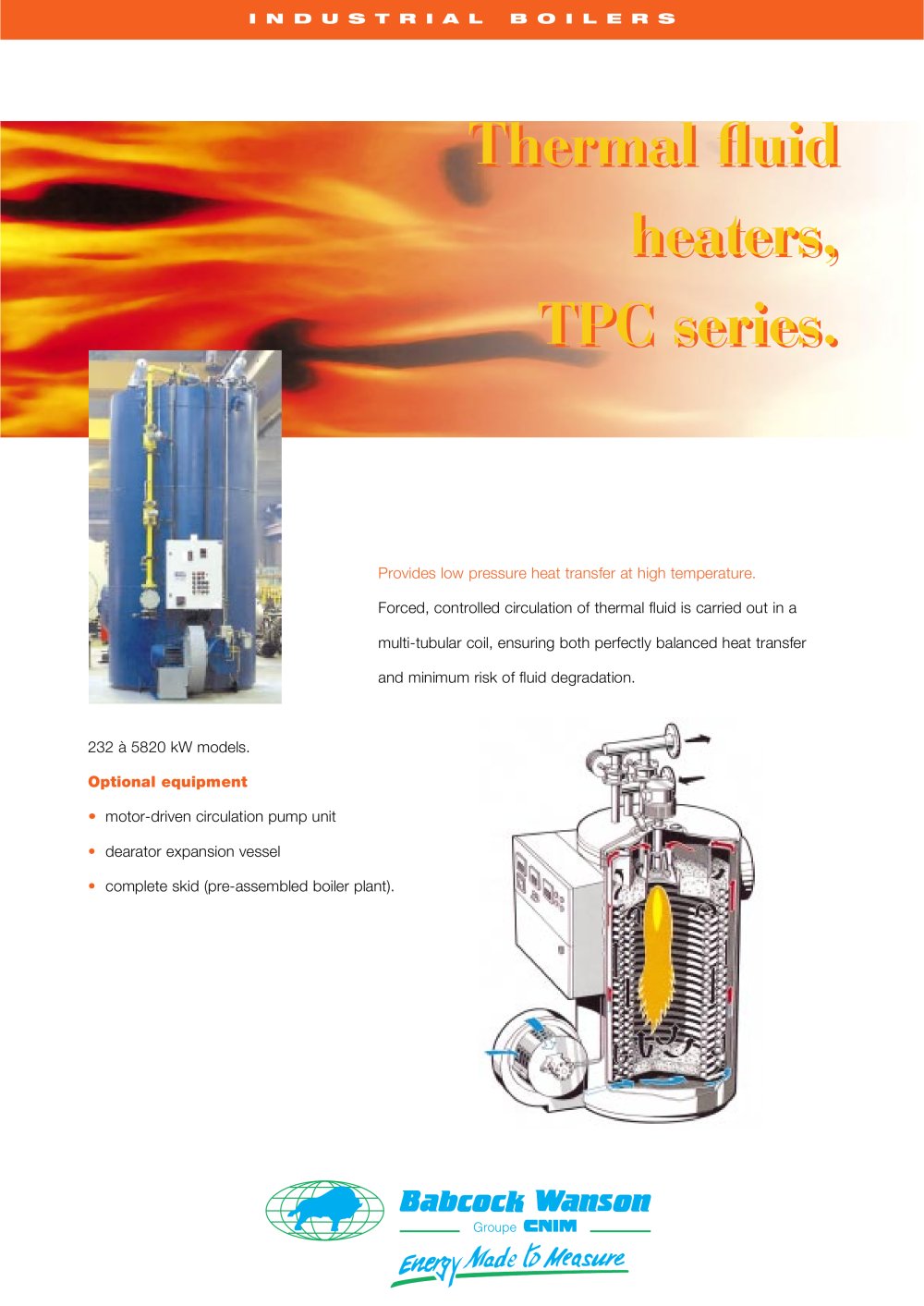

INDUSTRIAL BOILERS Provides low pressure heat transfer at high temperature.Forced, controlled circulation of thermal fluid is carried out in a multi-tubular coil, ensuring both perfectly balanced heat transfer and minimum risk of fluid degradation.232 5820 kW models. Optional equipment motor-driven circulation pump unitՕdearator expansion vesselcomplete skid (pre-assembled boiler plant). >

Open the catalog to page 1
