BRICK2 STORAGE NVMe is a removable storage solution with up to 60 TB capacity and 48 Gbit/s write performance, ideal for ADAS/AD measurement setups. It features hot-plug support, NVMe RAID system, and encryption readiness according to TCG OPAL 2.01, with simple OS-based management and a μController-based SIODI system for safe operation.
The x8 STORAGE device offers up to 96 Gbit/s sustained write performance, suitable for BRICK2 and DATALynx ATX4 systems. It includes a PCI Express 4.0 x8 host connection, hot-plug support, and a robust design for harsh environments, supporting encryption and simple device management.
This measurement card provides time-synchronized data capture with 6x 1000Base-T (g)PTB IEEE 802.1AS ports and PoE support, integrating with BRICK hardware for time synchronization and featuring a dedicated MAC/PHY controller for each port.
The BRICK BMC VB2 is a flexible measurement card based on FlexCard PMC-II, supporting up to 8 CAN FD interfaces. It offers a modular design and integrates with the μController-based SIODI system for safe operation.
COPYLynx ATX4 is a multi-ingest station for transferring large storage data to data centers or the cloud, supporting multiple Ethernet interfaces and offering full-autonomous data transfer with integrated cloud services and file encryption.
DATALynx ATX4 is a high-performance vehicle server designed for automotive applications, featuring a powerful liquid cooling setup, multiple add-ons for extensions, and compatibility with BRICK2 STORAGE solutions.
The EDSwitch 10G is a managed Ethernet switch offering up to 20 Gigabit ports with PoE support, designed for high-throughput and reliability in harsh environments, supporting a wide temperature range and various redundancy protocols.
The MDILink Measurement Data Interface supports high-bandwidth data throughput for ADAS and AD environments, offering various configurations for different serializer and deserializer technologies, ensuring robust data acquisition.
MDLake is a mobile data storage unit designed for SAN applications, offering up to 128 Gbit/s data throughput, supporting NVMe over Fabrics for compatibility, and featuring a robust design for automotive environments.
The document discusses the pros and cons of central and decentralized measurement technologies. Central systems offer unified hardware and predictable power dissipation, while decentralized systems provide flexibility and higher data quality but require more components and power supplies.
Overview: The MDSwitch SN2010 and SN2100 are high-performance Ethernet switches designed for mobile applications, such as test vehicles, offering data center-class performance.
Specifications:
- MDSwitch SN2010: Features 22 ports with flexible speeds from 1 Gb/s to 25 Gb/s, including 4 ports up to 100 Gb/s, supporting a throughput of 1.7 Tb/s and optimized latency.
- MDSwitch SN2100: Offers 16 ports with speeds from 1 Gb/s to 100 Gb/s, achieving a throughput of 3.2 Tb/s, supporting up to 64 10/25 GbE ports.
- Zero packet loss with true cut-through latency.
- Support for speeds of 1/10/25/40/50/56/100GbE.
- Software Defined Networking (SDN) support and Mellanox Onyx software.
- XTSS TSN time synchronization feature.
- RoHS compliant with low power consumption.

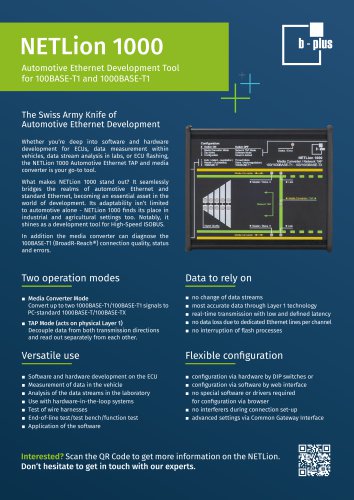

Overview: NETLion 1000 and 10G are automotive Ethernet development tools for 100/1000BASE-T1 and 2.5/5/10GBASE-T1 networks, facilitating data traffic logging, analysis, and conversion to standard Ethernet.
Key Features:
- Dual Media Converter and Network TAP modes.
- LED indicators for signal quality and operation mode.
- Web and software interfaces for diagnostics and configuration.
- Simple configuration via DIP switches and CGI.

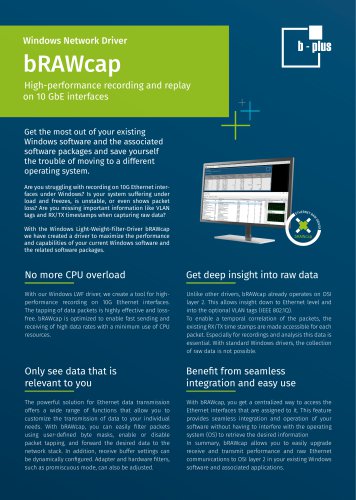

Overview: bRAWcap is a low-level Windows network driver for high-performance recording on 10G Ethernet interfaces, optimized for minimal CPU usage.
Key Features:
- Operates on OSI layer 2, supporting VLAN tagging and timestamping.
- Dynamic configuration of driver receive buffers.
- Seamless integration into Windows environments.

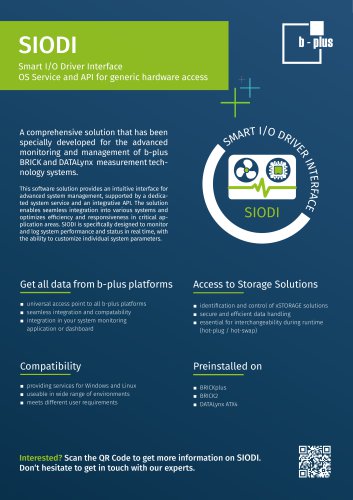

Overview: SIODI is a software layer for enhancing vehicle system operability and integration, providing comprehensive system monitoring and access.
Key Features:
- Supports advanced system monitoring and management.
- Generic access to b-plus in-vehicle platforms.
- OS service available for Windows and Linux.

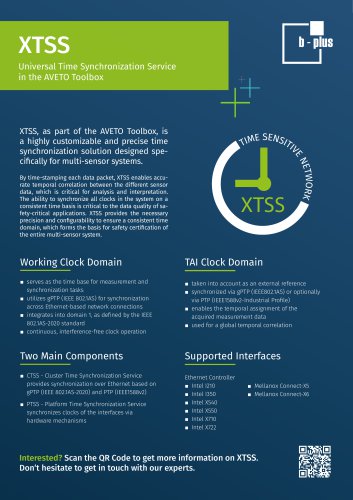

Overview: XTSS provides advanced time synchronization for distributed multi-sensor systems, ensuring reliable data fusion and accuracy.
Key Features:
- Zero packet loss with cluster and platform time synchronization.
- Hardware-based time sync architecture with GPS integration.
- Configuration tool and API for Windows and Linux.

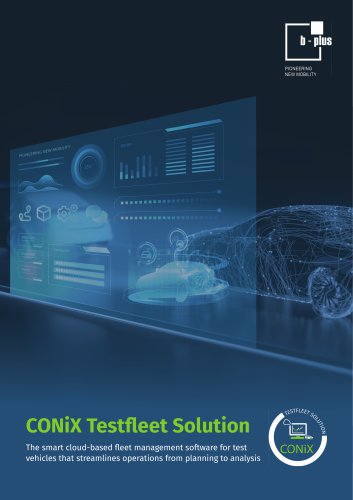

The CONiX Testfleet Solution Version 3.3.0 introduces the new 'Campaign Manager' feature, designed to enhance the management of test fleets, aiding test fleet managers, developers, test drivers, and engineers in managing test campaigns efficiently.
The Campaign Manager is a cloud-based tool that simplifies the planning, execution, monitoring, and evaluation of test drive projects, allowing for the creation and monitoring of test campaigns based on specific parameters such as test period, vehicle selection, and metadata evaluation.
This feature optimizes test fleet management, enhancing efficiency, data quality, and competitiveness in function validation speed.
b-plus expands its offerings with the CONiX Data Processing Solution, aimed at optimizing data systems for improved AI performance, ensuring high-quality data for AI systems, offering comprehensive data analysis, quality optimization, and transparency in data processing.
- Data set and label evaluation with a Quality Assurance Report.
- Specification creation tailored to use cases.
- Comprehensive support for labeling projects.
- Intelligent data capture with adaptive algorithms for metadata provision and efficient storage management.
The DIMMBoard DX86 is a nearly compliant DIMM-PC® module featuring a 32-Bit x86 DMP Vortex86DX processor, 256 MB DDR2 Memory, and support for embedded operating systems, designed for mobile embedded devices with low power consumption and extended temperature operation.
