Global Process Axxair

Product catalog summary

Overview: The document provides comprehensive details on AXXAIR's orbital cutting, welding, and bevelling machines, highlighting their specifications, features, and the range of models available. It emphasizes the unique technologies and capabilities of these machines.

Orbital Cutting (Range CC): This range includes 11 models with diameters from 5 mm to 1100 mm. Key features include a concentric clamping system to prevent tube deformation, stainless steel jaws for corrosion resistance, and a standard drive wheel for ease of use. These machines are lightweight, mobile, and offer high cutting precision, making them ideal for orbital welding.

Orbital Bevelling (Range GA): The GA range features machines with patented carbide technology, offering speeds 10 times faster than HSS tools. They can bevel in V and J shapes, suitable for both manual and automatic welding, and are designed for simplicity and cost-effectiveness, capable of handling hard materials like steel and duplex.

Orbital Welding (Range SC): AXXAIR's patented design ensures high-quality orbital welding, suitable for production and prefabrication. The machines offer optimal welding quality, passing stringent tests like x-ray inspections. They are user-friendly with an intuitive interface and come with options for torch cooling and additional features like AVC/OSC/WIRE.

Specifications: Machines are categorized into ranges such as SC, SATF, and SATO, each with specific diameter ranges and cooling options. For example, the SC121A/E model supports diameters from 12 to 121 mm and offers both air and water cooling options.

Procedures: The document outlines the processes for cutting, beveling, and welding, emphasizing the need for special bevel preparation for tube thicknesses over 3mm.

Features: Key features include a simple man-machine interface with a color touch screen, memory card storage for programs, and compatibility with 110 and 230V power supplies. The machines offer dynamic mode for parameter adjustments during welding and auto-calculation for program creation based on input diameter and tube thickness.

Accessories and Consumables: Various accessories such as cooling systems, wire feeders, and welding carts are available. The machines can be equipped with AVC (Arc Voltage Control), OSC (Oscillation), and wire feed options for enhanced performance. Consumables include carbide tips, LS blades, and benches for height adjustment.

Quality and Safety: The machines ensure optimal welding quality, passing strict tests like x-ray inspections. They include safety features like auto protection and fault management to monitor and react to malfunctions.

Ergonomics and Scalability: Designed for ease of use with quick installation and adjustment features, the machines are scalable, allowing upgrades with additional control cards and cooling systems.

Machine Ranges:

RANGE SATF: Compact with cooling included, quick jaw installation, reinforced protection, and a 100% duty cycle at 120A.
RANGE SATO: Features wider diameter ranges, rapid clamping system, adjustable torch, and robust mechanics. Scalable with options for AVC, OSCillation, and wire feed.
RANGE SC: Patented design for orbital welding, offering high quality and simplicity with multiple options for cooling and additional features like AVC/OSC/WIRE.
RANGE CC: Large diameter range with precise cutting capabilities, lightweight design, and interchangeable motors for scalability.
RANGE GA: Unique bevelling technology with high productivity and flexibility for various materials.

Additional Features:

Auto control with integrated data acquisition system.
Auto protection continuously monitors safety parameters.
Fault management records alarms for monitoring event history.

Contact Information: AXXAIR's head office is located in France, with subsidiaries in Germany, Spain, China, and Korea. Contact details for each location are provided for customer support and inquiries.

Product Overview: The document also provides technical specifications and options for a bench with height adjustment and roll capabilities, compatible with various machine models.

Catalog excerpts

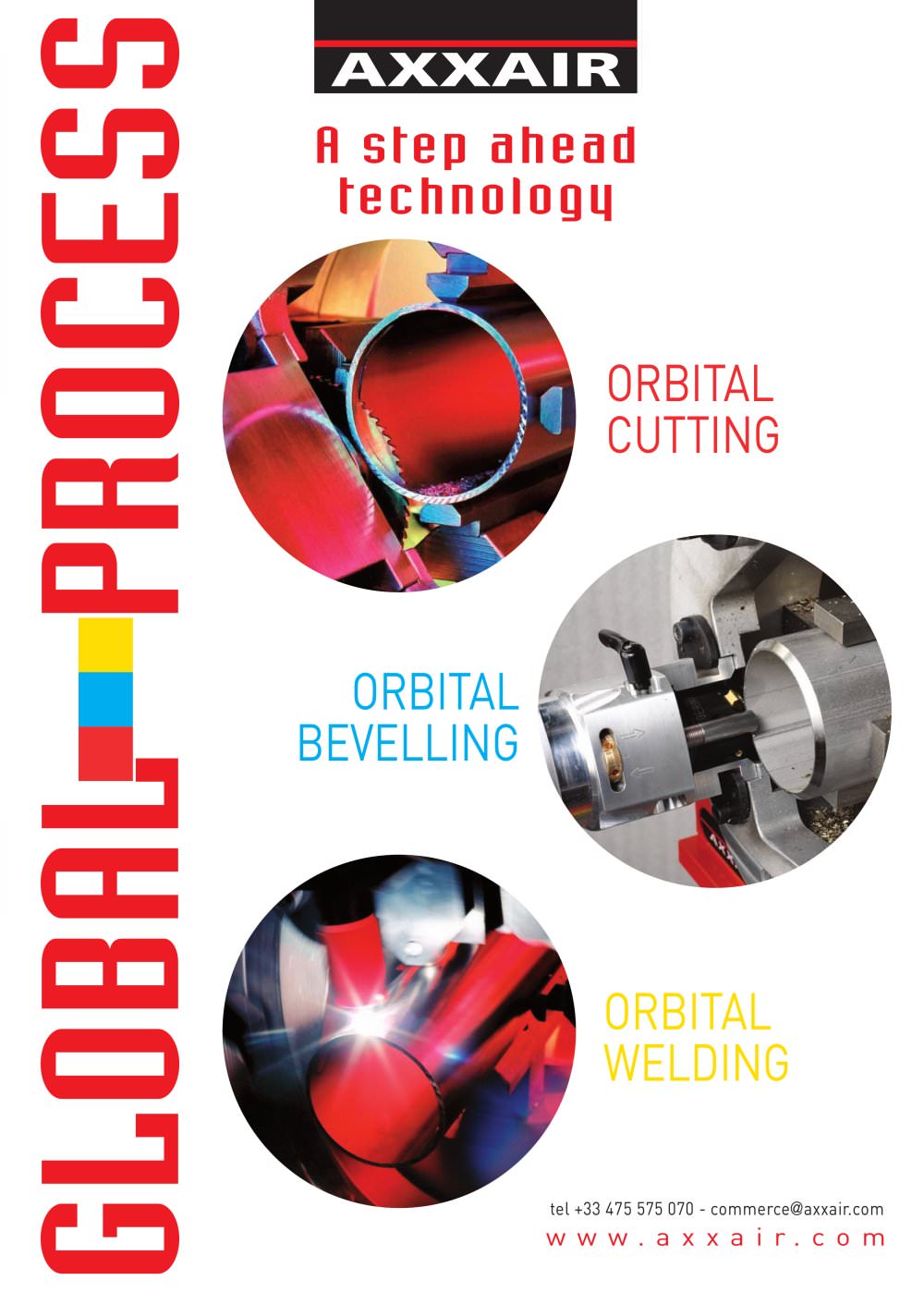

AXXAIR n siep iiuu rechnologg ORBITAL CUTTING ORBITAL BEVELLING ORBITAL f ING tel +33 475 575 070 - [email protected]

Open the catalog to page 1

Ref. Diameter Tube machine spread (mm) thickness (mm) CC80 5>78 0,5>7 CC121 ECO 5>121 0,5>7 CC121 5>121 0,7>15 CC171 16>170 0,7>15 CC221 59>225 1>15 CC321 140>330 1,5>15 CC420 215>420 1,5>15 CC520 315>520 1,5>15 CC620 L 406,4/457,2/508/610 1,5>15 CC720 L 457,2/508/610/711,2 1,5>15 CC1100 contact us * Electric motors also available RANGE CC Large diameter range: 11 models from Ø 5 to Ø 1100 mm. Big capacity of clamping for each model 1 concentric clamping multi-contacts : Clamping system without tube deformation (Ideal for thin wall stainless tubes) Stainless steel jaws in standard: Save corozion...

Open the catalog to page 2

318�19�67094 RANGE GA Unique: international patent and unique machine using this innovative carbide technology. Productivity: the bevelling with carbide tips offers speed 10 times higher than that possible with an HSS tool. Exemple: 0 88,9x6 mm, material 316L: only45sec for the bevel. LARGE DIAMETER RANGE. Bevel: in V, for the manuel welding (30°, 37,5° and 45°) or en J for the automatic welding. Quality: the tracking system included in the standard milling head offsets the roundness of the tubes Simplicity: The operation, the settings with the assistance of the cutting wheel and the bevelling...

Open the catalog to page 3

The orbital prefab welding range RANGE SC AXXAIR'S UNIQUE PATENTED DESIGN A unique patent allowing orbital welding to be performed within the context of production applications or prefabrication in a workshop. QUALITY Optimal welding quality that passes the strictest tests (x-ray inspection), weld after weld. Fixed tube, extremely useful for welding components onto tubes of great length, preventing the distortion associated with tube rotation in standard procedures Machine using robust mechanics EACH MACHING HAS A LARGE DIAMETER RANGE SIMPLICITY A machine which is very easy to use; start-up and...

Open the catalog to page 4

54 RANGE SASL-200 Ergonomics : simple, efficient remote contrai man-machine interface using a colour touch screen. Memory card capable of storing 200 programms, with a maximum of 20 sectors per program. Capacitance : 210A, 160Aat 100% Autoline with PFC : compatible with 110 and 230V in automatic mode with powerfactorcontrol Flexibility &Scalability : this item is available in a simple air-cooled version but can be upgraded to the full version with 4 axis contrai card, torch advance, AVC, OSC and feed wire with extremely powerful water cooling Auto control : integrated data acquisition System....

Open the catalog to page 5

RANGE SATF A very compact machine, with cooling included. Arcstrike in ail lectrode positions. Ergonomics : quick installation of the jaws without tools. Clamping : is fastened using 2 collets guided on a spring loaded axis and tightened through 2 elastics leavers and a spring-mounted master pin. Protection : reinforced against arc strike out of electrode. Capacity : diameter ranges are wider (use of stepping motors). Tough: 100% duty cycle at120A. SATF Closed heads SATO Open heads RANGE SATO Capacity : diameter ranges are wider (use of stepping motors). Clamping : rapid, powerful clamping system...

Open the catalog to page 6

HEAD OFFICE FRANCE ZI les Bosses 26800 Étoile-sur-Rhône Tél.: (33)4 75 57 50 70 Fax: (33)4 75 57 50 80 [email protected] SUBSIDIARIES DEUTSCHLAND Saarbrüchen Tel : (49)681 99 63 560 Tel: (49)160 97 550 275 Fax : (49) 681 99 63 111 [email protected] ESPAÑA Barcelone Tel: (34)608 254 430 Tel/Fax: (34)937 786 093 [email protected] CHINA Shanghai Tel: (86)21-3463-7177 Fax: (86)21-3463-7179 [email protected] KOREA Gyeonggi-do, Seoul Tel: (82)32-624-2870 Fax: (82)32-624-2874 [email protected] www.axxair.com www.axxair.de
