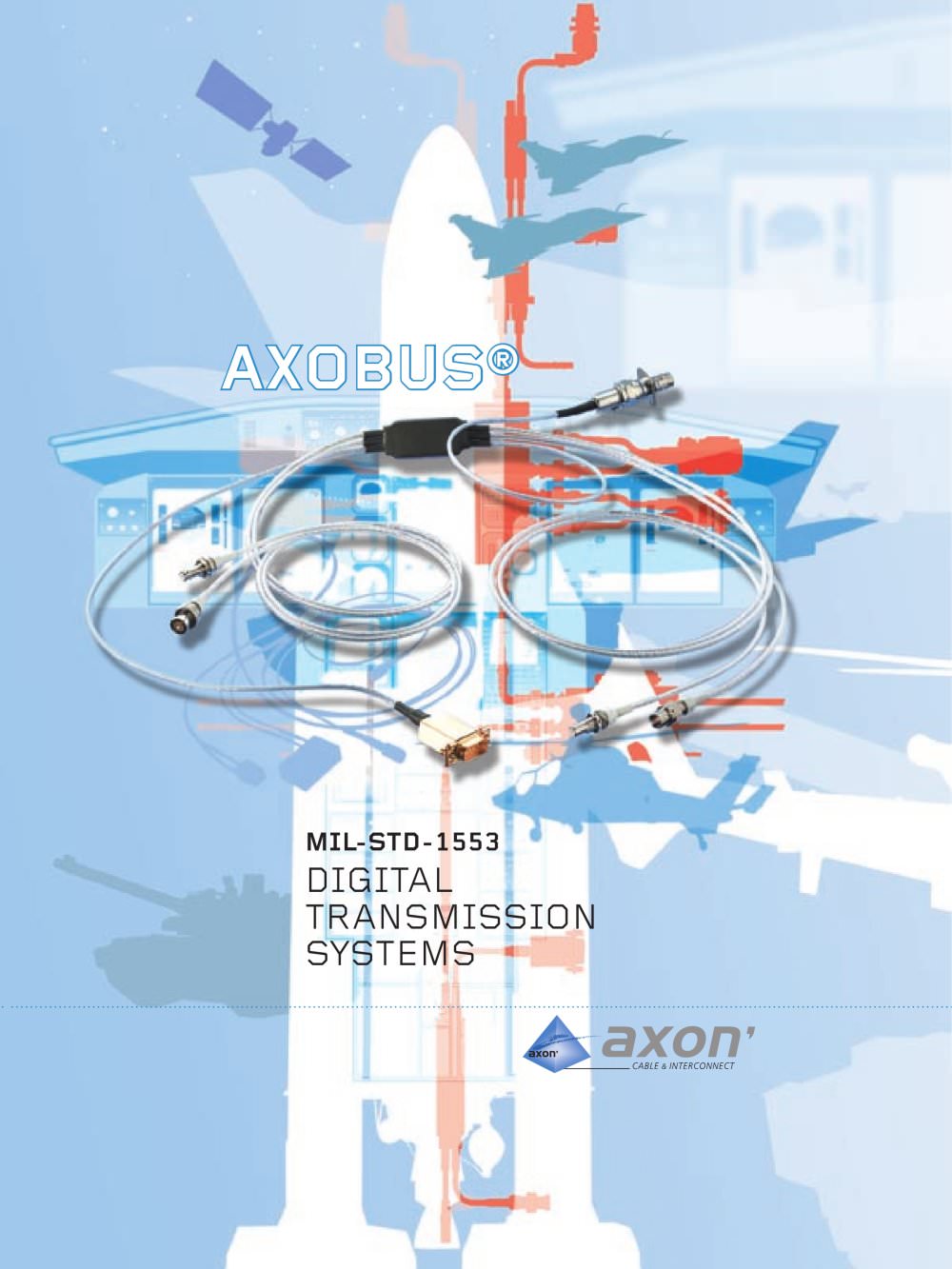

MIL-STD-1553 digital transmission systems

MIL-STD-1553 digital transmission systems

Product catalog summary

Overview: Axon’ Cable specializes in designing and manufacturing components for data transmission systems compliant with the MIL-STD-1553 standard, used in aeronautics, space, and military applications. Their products ensure high data security and signal integrity.

Applications: Axon’s products are used in various sectors including aeronautics (aircraft, fighters, helicopters), military (weapon systems, tanks, missiles), and space (launchers, satellites, space stations).

Qualifications and Approvals: Axon’s products are certified under several standards including ISO 9001, ISO 14001, EN 9100, and various European and international standards for cables, couplers, and connectors. They are also qualified for use in programs like ARIANE V, VEGA, and the International Space Station.

Product Specifications: The MIL-STD-1553 network supports a maximum of 31 stubs, uses twisted shielded pair cables with an impedance of 77 ohms, and operates at a rate of 1 Mbit/s using Manchester digital code.

Components: Axon offers a range of components including cables (22, 24, 26 AWG), couplers (in-line, removable, rackable, relay), transformers, and connectors (ACB1, ACB2, triaxial contacts). These components are designed to meet specific requirements for different applications.

High Data Rate Links: Axon provides solutions for high data rate transmissions up to 10 Gbps, suitable for military, aeronautics, and space applications. These include Fibre Channel links, SATA, USB2.0, Gigabit Ethernet assemblies, and SpaceWire links.

Expertise and Services: Axon offers comprehensive services from network topology studies to final control, including EMC/EMI protection, clean room assembly, and high-quality validation. They also provide technical assistance and custom-designed bus harnesses.

Global Presence: Axon has a global presence with subsidiaries and offices in countries including China, Germany, Hungary, India, Japan, Latvia, Mexico, Spain, the UK, the USA, and France.
