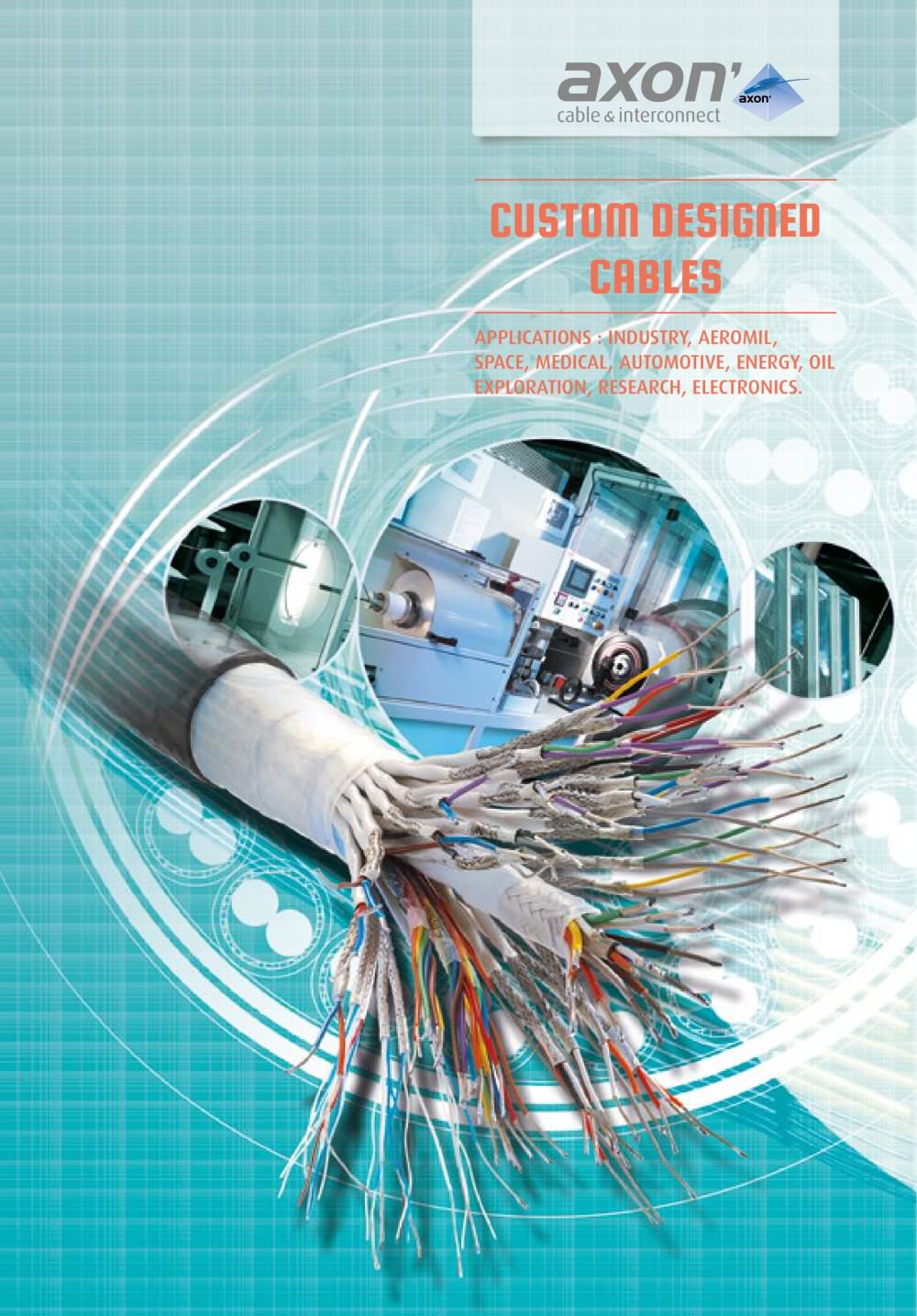

Custom designed cables applications : industry, aeromil, space, medical, automotive, energy, oil exploration, research, electronics.

Open the catalog to page 1

EXPERTISE Axon’ cable has been a manufacturer of wires, cables and interconnect solutions for advanced technologies for almost 50 years. During this time the company has gathered significant expertise in the design and manufacture of composite cables for the most demanding of applications. Applications : Our Research and Design departments which are supported by our Research and Development departments specializing in metallurgy, plastics, microwave, electromagnetic compatibility, micromechanics, high data rate, etc will give you the best possible support. industry, aeromil, space, medical,...

Open the catalog to page 2

Custom designed cables from conductor to composite cable When developing a custom designed cable, the mechanical, environmental, electrical and electromagnetic constraints of the application need to be considered. • Mechanical characteristics : resistance to flexing, tor- sion, vibration, shock, abrasion, space saving, etc. • Environmental and climatic characteristics : tempera- ture, humidity, salt spray, resistance to oil and fluids, sterilisation, radiation, fire,etc . • Electrical and electromagnetic characteristics : frequencies, capacity, losses, resistance, high data rates, power,...

Open the catalog to page 3

INSULATION Expertise in thermoplastic extrusion, PTFE extrusion and taping. Design and manufacture of insulated wires with materials including : • Fluorinated materials (FEP ETFE, PFA), PEEK, polyimide, etc. , • Fluoropolymers including PTFE and alveolar PTFE desi- gned to optimize electrical characteristics of data transmission cables. • A patented product : CELLOFLON® (expanded PTFE) with a low dielectric constant (1.35) for dielectrics to optimise electrical characteristics of coaxial cables. • Special materials and compounds developed by our PROTECTION against electromagnetic...

Open the catalog to page 4

Assembly of hybrid elements Different configurations of cables made with twisted pairs, shielded versions, flexible wires, power cables, coaxial cables, microwave cables, tubes, etc, suited for applications requiring flexibility, space saving, etc. • Optimisation of twisting, constitution of different layers dependent on the application. • Assembly of electrical hybrid or optic-electrical Tests passed ! Axon’ uses a wide variety of equipment to ensure that cables meet the most severe requirements : Environmental and physical constraints • Climatic chambers for different tests: heat shock,...

Open the catalog to page 5

The new Axon’ factory in Montmirail, France ©AXON’ | Released April 2013 | All rights reserved - Celloflon®, Vibraflame® and VITAXTM are Axon’ Cable trademarks Design by Yo! [www.yo.eu] Photos : Nickelkrome | Axon’ HEADQUARTERS / FRANCE AXON’ CABLE SAS 2 ROUTE DE CHALONS EN CHAMPAGNE 51210 MONTMIRAIL TEL : +33 3 26 81 70 00 FAX : +33 3 26 81 28 83 sales@axon-cable.fr www.axon-cable.com BRAZIL AXON´ CABLE IND. E COM. LTDA. Av. Evandro Lins e Silva, 840 - Sala 610 Barra da Tijuca - Rio de Janeiro - RJ CEP : 22631-470 TEL : +55 21 2178-2498 l.moreira@axon-cable.com CHINA AXON’ INTERCONNECT...
