Product catalog summary

Overview: The document provides comprehensive specifications and features of various flow measurement instruments by Lake Monitors and AW-Lake Company, suitable for industrial applications such as hydraulics, HVAC, and petrochemical industries.

1. Product Specifications:

Materials of Construction: Options include aluminum, brass, and stainless steel, ensuring compatibility with different media and system requirements.
Mounting Flexibility: Instruments can be installed in any orientation without the need for straight plumbing.
Accuracy and Stability: Flowmeters offer measuring accuracy of ±2.5% in the center third of the range and ±4% in the upper and lower thirds, with good viscosity stability.
Pressure and Temperature Ratings: High-pressure operation up to 6000 PSIG and temperature ratings up to 600°F for specific models.

2. Key Features:

Rugged Design: Designed for durability and maintenance-free performance in harsh environments.
Bi-directional Flow Options: Available for both standard and high-temperature monitors.
Visual Inspection: Transparent bodies allow for easy visual inspection of fluid conditions.

3. Performance and Calibration:

Flow Measuring Range: From 0.05 to 150 GPM, depending on the model.
Repeatability: ±1% of full-scale ensures consistent performance.
Filtration Requirements: Minimum 74 micron filter or 200 mesh screen is recommended.

4. Applications: Suitable for monitoring case drain flows, pump performance, and media flows in hydraulic circuits, as well as for high-temperature applications such as barrel heating fluids and thermal transfer fluids.

5. Additional Information: Includes mechanical size codes and typical pressure differentials for various models, with specific details available in Lake data sheets.

6. Specific Product Details:

FreeFlow Sensor: Features a segmented wedge element for flow measurement without moving parts, offering multiple flow ranges and high accuracy.
Pneumatic Flow Rate Monitors: Utilizes a variable annular orifice technique, suitable for high-pressure operations up to 1000 PSIG.
Phosphate Ester Flow Rate Monitors: Calibrated for phosphate esters, compatible with aviation lubricants and fire-retardant fluids.

7. Installation and Usage:

Monitors can be installed in any orientation and are designed for permanent installation in industrial systems.
Correction factors may be applied for non-standard conditions to maintain accuracy.
Special calibrations are available for specific system characteristics.

8. Additional Products: The document also mentions other products such as hydraulic system test analyzers, paddle wheel flowmeters, and diagnostic tool kits, highlighting their construction materials, performance, and applications.

9. Hydraulics Diagnostic Tool Kit:

Purpose: Used for diagnosing faults in hydraulic circuits, determining horsepower, and testing for component wear.
Features: Compact, rugged, non-electrical design for reliable operation.
Specifications: Suitable for 1/2" pipe sizes, with a measuring accuracy of ±4% for flow and ±2.5% for pressure.

10. Weld Shield Gas Flow Switch:

Purpose: Designed for use in harsh welding environments to detect insufficient flow conditions.
Features: Non-powered, field adjustable, and offers metric and US standard indicating ranges.
Specifications: Flow measuring accuracy of ±5%, with a maximum operating pressure of 150 PSIG.

Catalog excerpts

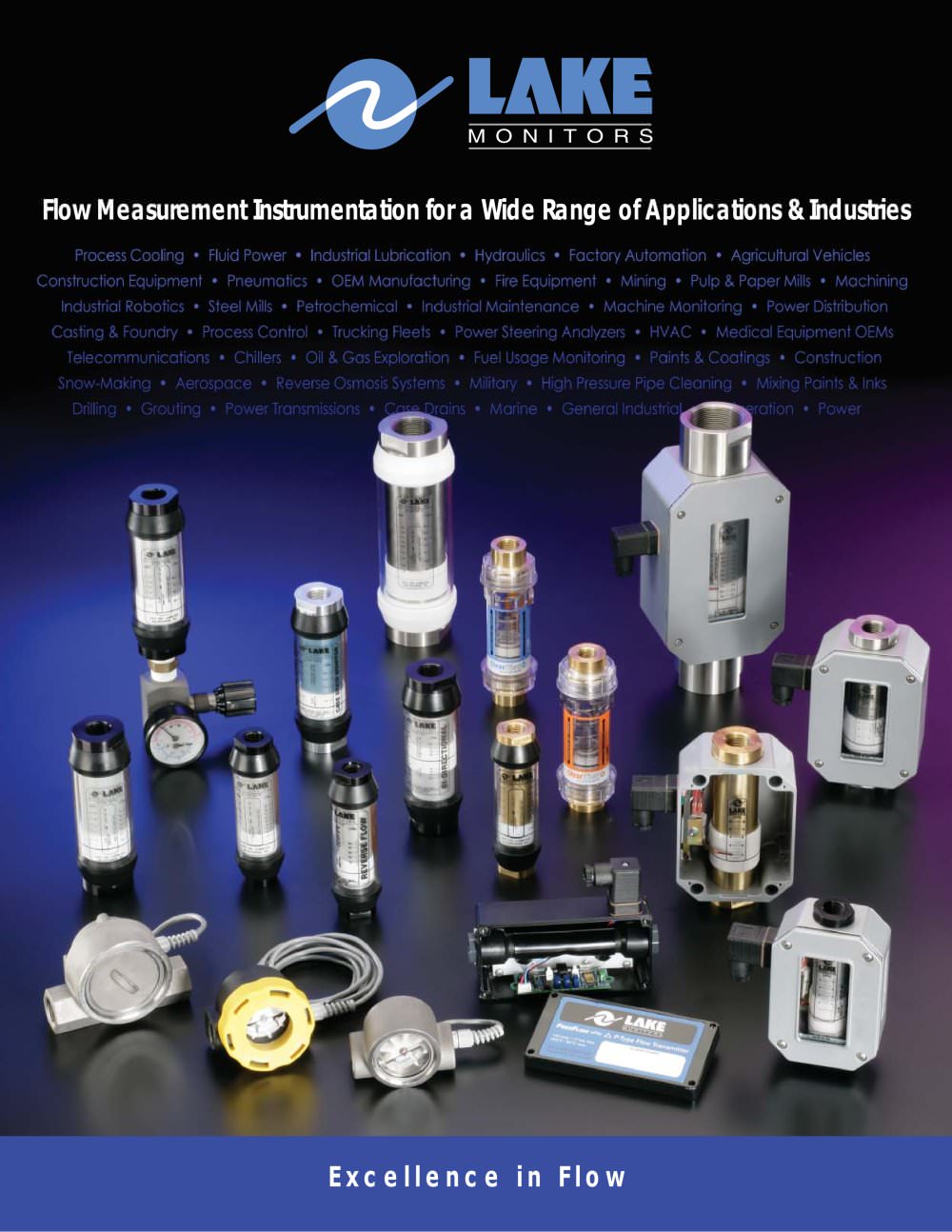

MONITORS Flow Measurement Instrumentation for a Wide Range of Applications & Industries > Process Cooling ? Fluid Power ? Industrial Lubrication ? Hydraulics ? Factory Automation ? Agricultural Vehicles Construction Equipment ? Pneumatics ? OEM Manufacturing ? Fire Equipment ? Mining ? Pulp & Paper Mills ? Machining Industrial Robotics ? Steel Mills ? Petrochemical ? Industrial Maintenance ? Machine Monitoring ? Power Distribution Casting & Foundry ? Process Control ? Trucking Fleets ? Power Steering Analyzers ? HVAC ? Medical Equipment OEMs Telecommunications ? Chillers ? Oil & Gas Exploration ? Fuel Usage Monitoring ? Paints & Coatings ? Construction Snow-Making ? Aerospace ? Reverse Osmosis Systems ? Military ? High Pressure Pipe Cleaning ? Mixing Paints & Inks Drilling ? Grouting ? Power Transmissions ? Case Drains ? Marine ? General Industrial ? Refrigeration ? Power Excellence in Flow >

Open the catalog to page 1

PISTON-STYLE INLINE FLOWMETERS Basic In-Line Flowmeter ClearView Value Flowmeter High Temperature Flowmeter Case Drain Flowmeter FreeFlow Sensor Pneumatic Flow Rate Monitor Phosphate Ester Flow Rate Monitor FLOW RATE TRANSMITTERS & ALARMS Flow Rate Transmitter Flow Rate AlarmPADDLE WHEEL FLOWMETERS FlowStat ES FlowStat Turbine Flow SensorTEST ANALYZERS & TOTALIZERS Hydraulic System Test Analyzer Hydraulic Diagnostic Tool Kit Weld Sheild Gas Flow Switch >

Open the catalog to page 2

CHOICE OF THREE MATERIALS OF CONSTRUCTION RUGGED AND RELIABLE Designed as a hydraulic service tool, this monitorwill provide years of maintenance-free performance. Select from aluminum, brass or stainless steel to meet system and media compatibility requirements. UNRESTRICTED MOUNTING HIGH PRESSURE OPERATION Allows the designer to install the monitor in anyorientation ֖ horizontal, vertical or inverted. The magnetically coupled follower and rigid pressure vessel design allows operation to 6000PSIG and use with opaque liquids. SUPERIOR EXTERIOR DESIGN Weather-tight for use outdoors and/or on systems...

Open the catalog to page 3

TYPICAL PRESSRE IFFERENTIALS > For specific differential graphs,refer to Lake data sheet PDDS-404. MATERIALS OF CONSTRCTION ETTE COMPONENTS ALUMINUMBRASSSTAINLESS STEEL High-pressure casing, Aluminum Brass 0 Stainless Steel end ports and tapered shaftSeals Buna-N STD, EPR,Buna-N STD, EPR,itonwith Teflonitonor alrezitonor alrezbackup STD, Buna-N, EPR or alrez Transfer MagnetTefloncoated AlnicoTefloncoated AlnicoTefloncoated Alnico > 010305070901101301500510 15 202530 35 40 Floating Orifice DiskStainless SteelStainless SteelStainless SteelAll other internal parts Stainless SteelStainless SteelStainless...

Open the catalog to page 4

For media compatibility, select from: TM HO 2 Polycarbonate body (ClearView H 2 0) orPolysulphone body (ClearView+). TM UNRESTRICTED MOUNTING Allows for horizontal, vertical or inverted installation of the meter. COMPACT AND RUGGED DESIGN Measures less than 8-1/4" long and 2-7/16" diameter with a rigid tube and union nut design. VISUAL INSPECTION OF FLUID The transparent body allows for visual inspectionof fluid conditions. Diagnose problems at a glance. MULTIPLE MATERIALS ANDCALIBRATIONS AVAILABLE With a variety of wetted materials of constructionand media calibrations, the ClearView > ֙ will...

Open the catalog to page 5

MATERIALS OF CONSTRUCTION (WETTED COMPONENTS) TYPICAL PRESSURE DIFFERENTIALS ClearView H > 2 OClearView + End Ports Brass, Polysulphone Brass, Polysulphone SealsBuna-NBuna-N SpringStainless SteelStainless Steel BodyPolycarbonatePolysulphone IndicatorPolysulphonePolysulphone PERFORMANCE Measuring Accuracy:5% of full-scale Repeatability:ѱ1% of full-scale Flow Measuring Range:130 GPM (5-110 LPM) Turn Down Ratio (All Ranges):10:1 Maximum operating pressure:325 PSIG (22.4 Bar) Maximum operating temperature:ClearView H > 2 O200ְF (93C) ClearView+ 250аF (121C) Pressure Differential:See graph on right...

Open the catalog to page 6

CHOICE OF THREE MATERIALS OF CONSTRUCTION 24 DIFFERENT PORTS AVAILABLE Standard selection of NPT, SAE and BSP portsreduces the amount of adapters required for installation. Select from aluminum, brass or stainless steel tomeet system requirements. LOW COST ACCURACY ֱ2.5% of range accuracy in center third of scale;4% in upper and lower thirds. UNRESTRICTED MOUNTING Allows the designer to install the monitor in anyorientation і horizontal, vertical or inverted. BI-DIRECTIONAL AND REVERSE FLOWOPTION OFFERED GOOD VISCOSITY STABILITY High temperature monitors are also available inbi-directional and...

Open the catalog to page 7

TYPICAL PRESSRE IFFERENTIALS > For specific differential graphs,refer to Lake data sheet PDDS-404. MATERIALS OF CONSTRCTION ETTE COMPONENTS ALUMINUMBRASSSTAINLESS STEEL High-pressure casing, Aluminum Brass 0 Stainless Steel end ports and tapered shaftSealsH-Series 400Fiton > w/Teflon backup iton > w/Teflon backup iton > w/Teflon backup -Series 600Falrez > w/Teflon backup alrez > w/Teflon backup alrez > w/Teflon backup Transfer MagnetTefloncoated AlnicoTefloncoated AlnicoTefloncoated Alnico Floating Orifice DiskStainless SteelStainless SteelStainless SteelAll other internal parts Stainless SteelStainless...

Open the catalog to page 8

Available for /2 to pipe sizes, Lakes new Case Drain Monitor is the perfect alternative to using a standard flow meter for case drain applications. And its priced considerably less.Designed for convenient vertical, horizontal or inverted installation,it provides dependable measuring accuracy of 5% of range.Durable aluminum construction makes it ideal for outdoor/exposed applications and where frequent wash-downs are required. AW-Lake Company backs its Case Drain Monitors with a One-ear Warranty. wwwlakeonitorsco >

Open the catalog to page 9

WETTED COMPONENTS > ◆ High-pressure casing, end ports and tapered shaft: Aluminum > ◆ Seals: Buna-N > ◆ Transfer magnet: Tefloncoated Alnico > ◆ Floating orifice disk: Stainless Steel > ◆ All other internal parts: Stainless Steel NON-WETTED COMPONENTS > ◆ Window tube: Polycarbonate STD > ◆ Window seals: Buna-N STD, Teflon > SERIES 3 Dimension A: -/ 4mm Dimension B: 6-/6 6mm Port Sizes NPTF: /2 SERIES 4 Dimension A: 2-/ 60mm Dimension B: -5/2 2mm Port Sizes NPTF: /4 and SAE and BSP porting also aailable. Contact ake for more information > ◆ Measuring accuracy: 5% of full-scale > Ѣ׆ Repeatability:...

Open the catalog to page 10
