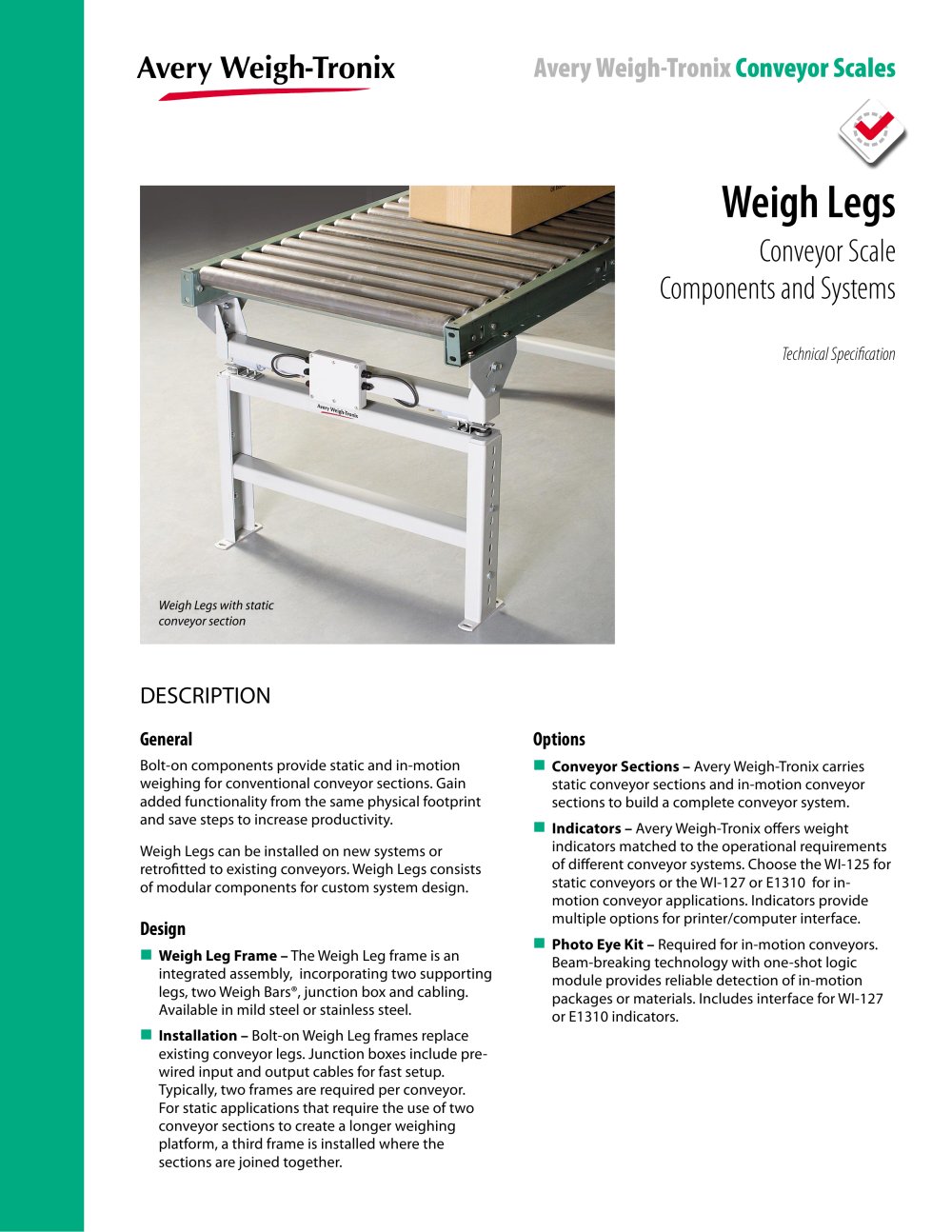

Avery Weigh-Tronix Conveyor Scales Weigh Legs Conveyor Scale Components and Systems Technical Specification DESCRIPTION General Bolt-on components provide static and in-motion weighing for conventional conveyor sections. Gain added functionality from the same physical footprint and save steps to increase productivity. Weigh Legs can be installed on new systems or retrofitted to existing conveyors. Weigh Legs consists of modular components for custom system design. Design - Weigh Leg Frame – The Weigh Leg frame is an integrated assembly, incorporating two supporting legs, two Weigh Bars®, junction box and cabling. Available in mild steel or stainless steel. - Installation – Bolt-on Weigh Leg frames replace existing conveyor legs. Junction boxes include pre-wired input and output cables for fast setup. Typically, two frames are required per conveyor. For static applications that require the use of two conveyor sections to create a longer weighing platform, a third frame is installed where the sections are joined together. Options - Conveyor Sections – Avery Weigh-Tronix carries static conveyor sections and in-motion conveyor sections to build a complete conveyor system. - Indicators – Avery Weigh-Tronix offers weight indicators matched to the operational requirements of different conveyor systems. Choose the WI-125 for static conveyors or the WI-127 or E1310 for in-motion conveyor applications. Indicators provide multiple options for printer/computer interface. - Photo Eye Kit – Required for in-motion conveyors. Beam-breaking technology with one-shot logic module provides reliable detection of in-motion packages or materials. Includes interface for WI-127 or E1310 indicators. Weigh Legs with static conveyor section

Weigh Legs Frame Capacities – 250 lb, 500 lb and 1,000 lb. per Weigh Leg frame. Total scale capacity is double the individual frame rating. When selecting a capacity, the weight of the conveyor section must be factored in. Physical dimensions – Widths – 24”, 28”, 30”, 34”, 36”, 40” and 42” Adjustable leg height – 23-5/8” to 35-5/8” Finish – Heat-fused powder paint provides a high level of corrosion protection. Static Conveyor Sections Sizes – 24”, 28”, 30”, 34”, 36”, 40” and 42” widths; 5’ or 10’ lengths Rollers – Placed on 3” centers for even load support and “set high” for unobstructed...
