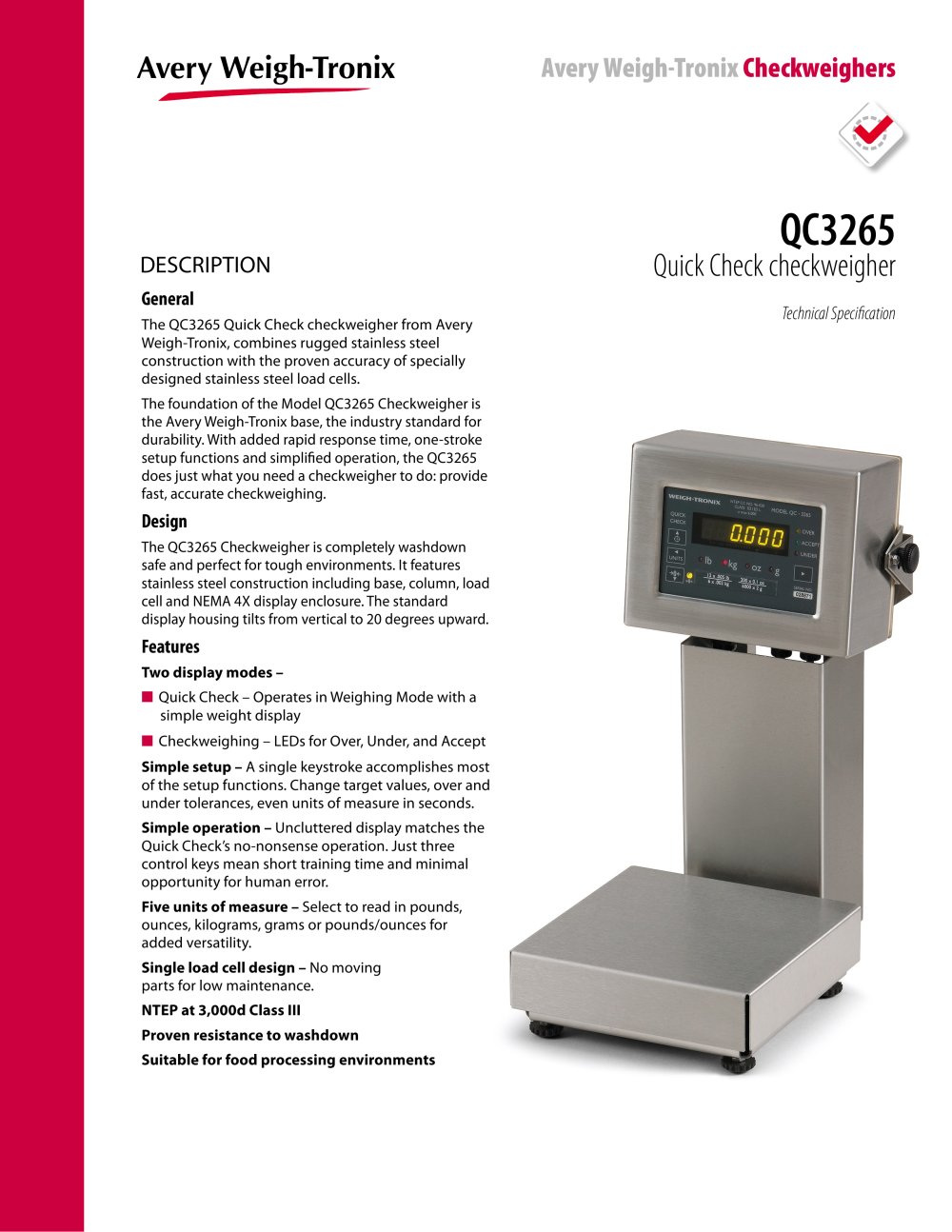

Avery Weigh-Tronix Checkweighers QC3265 Quick Check checkweigher Technical Specification DESCRIPTION General The QC3265 Quick Check checkweigher from Avery Weigh-Tronix, combines rugged stainless steel construction with the proven accuracy of specially designed stainless steel load cells. The foundation of the Model QC3265 Checkweigher is the Avery Weigh-Tronix base, the industry standard for durability. With added rapid response time, one-stroke setup functions and simplified operation, the QC3265 does just what you need a checkweigher to do: provide fast, accurate checkweighing. Design The QC3265 Checkweigher is completely washdown safe and perfect for tough environments. It features stainless steel construction including base, column, load cell and NEMA 4X display enclosure. The standard display housing tilts from vertical to 20 degrees upward. Features Two display modes – Quick Check – Operates in Weighing Mode with a ¡¡simple weight display Checkweighing – LEDs for Over, Under, and Accept¡¡ Simple setup – A single keystroke accomplishes most of the setup functions. Change target values, over and under tolerances, even units of measure in seconds. Simple operation – Uncluttered display matches the Quick Check’s no-nonsense operation. Just three control keys mean short training time and minimal opportunity for human error. Five units of measure – Select to read in pounds, ounces, kilograms, grams or pounds/ounces for added versatility. Single load cell design – No moving parts for low maintenance. NTEP at 3,000d Class III Proven resistance to washdown Suitable for food processing environments

SPECIFICATIONS Environment 14° to 104°F (-10° to 40°C) Water washdown Agencies USDA Compliant, NTEP, Canada Weights and Measures UL, EU Trade Approved, CE Indicator Display LCD: 7-segment, 6-digit, 0.7” high with 5 decimal point LED: 7-segment, 6-digit, 0.6” high with 5 decimal point Power Requirements Standard default: 115 VAC, ±10% to -15% @ 0.10 Amp maximum 50/60 Hz, 10 watts max Power cord length, 6 feet (1.8 meters) Optional: 230 VAC +10% to -15% @ 0.05 Amp maximum 50/60 Hz, 15 watts max. Optional Battery: LCD display only 12 VDC (10 to 15 volts) - @ 80 mA with 1 load cell @ 131 mA...

Technical Specification QC3265 Quick Check checkweigher Torsion Bases The innovative Breakaway Load Transfer System keeps dropped loads and side loads from wrenching the shroud and damaging the loadcell. Proven 500% overload protection Torsion assembly in the scale base automatically transfers shock loads and overloads away from the load cell to the scale frame. Scale frame and shroud are all corrosion resistant stainless steel, suitable for food processing environments. Designed washdown resistant Tough, easy to clean stainless steel construction makes the scale immune to washdown and...
