Diamond Series Bench Bases
2Pages

Catalog excerpts

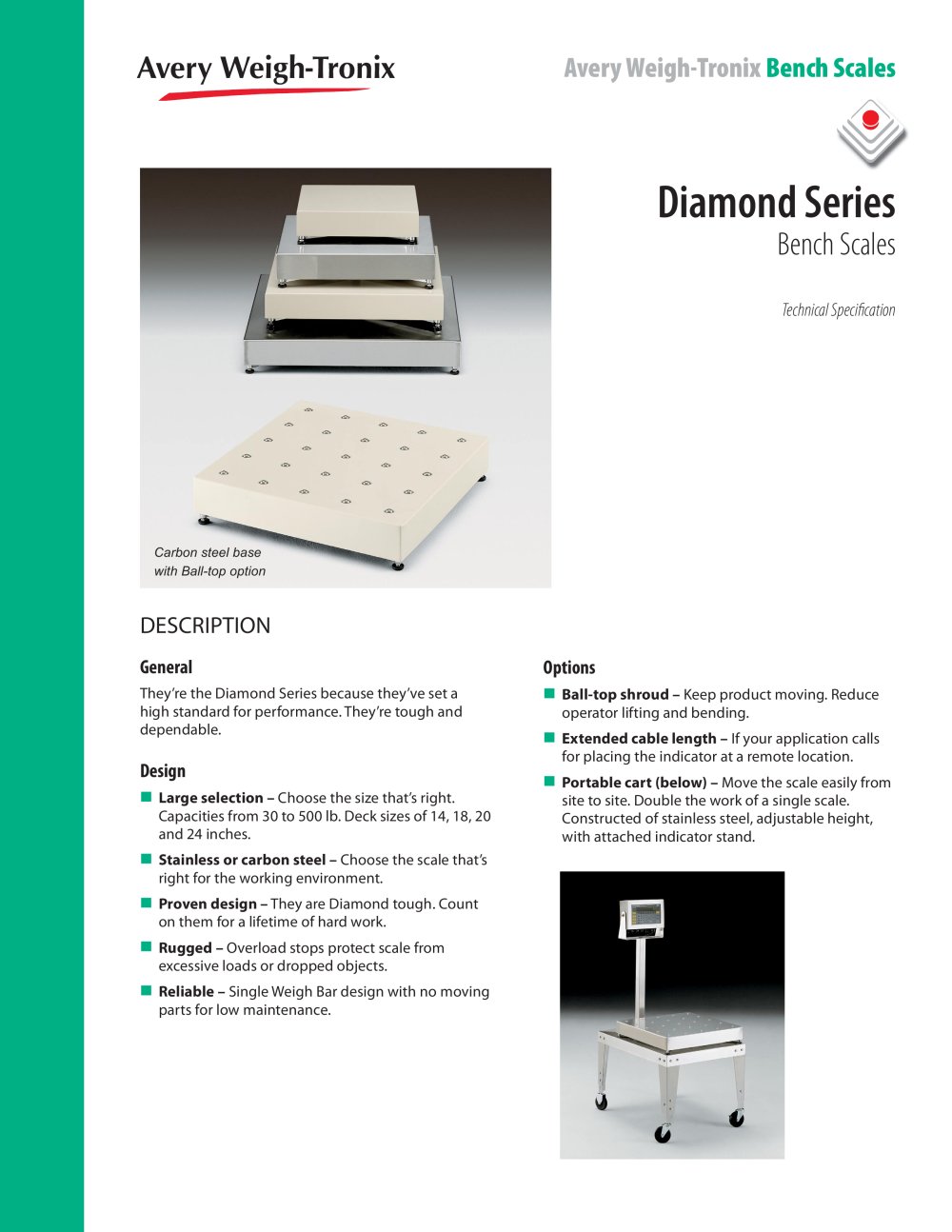

Avery Weigh-Tronix Bench Scales Diamond Series Bench Scales Technical Speci cation DESCRIPTION General They’re the Diamond Series because they’ve set a high standard for performance. They’re tough and dependable. Design - Large selection – Choose the size that’s right. Capacities from 30 to 500 lb. Deck sizes of 14, 18, 20 and 24 inches. - Stainless or carbon steel – Choose the scale that’s right for the working environment. - Proven design – They are Diamond tough. Count on them for a lifetime of hard work. - Rugged – Overload stops protect scale from excessive loads or dropped objects. - Reliable – Single Weigh Bar design with no moving parts for low maintenance. Options - Ball-top shroud – Keep product moving. Reduce operator lifting and bending. - Extended cable length – If your application calls for placing the indicator at a remote location. - Portable cart (below) – Move the scale easily from site to site. Double the work of a single scale. Constructed of stainless steel, adjustable height, with attached indicator stand. Carbon steel base with Ball-top option

Open the catalog to page 1

Dimensions and Capacities Both carbon steel and stainless steel Diamond Bench Scale bases are available in the following sizes and capacities: Model Capacity Dimensions 1414-30 30 lb 15 kg 14" x 14" x 4" 35.6 cm x 35.6 cm x 10 cm 1818-50 50 lb 25 kg 18" x 18" x 4" 45.7 cm x 45.7 cm x 10 cm 2020-100 100 lb 50 kg 20" x 20" x 4" 2020-200 200 lb 100 kg 51 cm x 51 cm x 10 cm 1824-100 100 lb 50 kg 18" x 24" x 4" 1824-200 200 lb 100 kg 45.7 cm x 61 cm x 10 cm 2424-100 100 lb 50 kg 24" X 24" X 4" 61 cm x 61 cm x 10 cm 2424-200 200 lb 100 kg 2424-500 500 lb 250 kg Construction Carbon steel bases –...

Open the catalog to page 2
