Product catalog summary

Overview: The document provides detailed information about Avery Weigh-Tronix conveyor scales, designed to enhance weighing accuracy and reduce labor costs in food plant and industrial applications. These scales are reliable, accurate, and built to last, featuring a USDA-approved acetal flush grid belting for easy maintenance.

Key Features:

Weighbar Design: The Weigh Bar® design ensures accuracy by canceling out side, end, and torsional forces, providing a true downward load.
Dimensions: Available in sizes ranging from 12" to 36" wide and 36" to 60" long, with adjustable height ranges from 18" to 45".
Motor and Power: Equipped with a 1/3 Hp motor, the scales require 120/220 VAC single phase or 220/440 VAC three phase power, with an option for variable speed control.
Construction: Options for stainless or carbon steel construction, with stainless steel meeting NEMA 4X standards for washdown and corrosion resistance.

Specifications:

Capacities: Available in 100 and 200 lb models.
Accuracy: Typically 0.1% or better, depending on application specifics like belt speed and conveyor length.
Belt Speed: Capable of speeds up to 220 ft/min.

Additional Features: The scales are fully automatic with dual photoelectric cells for maximum accuracy, self-contained, and operate independently of existing belt conveyors. They are suitable for checkweighing, straight weighing, and weight accumulation operations.

Contact Information: For more details or to find a distributor, contact Avery Weigh-Tronix in the USA or UK through the provided phone numbers and email addresses.

Catalog excerpts

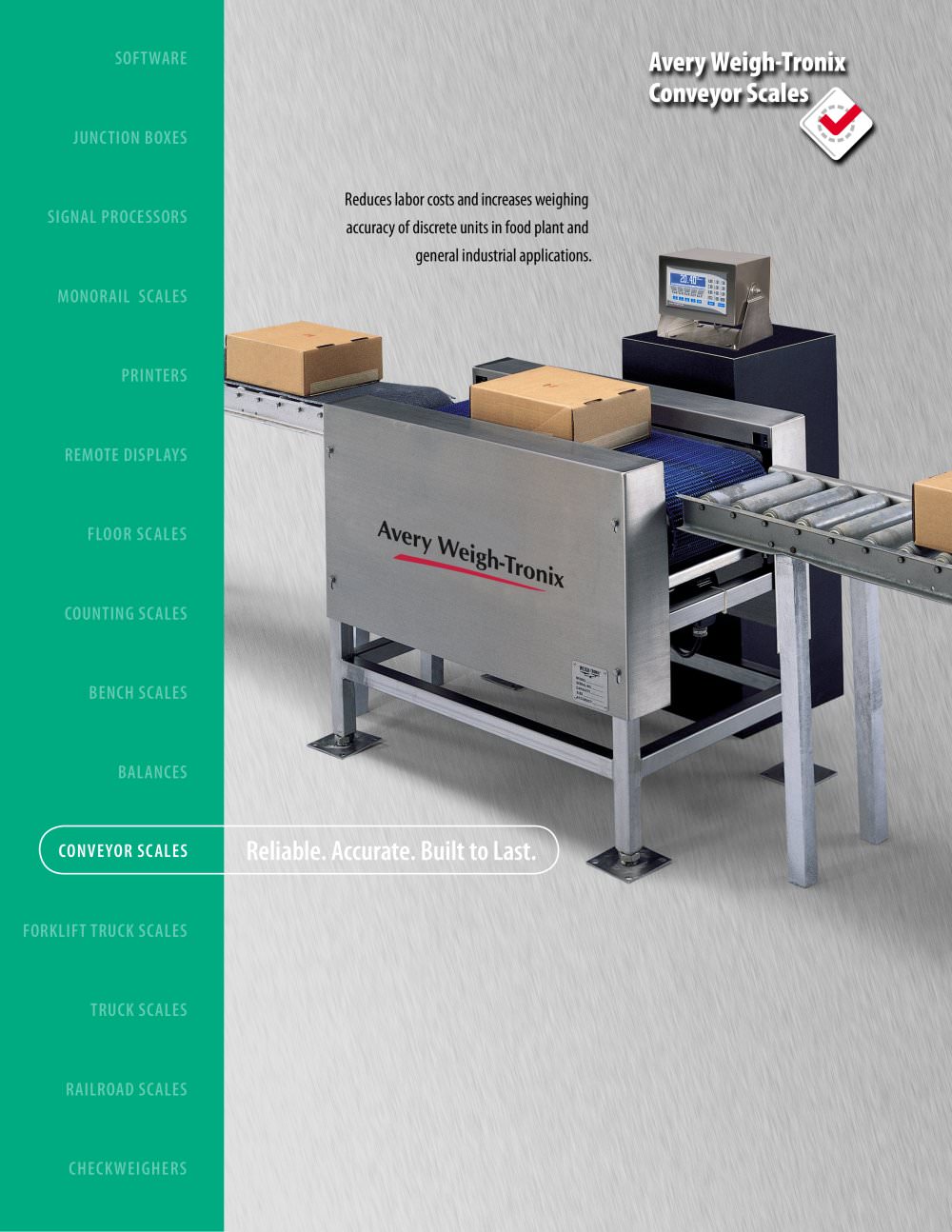

SOFTWARE JUNCTION BOXES SIGNAL PROCESSORS MONORAIL SCALES PRINTERS REMOTE DISPLAYS FLOOR SCALES COUNTING SCALES BENCH SCALES BALANCES FORKLIFT TRUCK SCALES TRUCK SCALES RAILROAD SCALES checkweighers Avery Weigh-Tronix Conveyor Scales Reduces labor costs and increases weighing accuracy of discrete units in food plant and general industrial applications. Conveyor SCALES Reliable. Accurate. Built to Last.

Open the catalog to page 1

Belting— USDA approved acetal flush grid with 31% open area for easy maintenance. Special belting available. Weighbar accuracy and reliability— The Avery Weigh-Tronix Weigh Bar® design cancels out side, end and torsional forces to provide a true downward load. Fully electronic design eliminates moving parts that may be affected by wear or misadjustments. Dimensions: Sizes from 12” – 36” wide by 36” – 60” lengths with three adjustable height ranges covering 18” to 45” Motor: 1/3 Hp Power requirements: 120/220 VAC single phase, 220/440 VAC three phase, or variable speed with controller (120VAC)...

Open the catalog to page 2
