3600 Bench Bases

Product catalog summary

Overview: The document provides technical specifications and features of the 3600 Series QuartzellTM Bench Bases, which are equipped with high-resolution QuartzellTM transducers allowing type approval at 10,000 divisions.

Models and Capacities: The series includes models 3633T, 3633, and 3635 with varying capacities ranging from 10 lb (5 kg) to 300 lb (165 kg). The 3633T model features a special 10 lb version with a round stainless steel platter and draft shield.

Construction: Models 3633T and 3633 are constructed with die-cast aluminum and a stainless steel shroud, while model 3635 uses mild steel with a stainless steel shroud.

Environmental Conditions: The bench bases operate effectively in temperatures ranging from -10°C to 40°C (14°F to 104°F).

Certifications: The models are NTEP Class III approved at 10,000 divisions, with the 3633T model also approved as NTEP Class II at 11,000 divisions, holding Certificate of Conformance #95-071A1.

Features and Benefits: The Quartzell transducers provide high-resolution digital output. The type-approved "T" models are suitable for certified weighing transactions. The bases can be used as high-resolution remote bases for PC-810 Counting Scales or linked to compatible instruments for enhanced sensitivity. The stainless steel shroud offers durability and aesthetic longevity. DuraBridge construction on heavy capacity decks minimizes off-center loading errors.

Options: A ball-top shroud is available for conveyor systems to enhance processing speed and reduce manual lifting.

Contact Information: The document provides contact details for Weigh-Tronix Inc. in the USA and Canada.

Catalog excerpts

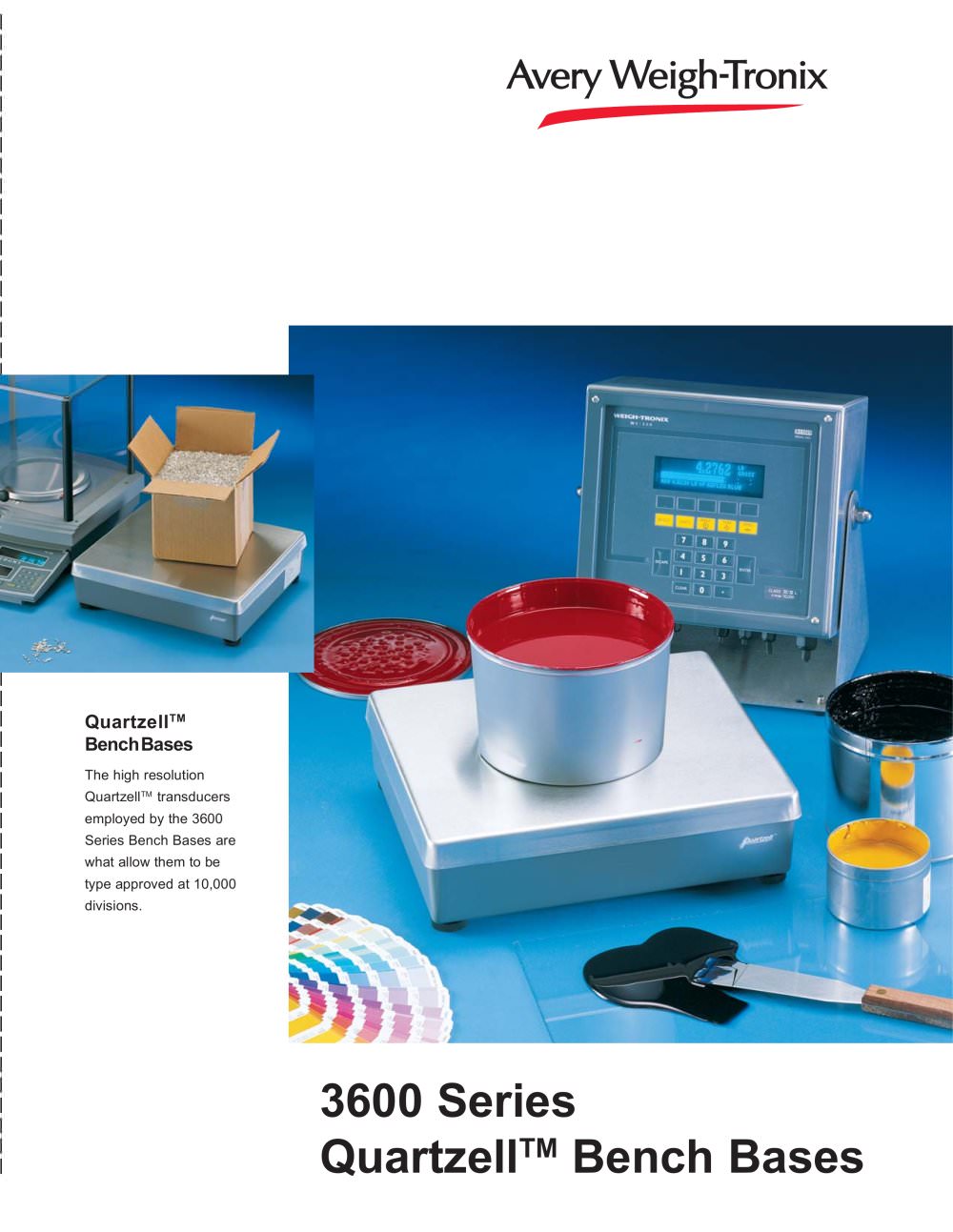

QuartzellTM Bench Bases The high resolution QuartzellTM transducers employed by the 3600 Series Bench Bases are what allow them to be type approved at 10,000 divisions.

Open the catalog to page 1

3600 Series QDT Bench Bases Model Capacity Dimensions 3633T* 10lb (5 kg) 12" x 14" 50 lb (25 kg) 100 lb (50 kg) 3633 150 lb (80 kg) 12" x 14" 3635 200 lb (110 kg) 18" x 18" 300 lb (165 kg) * The 3633T-10 lb version has an 8" dia. round stainless steel platter and comes standard with a distributor-installed draft shield. Note: The "T" in the model number indicates type approval Construction: Models 3633T & 3633: Die cast aluminum with stainless steel shroud Model 3635: Mild steel with stainless steel shroud Environment: -10°C to 40°C (14°F to 104°F) TM Specifications Feature and benefits Quartzell...

Open the catalog to page 2
