WLAN Low-Noise Amplifier
10Pages

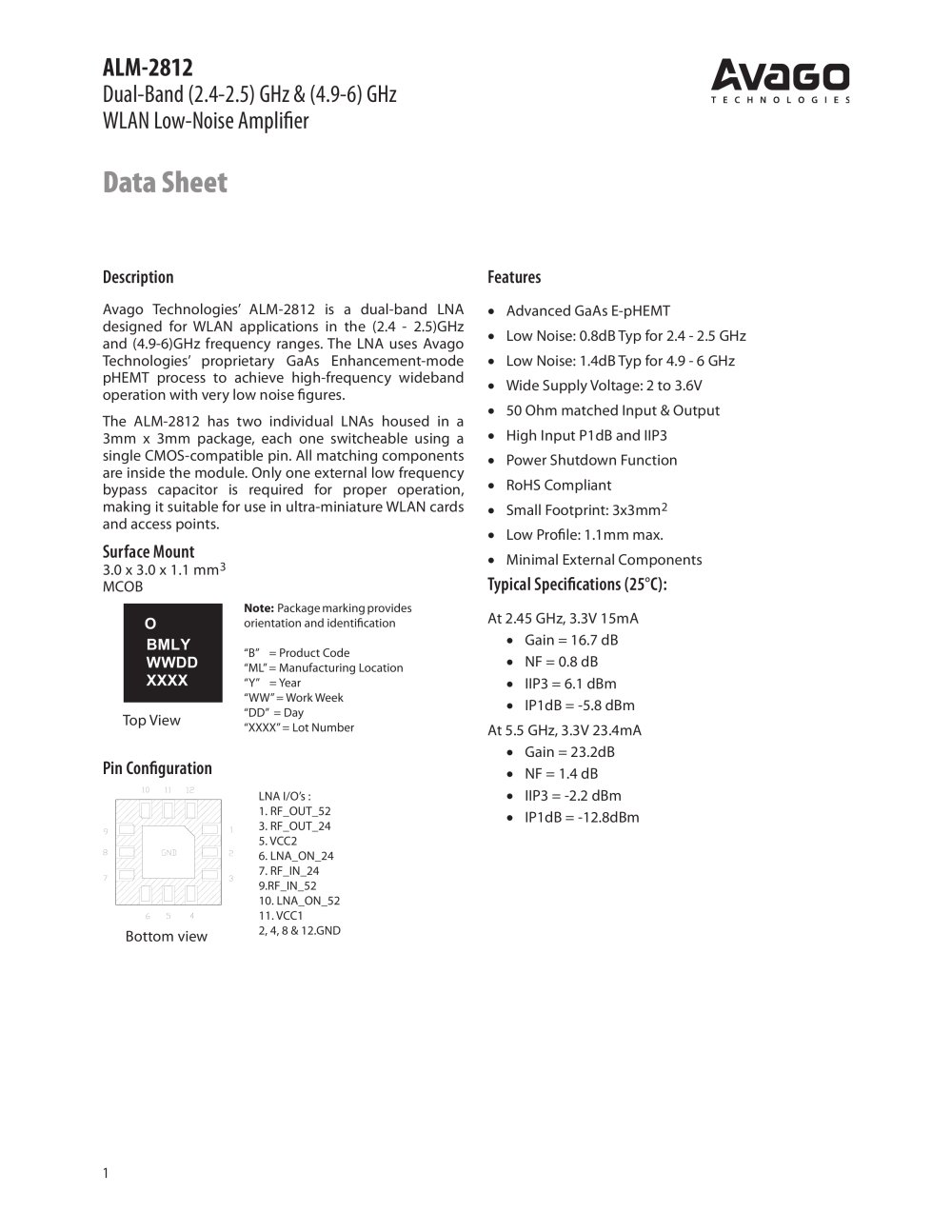

Avago Technologies ALM-2812 is a dual-band LNA designed for WLAN applications in the (2.4 - 2.5)GHz and (4.9-6)GHz frequency ranges. The LNA uses Avago TechnologiesҒ proprietary GaAs Enhancement-mode pHEMT process to achieve high-frequency wideband operation with very low noise gures.The ALM-2812 has two individual LNAs housed in a 3mm x 3mm package, each one switcheable using a single CMOS-compatible pin. All matching components are inside the module. Only one external low frequency bypass capacitor is required for proper operation, making it suitable for use in ultra-miniature WLAN cards and access points. Advanced GaAs E-pHEMT Օ Low Noise: 0.8dB Typ for 2.4 - 2.5 GHz Low Noise: 1.4dB Typ for 4.9 - 6 GHz Օ Wide Supply Voltage: 2 to 3.6V 50 Ohm matched Input & Output Օ High Input P1dB and IIP3 Power Shutdown Function Օ RoHS Compliant Small Footprint: 3x3mm > 2 Օ Low Prole: 1.1mm max. > 3.0 x 3.0 x 1.1 mm > 3 MCOB Minimal External Components > Note: Package marking provides orientation and identicationBӔ = Product CodeMLӔ = Manufacturing Location YӔ = Year WWӔ = Work Week DDӔ = Day XXXXӔ = Lot Number IIP3 = 6.1 dBm Օ IP1dB = -5.8 dBmAt 5.5 GHz, 3.3V 23.4mA Top View Gain = 23.2dB >

Notes: 1. Operation of this device above any one of these parameters may cause permanent damage.2. Assuming DC quiescent conditions. 3. Board (package belly) temperature TB is 25*C. Derate 33.4mW/*C for TB > 144 *C.4. Channel-to-board thermal resistance measured using 150*C Liquid Crystal Measurement method. ParameterSymbolUnitsAbsolute Maximum Drain Source Voltage > [2] V > DS V3.62G Drain Current > [2] I > DS_2G mA305G Drain Current > [2] I > DS_5G mA45Total Power Dissipation > [3] PdissW0.2RF Input PowerPin max.dBm5 Channel TemperatureT > CH *C150Storage TemperatureT > STG *C-65 to...

[7,8] TA = 25 *C, DC bias for RF parameter is Vds = 3.3V (unless otherwise specied) > 2.45GHz (Typ.) 25 DegProduction Max Parameter and Test ConditionSymbolUnitsProduction Min > [7,8] [7,8] GainGdB1516.718.5Noise FigureNFdB-0.81.5 Gain FlatnessGfdB0.1 Input 1dB Compressed PowerIP1dBdBm- 5.8 Input 3rd Order Intercept Point IIP3dBm6.1 Input Return LossS11dB- 10.4 Output Return LossS22dB- 16.8 Rejection, out-of-band (refer to the mid-band level (2.45GHz) 1 GHzdB26 1.75 GHzdB7.8 2 GHzdB4.2 3.2 GHzdB8.5 4 GHzdB24.6 Supply CurrentIdsmA111521 Shutdown Current @ V_LNA_24_ON = 0VIshuA1.5 Supply...

Part NumberNo. of DevicesContainer ALM-2812-TR1G300013 Reel ALM-2812-BLKG100antistatic bag >

For product information and a complete list of distributors, please go to our web site: > Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies, Limited in the United States and other countries.Data subject to change. Copyright 2006 Avago Technologies Limited. All rights reserved. AV02-0383EN - September 11, 2007 >
