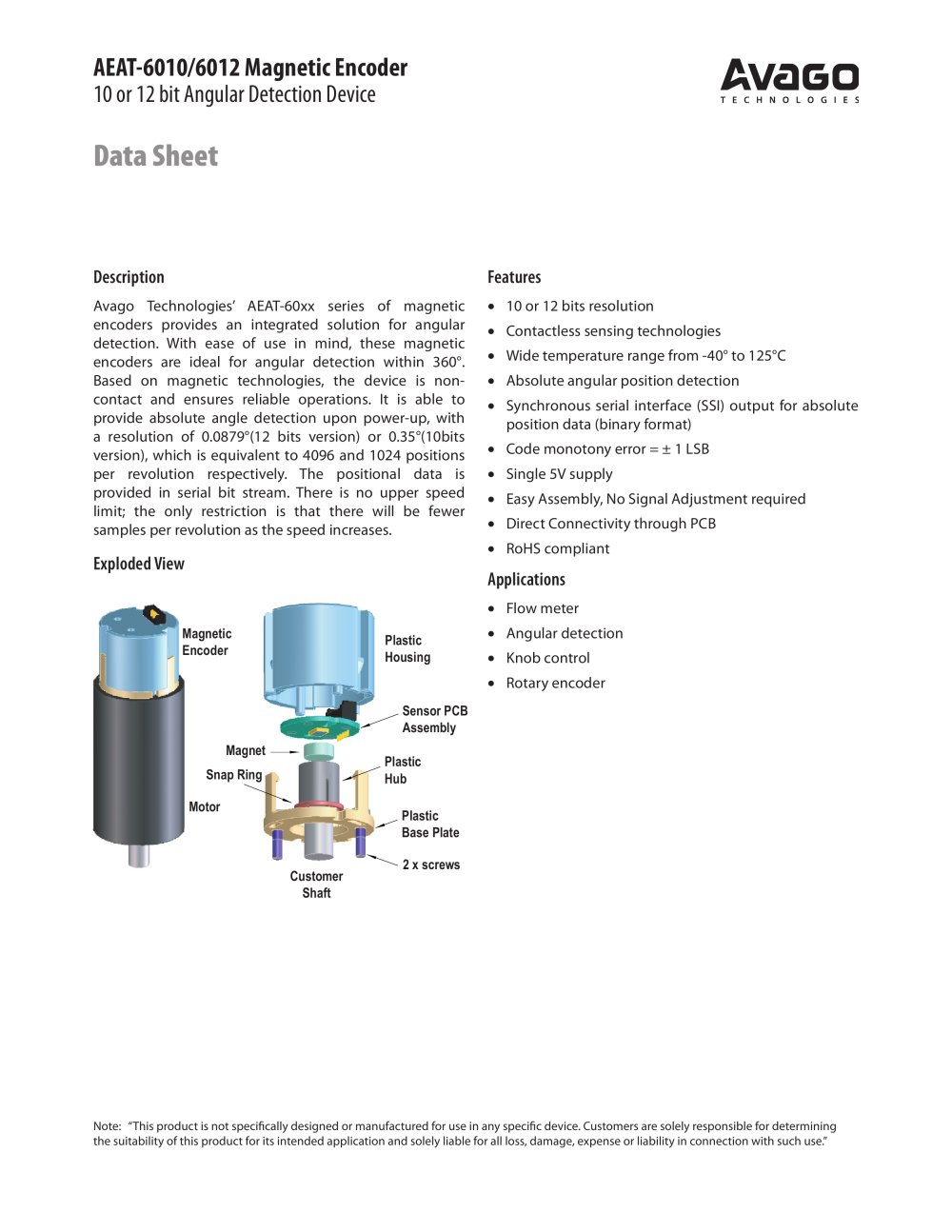

Description
Avago Technologies’ AEAT-60xx series of magnetic encoders offers a comprehensive solution for angular detection, suitable for 360° applications. These encoders utilize non-contact magnetic technologies, ensuring reliable operation and absolute angle detection upon power-up. The 12-bit version provides a resolution of 0.0879° (4096 positions per revolution), while the 10-bit version offers 0.35° (1024 positions per revolution). Positional data is output in a serial bit stream, with no upper speed limit, although higher speeds result in fewer samples per revolution.

Features

• 10 or 12 bits resolution
• Contactless sensing technologies
• Wide operating temperature range: -40° to 125°C
• Absolute angular position detection
• Synchronous serial interface (SSI) output
• Code monotony error: ± 1 LSB
• Single 5V supply
• Easy assembly with no signal adjustment required
• Direct PCB connectivity
• RoHS compliant

Applications

• Flow meters
• Angular detection
• Knob control
• Rotary encoders

Device Selection Guide
The AEAT-6012 offers 12-bit resolution, while the AEAT-6010 provides 10-bit resolution. Both operate within a temperature range of -40 to +125°C and require a 5V DC supply.

Absolute Maximum Ratings

• DC Supply Voltage: -0.3 to +7 V
• Input Voltage: -0.3 to VDD+0.3 V
• Storage Temperature: -40 to 125 °C

Recommended Operating Conditions

• DC Supply Voltage: 4.5 to 5.5 V
• Ambient Temperature: -40 to +125 °C
• Maximum Read-out Frequency: ≤1 MHz

DC Characteristics

• Supply Current: 16 to 20 mA
• Output High Voltage: VDD-0.5 V
• Output Low Voltage: VSS+0.4 V
• Output Current: 4 mA
• Input High Voltage: 0.7*VDD
• Input Low Voltage: 0.3*VDD

Timing Characteristics

• Data output activated: 100 ns
• First data shifted to output register: 500 ns
• Start of data output: 500 ns
• Data output valid: 375 ns
• Data output tristate: 100 ns
• Pulse width of CSn: 500 ns
• Sampling rate for absolute output: 9.9 to 10.94 kHz

Mechanical Parameters

• Operating Temperature: -40 to +125 °C
• Shaft axial play: ± 0.08 mm
• Shaft TIR: 0.05 mm
• Mechanical speed: 12,000 rpm
• Shaft diameter: 6 mm
• Moment inertia: 0.104 g-cm²
• Shaft length: 8.5 ±1.0 mm
• Mounting screw size: M2 x 0.4 x 4 mm
• Recommended screw torque: 0.6 lb.inch
• Encoder base plate thickness: 2 mm

Electrical Connections

• Pin 1: VDD - 5V Supply Voltage
• Pin 2: CSn - Chip Select
• Pin 3: VSS - Supply Ground
• Pin 4: CLK - Serial Clock
• Pin 5: DO - Serial Data Output

For further product information and distributor details, visit the Avago Technologies website.
