TSL Super Loaders

Product catalog summary

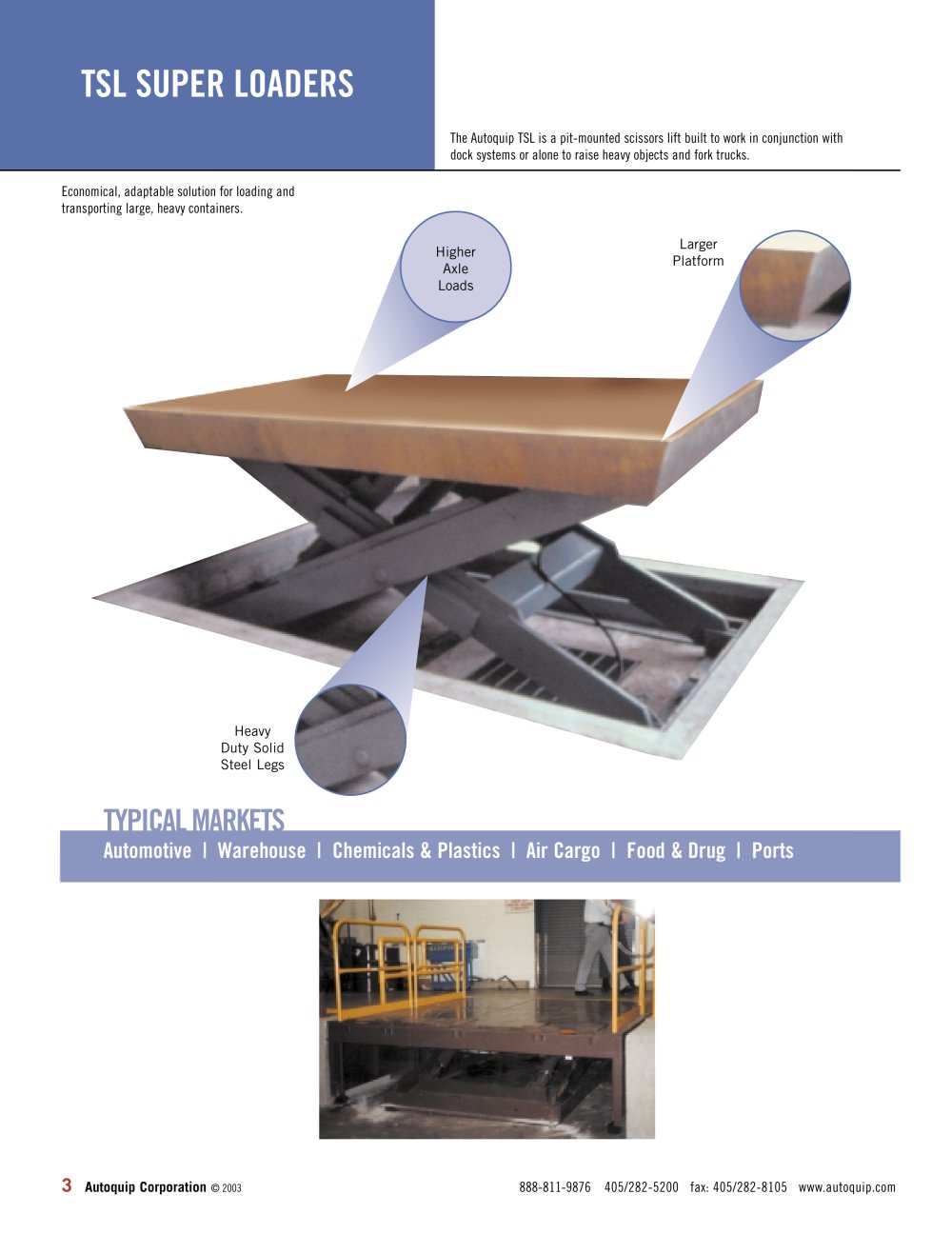

Overview: The Autoquip TSL is a pit-mounted scissors lift designed for use with dock systems or independently to elevate heavy objects and fork trucks. It offers an economical and adaptable solution for loading and transporting large, heavy containers.

Typical Markets: Automotive, Warehouse, Chemicals & Plastics, Air Cargo, Food & Drug, Ports.

Key Features:

Lubricated-for-life composite bearings on all pivot points.
Solid steel legs and a platform surface made of 4-way floor plate.
Turned, ground, polished, and hard-chromed axle pins.
Double-wire braided hydraulic hoses and velocity fuses on cylinders.
Heavy-duty 5hp motor with prewired UL labeled and approved controls.
Factory tested to 110% of capacity with a one-piece hydraulic valve block.
Beveled toe guards, 4” diameter bore rams with chrome plated rods, and platform gibbed rollers.
Removable 48” high handrails and hardened steel rollers.
12” x 72” throwover bridge with lifting chain and 24 VAC controls.
NEMA 4 wall mount pushbutton with 20’ standard cord.

Options:

Manual Bridge Winch and powered hydraulic bridges.
4'' wheel curbs for platform edges and 115 VAC controls.
Remote 230VAC single phase power unit.

Benefits:

Maintenance-free bearings and minimal platform deflection.
Perfect leg alignment under eccentric loads and extended bearing life.
High efficiency motor and easy servicing of hydraulic components.
Minimal free fall in case of severed hose for safety.

Custom Designs: Autoquip offers customized engineering designs and computerized engineering services for unique TSL applications.

Power Supply: Remote heavy-duty vertical style power unit with a fan-cooled 5 hp 3-phase, 60 hertz motor, hydraulic reservoir, and Deltatrol valve. Compatible with various voltages.

Specifications:

Capacities range from 12,500 to 20,000 lbs with a travel height up to 60''.
Platform sizes vary, with axle load capacities specified for different positions.
Standard power unit dimensions and shipping weights are provided for each model.

Catalog excerpts

transporting large, heavy containers. Heavy Duty Solid Steel Legs Larger Platform 3 Autoquip Corporation © 2003 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip. TYPICAL MARKETS Automotive | Warehouse | Chemicals & Plastics | Air Cargo | Food & Drug | Ports Higher Axle Loads

Open the catalog to page 1

· Velocity fuses on cylinders · Heavy duty 5hp motor · Prewired UL labeled and approved controls, ship loose · Factory tested to 110% of capacity · One-Piece hydraulic valve block · Beveled toe guards · 4” diameter bore rams with chrome plated rods to prevent rusting · Platform gibbed rollers · Roller end of legs are guided by platform runner bars · Removable 48” high handrails · Hardened steel rollers · 12” x 72” throwover bridge with lifting chain · 24 VAC controls (std) · NEMA 4 wall mount pushbutton with 20’ std. cord (shipped loose) OPTIONS · Manual Bridge Winch · Powered hydraulic bridges...

Open the catalog to page 2
