Truck Levelers
Truck Levelers
- Available in surface- and pit-mounted versions.
- Low 5-inch silhouette for surface-mounted units.
- Accordion skirting for surface-mounted and solid steel skirts for pit-mounted units.
- Chrome-plated rods to prevent rusting and a 5 hp motor.
- Double-wire braided hoses and a one-piece solid steel design for surface mounts.
- UL approved controls and velocity fuses on cylinders.
- Standard wheel locator for pit-mounted units, optional for surface-mounted.
- Surface-mounted units have platform sizes ranging from 14x10 to 20x10 feet, with a capacity of up to 60,000 pounds.
- Pit-mounted units offer similar capacities with additional options for platform lengths and wheel locators.
- Standard motor power is 5 hp, with options for different power supplies.
- Increased dock productivity and minimal platform deflection.
- Safety features include zero free fall in case of hose severance and extended hose life.
- Easy access to hydraulic and electrical components for servicing.
- Custom designs available to accommodate specific installation variables.
- Surface-mounted units can have longer platforms and increased ramp lengths.
- Pit-mounted units can include dock edge throwover bridges and full-length wheel locators.
- Weather-proof control stations available for both types.
Catalog excerpts

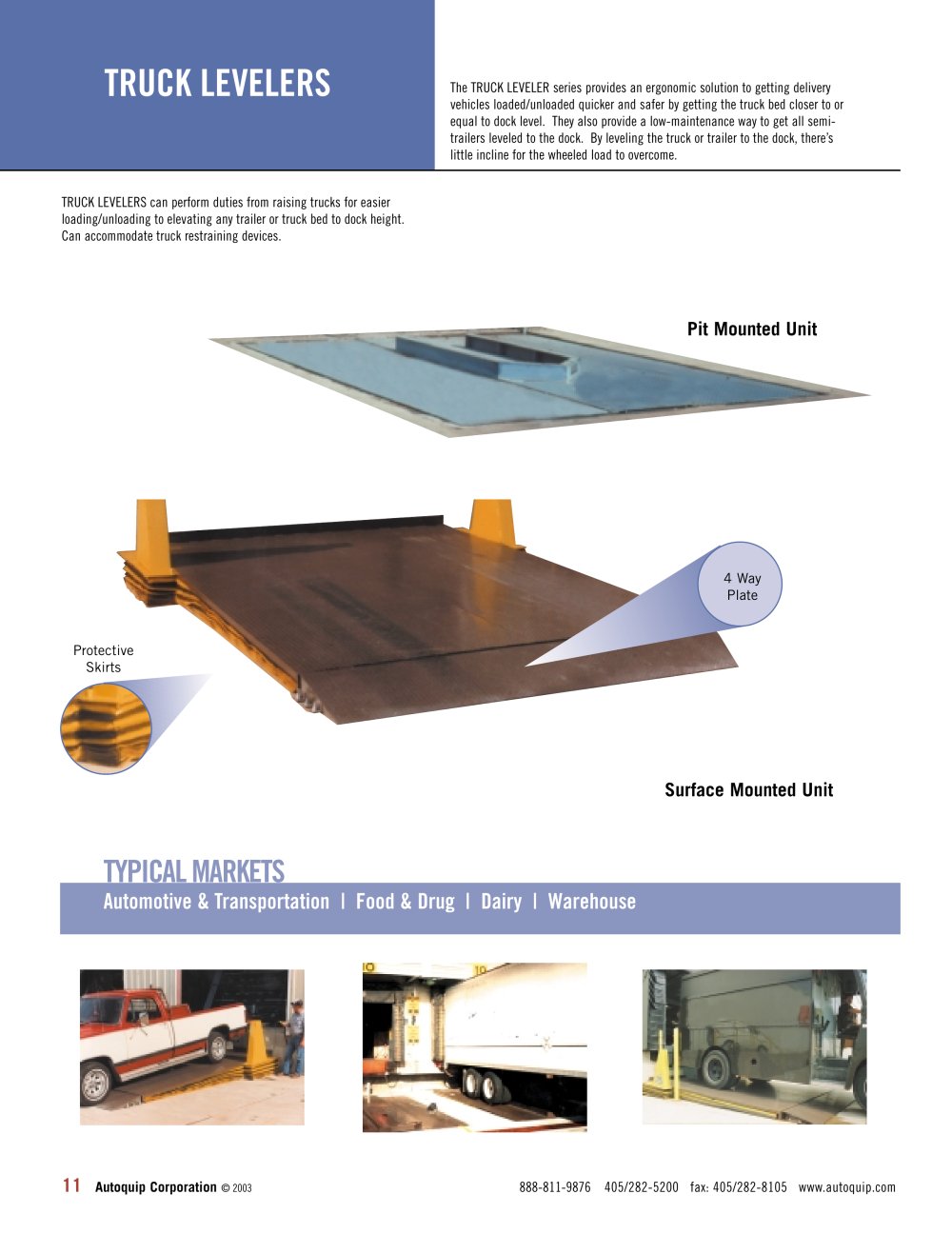

loading/unloading to elevating any trailer or truck bed to dock height. Can accommodate truck restraining devices. Protective Skirts Pit Mounted Unit Surface Mounted Unit 11 Autoquip Corporation © 2003 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip. TYPICAL MARKETS Automotive & Transportation | Food & Drug | Dairy | Warehouse 4 Way Plate
Open the catalog to page 1
SPECIFICATIONS & PIT DIMENSIONS: Pit Mounted · Chrome-plated rods to prevent rusting · 5 hp motor · Double-wire braided hoses · One-piece solid steel design (surface mount) · Platform surface constructed of 4-way tread plate · 24” approach ramp (surface-mounted only) · UL approved and labeled controls, ship loose · Velocity fuses on cylinders · Wheel locator standard for pit-mounted, (optional on surface-mounted) OPTIONS Surface-Mounted · Longer platforms for special applications. · Increased lowered height and ramp length. · Shallow pit version available. · Weather-proof key operated or key...
