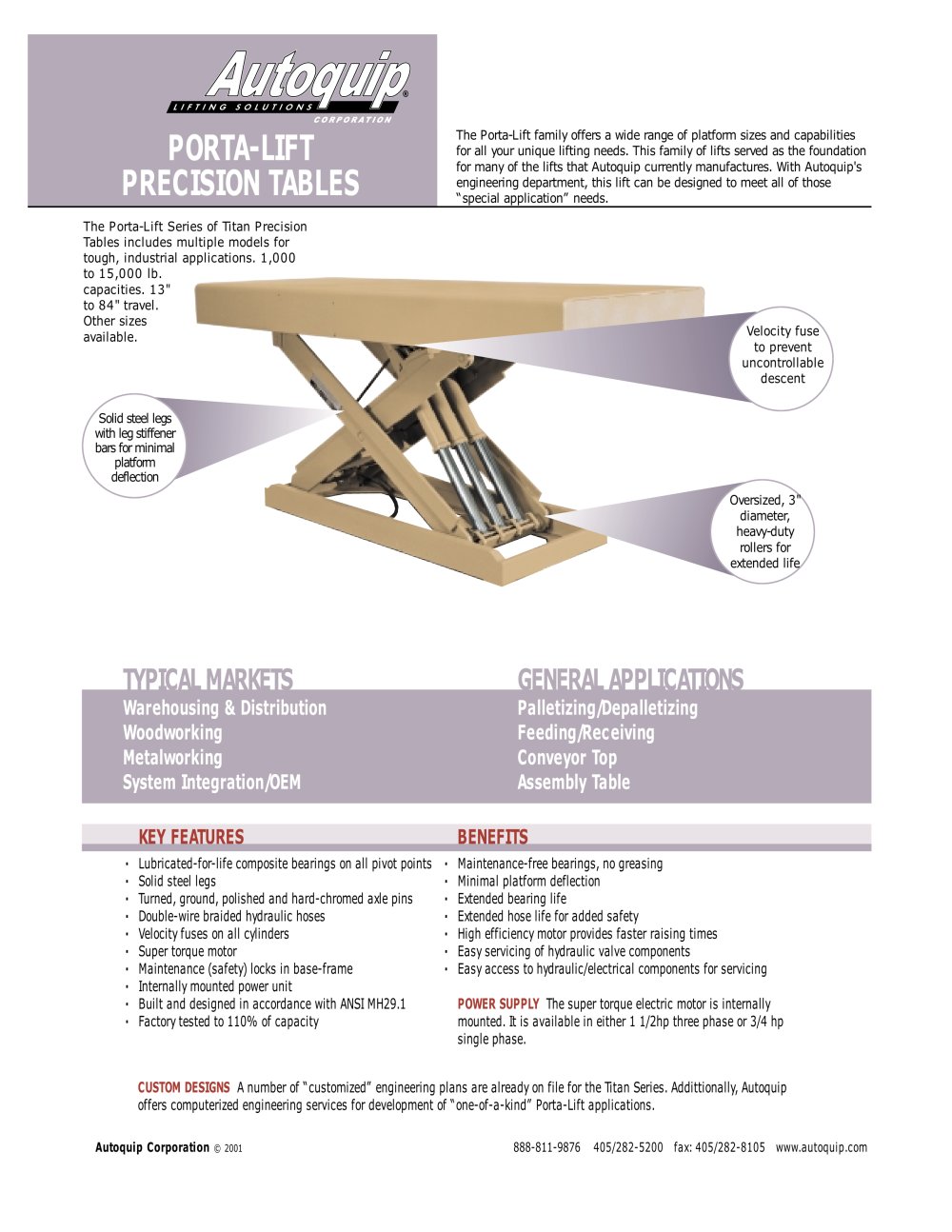

KEY FEATURES · Lubricated-for-life composite bearings on all pivot points · Solid steel legs · Turned, ground, polished and hard-chromed axle pins · Double-wire braided hydraulic hoses · Velocity fuses on all cylinders · Super torque motor · Maintenance (safety) locks in base-frame · Internally mounted power unit · Built and designed in accordance with ANSI MH29.1 · Factory tested to 110% of capacity Autoquip Corporation © 2001 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com BENEFITS · Maintenance-free bearings, no greasing · Minimal platform deflection · Extended bearing life · Extended hose life for added safety · High efficiency motor provides faster raising times · Easy servicing of hydraulic valve components · Easy access to hydraulic/electrical components for servicing POWER SUPPLY The super torque electric motor is internally mounted. It is available in either 1 1/2hp three phase or 3/4 hp single phase. The Porta-Lift family offers a wide range of platform sizes and capabilities for all your unique lifting needs. This family of lifts served as the foundation for many of the lifts that Autoquip currently manufactures. With Autoquip's engineering department, this lift can be designed to meet all of those “special application” needs. The Porta-Lift Series of Titan Precision Tables includes multiple models for tough, industrial applications. 1,000 to 15,000 lb. capacities. 13" to 84" travel. Other sizes available. PORTA-LIFT PRECISION TABLES TYPICAL MARKETS Warehousing & Distribution Woodworking Metalworking System Integration/OEM GENERAL APPLICATIONS Palletizing/Depalletizing Feeding/Receiving Conveyor Top Assembly Table Oversized, 3" diameter, heavy-duty rollers for extended life Velocity fuse to prevent uncontrollable descent Solid steel legs with leg stiffener bars for minimal platform deflection CUSTOM DESIGNS A number of “customized” engineering plans are already on file for the Titan Series. Addittionally, Autoquip offers computerized engineering services for development of “one-of-a-kind” Porta-Lift applications.
