Ram Lift

Product catalog summary

Overview: Autoquip Corporation specializes in ram lifts, which are used when scissors lifts are not suitable. These lifts are designed for handling heavy and awkward loads, reaching heights where scissors lifts may become unstable. They are customizable, with minimal moving parts, and offer flexibility in platform size, travel, and capacity. Typically requiring a pit, they are often permanent installations ideal for concentrated, rolling loads.

Applications: Ram lifts are versatile, used in aerospace, automotive, transportation, government, and system integrator/OEM markets. They serve various applications such as maintenance tables, dock operations, conveyors, and feeding/receiving tasks.

Key Features: The platform ram lift features include a single moving part, fluid prison seal on the ram, wear-proof bearings, non-rotator design, low-pressure system, and hard-piped hydraulics. The platform is constructed from a 4-way tread plate.

Benefits: These lifts offer maintenance-free bearings, fractional deflection, extended bearing life, and are ideal for eccentric loads.

Power Supply: The power unit includes a heavy-duty motor, hydraulic pump, check valve, oil reservoir, lowering valve, and suction strainers. Motors are 3-phase and operate on various voltages (208 to 480 volts).

Custom Designs: Autoquip provides customized engineering plans and computerized engineering services for unique applications.

Specifications: Capacities range from 6,000 to 30,000 lbs with travel up to 60 inches. Platform sizes vary, with lifting capacities and axle loads specified for different configurations. Raising times and motor horsepower are detailed for standard and optional motors.

Selection Charts: The document includes selection charts for single and double ram configurations, detailing platform sizes, lifting capacities, axle loads, and shipping weights.

Catalog excerpts

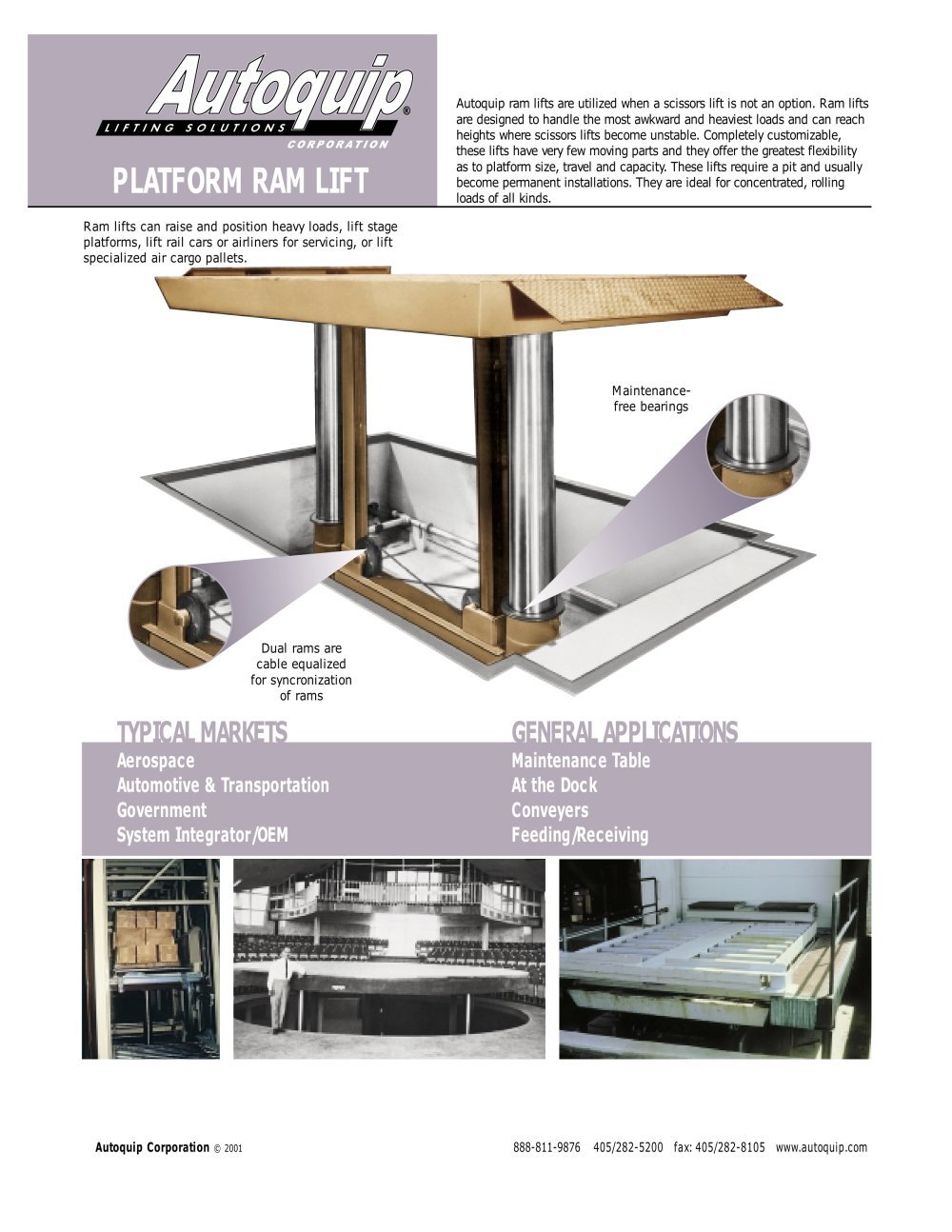

Autoquip Corporation © 2001 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip.com Autoquip ram lifts are utilized when a scissors lift is not an option. Ram lifts are designed to handle the most awkward and heaviest loads and can reach heights where scissors lifts become unstable. Completely customizable, these lifts have very few moving parts and they offer the greatest flexibility as to platform size, travel and capacity. These lifts require a pit and usually become permanent installations. They are ideal for concentrated, rolling loads of all kinds. Ram lifts can raise and position heavy loads, lift stage platforms, lift rail cars or airliners for servicing, or lift specialized air cargo pallets. PLATFORM RAM LIFT TYPICAL MARKETS Aerospace Automotive & Transportation Government System Integrator/OEM GENERAL APPLICATIONS Maintenance Table At the Dock Conveyers Feeding/Receiving Maintenancefree bearings Dual rams are cable equalized for syncronization of rams
