PLT AND PLT-C SCISSORS LIFTS

Product catalog summary

Overview: The PLT and PLT-C dock lifts are designed for new construction, offering durability and versatility for medium to heavy capacity applications. They are suitable for pit or surface mounting, enhancing workflow efficiency in loading/unloading trucks and moving wheeled loads between levels.

Specifications: Capacities range from 5,000 to 10,000 lbs with a travel height of 60 inches. The lifts feature solid steel legs, lubricated-for-life bearings, and a platform surface made of 4-way tread plate. They are built according to ANSI MH29.1 standards and factory tested to 110% of capacity.

Key Features: The lifts include hardened steel rollers, removable handrails, velocity fuses on cylinders, and a power unit suitable for floor or wall mounting. They also have maintenance-free bearings and are UL labeled and approved.

Options: Platform sizes vary with options for manual or powered hydraulic bridges. Remote power units are available, and oversized platforms come with derated axle load ratings.

Benefits: The lifts offer minimal platform deflection, extended bearing and hose life, and easy servicing of hydraulic components. Safety features include free fall arrest in case of hose severance.

Custom Designs: Autoquip provides custom engineering services for unique PLT applications, with several designs already on file.

Power Supply: The lifts operate with a 5 hp electric motor compatible with various 3-phase voltages. The PLT-C model features a super torque motor for intermittent duty, with differences in standard up speed due to higher GPM pumps in PLT units.

Catalog excerpts

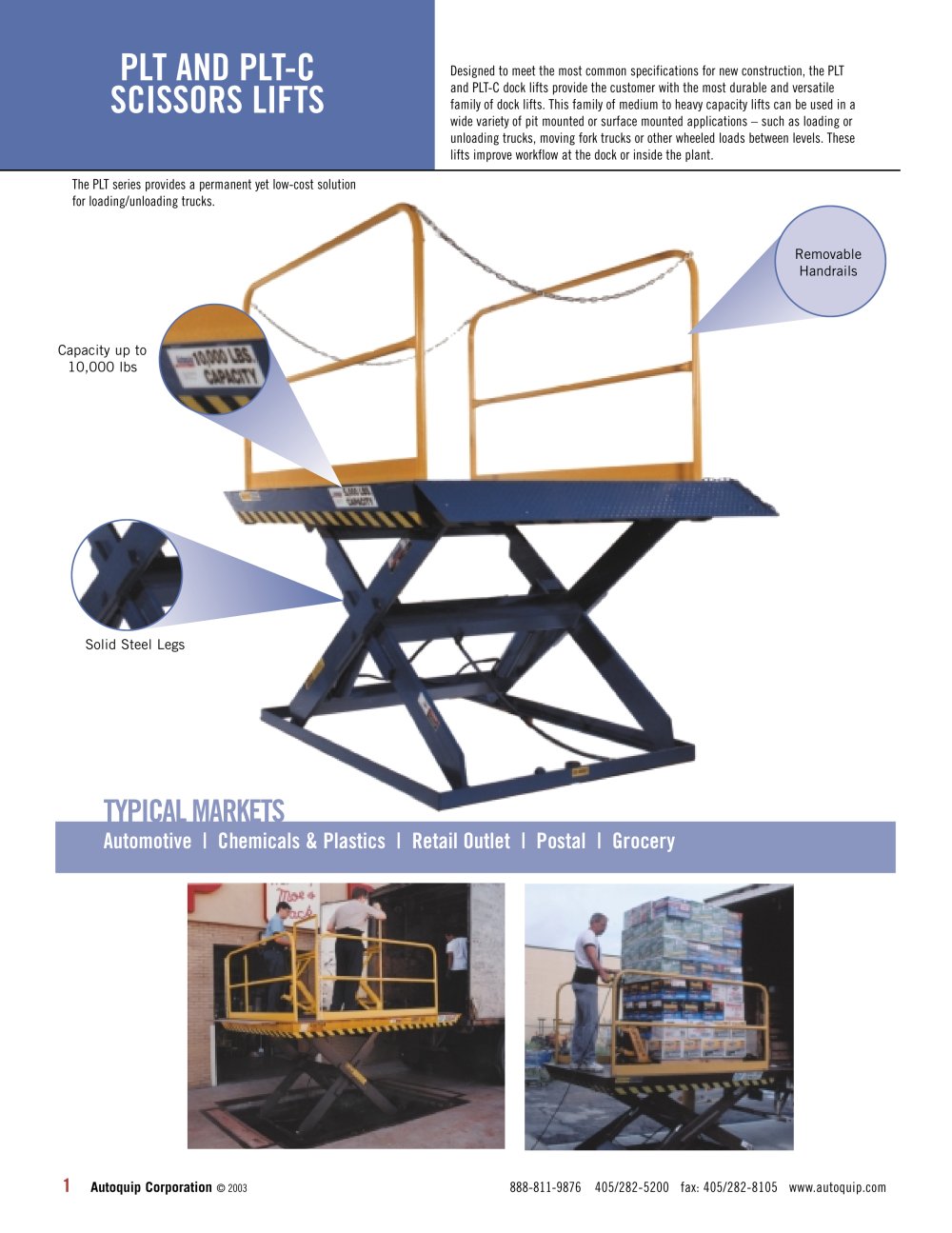

Capacity up to 10,000 lbs Solid Steel Legs 1 Autoquip Corporation © 2003 888-811-9876 405/282-5200 fax: 405/282-8105 www.autoquip. TYPICAL MARKETS Automotive | Chemicals & Plastics | Retail Outlet | Postal | Grocery Removable Handrails

Open the catalog to page 1

PLT SCISSORS LIFT SPECIFICATIONS: Capacities – 5,000 to 10,000 lbs. - Travel Height of 60'' Axle Load Capacity Over Bridge End (pounds) 3,000 3,000 6,400 6,400 8,000 3,000 3,000 6,400 6,400 8,000 Axle Load Capacity Opposite Bridge End (pounds) 3,000 3,000 6,400 6,400 8,000 3,000 3,000 6,400 6,400 8,000 Axle Load Capacity Over Sides (pounds) 2,500 2,500 6,400 6,400 6,400 2,500 2,500 6,400 6,400 6,400 Capacity (pounds) 5,000 6,000 7,000 8,000 10,000 5,000 6,000 7,000 8,000 10,000 Platform Sizes (inches) 72 x 96 72 x 96 72 x 100 72 x 100 72 x 100 72 x 96 72 x 96 72 x 100 72 x 100 72 x 100 Baseframe...

Open the catalog to page 2
